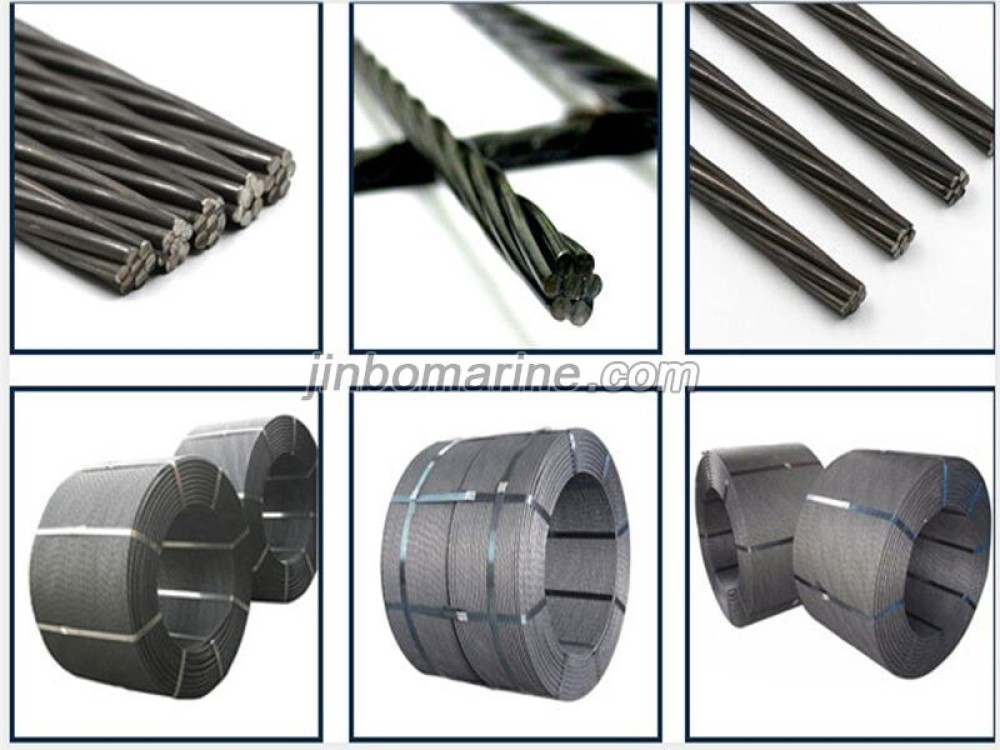

6X19S+FC Steel Wire Rope

Request a Quote Not what you need, please send your RFQs via Email.

Details

Wire Rope Definition

a. Wires: steel wires for wire ropes are normally made of non-alloy carbon steel with a carbon content of 0.4 to 0.95%. The tensile forces and to run over sheaves with relatively small diameters.
b. Strand: the strand is a component of wire rope usually consisting of an assembly of wires of appropriate diamsions laid helically in one or more layers around a central element.
c. Core: the core is the central element, of fiber or steel, around which are laid helically the outer strands of wire rope. The core provides proper support for the strands under normal bending and loading conditions.

d. Wire rope is several strands of metal wire twisted into a helix forming a composite "rope", in a pattern known as "laid rope". Larger diameter wire rope consists of multiple strands.

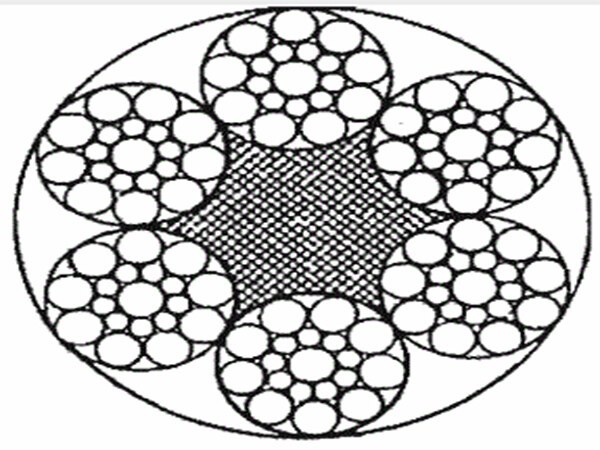

6X19S+FC Steel Wire Rope Construction

6X19S+FC Steel Wire Rope Parameters

Diameter
MM
Approx.Weight Minimun Breaking Load of Rope(KN)
Kg/100m 1570Mpa 1670Mpa
NF SF IWR FC IWR FC IWR
12 53.1 51.8 58.4 74.6 80.5 79.4 85.6
13 62.3 60.8 68.5 87.6 94.5 93.1 100
14 72.2 70.5 79.5 102 110 108 117
16 94.4 92.1 104 133 143 141 152
18 119 117 131 168 181 179 193
20 147 144 162 207 224 220 238
22 178 174 196 251 271 267 288
24 212 207 234 298 322 317 342
26 249 243 274 350 378 373 402
28 289 282 318 406 438 432 466
30 332 324 365 466 503 496 535
32 377 369 415 531 572 564 609
34 426 416 469 599 646 637 687
36 478 466 525 671 724 714 770
38 532 520 585 748 807 796 858
40 590 576 649 829 894 882 951

Diameter
MM
Minimun Breaking Load of Rope(KN)
1770Mpa 1870Mpa 1960Mpa
FC IWR FC IWR FC IWR
12 84.1 90.7 88.9 95.9 93.1 100
13 98.7 106 104 113 109 118
14 114 124 121 130 127 137
16 150 161 158 170 166 179
18 189 204 200 216 210 226
20 234 252 247 266 259 279
22 283 304 299 322 313 338
24 336 363 355 383 373 402
26 395 426 417 450 437 472
28 458 494 484 522 507 547
30 526 567 555 559 582 628
32 598 645 632 682 662 715
34 675 728 713 770 748 807
36 757 817 800 863 838 904
38 843 910 891 961 934 1010
40 935 1010 987 1070 1030 1120

Applications:

Mine hoisting, blast furnace hoisting, large casting, oil drilling, forestry and marine industries,all kinds ofelevator, large hoisting, ground cable car ships and offshore facilities, cable railing.

How To Choose Material:

1.stainless steel :
providing good corrosion resistance and strength comparable to galvanized carbon steel grades.
2.galvanized steel:
Zinc coated carbon steel offers some corrosion resistance. It remains ductile over long periods of working. Usually higher break strengths than stainless steels.
