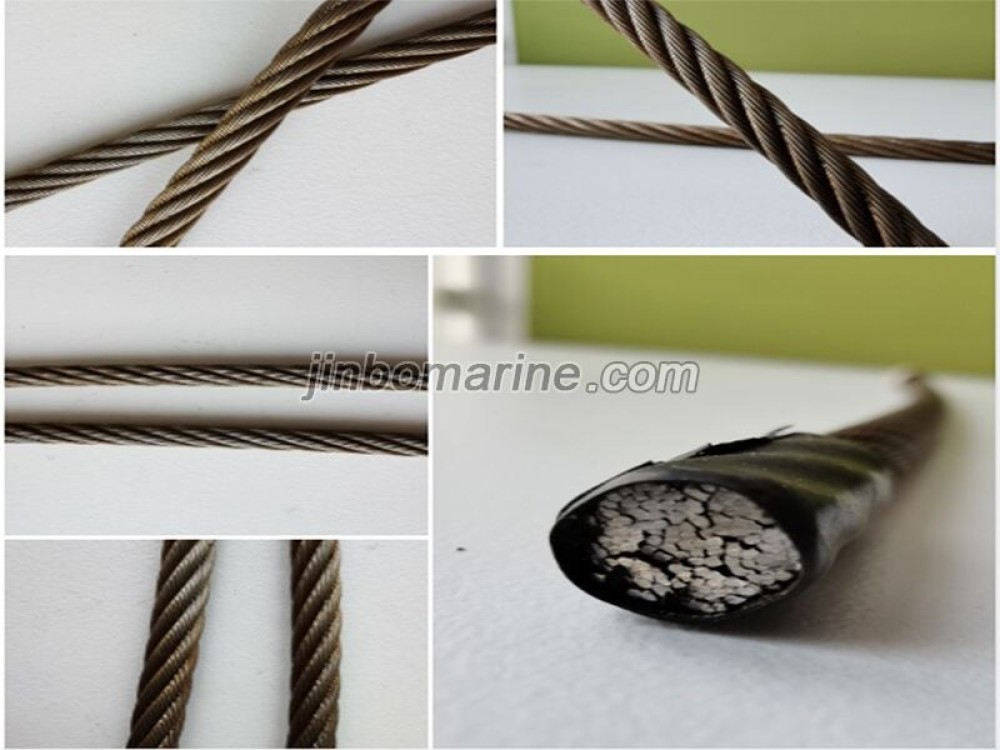

6X36WS+FC Steel Wire Rope

Request a Quote Not what you need, please send your RFQs via Email.

Details

Wire Rope Definition

a. Wires: steel wires for wire ropes are normally made of non-alloy carbon steel with a carbon content of 0.4 to 0.95%. The tensile forces and to run over sheaves with relatively small diameters.
b. Strand: the strand is a component of wire rope usually consisting of an assembly of wires of appropriate diamsions laid helically in one or more layers around a central element.
c. Core: the core is the central element, of fiber or steel, around which are laid helically the outer strands of wire rope. The core provides proper support for the strands under normal bending and loading conditions.

d. Wire rope is several strands of metal wire twisted into a helix forming a composite "rope", in a pattern known as "laid rope". Larger diameter wire rope consists of multiple strands.

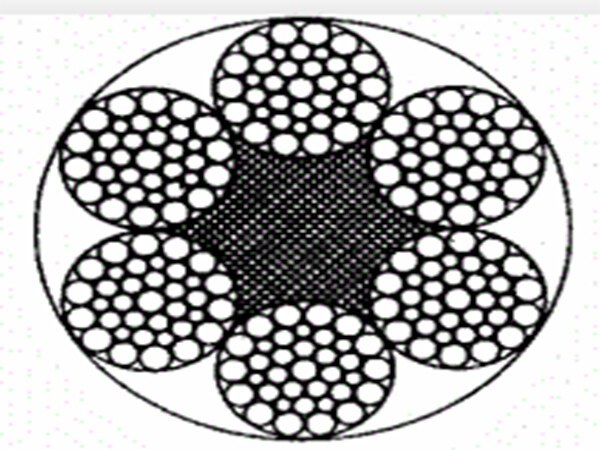

6X36WS+FC Steel Wire Rope Construction

6X36WS+FC Steel Wire Rope Parameters

Diameter
MM
Approx.Weight Minimun Breaking Load of Rope(KN)
Kg/100m 1570Mpa 1670Mpa
FC IWR FC IWR FC IWR
60 1380 1500 1870 2010 1980 2140
62 1470 1610 1990 2150 2120 2290
64 1570 1710 2120 2290 2260 2440
66 1670 1820 2260 2430 2460 2590
68 1770 1930 2400 2580 2550 2750
70 1880 2050 2540 2740 2700 2910
72 1990 2170 2690 2900 2860 3080
74 2100 2290 2840 3060 3020 3260
76 2210 2410 2990 3230 3180 3430
78 2330 2540 3150 3400 3350 3620
80 2450 2680 3320 3580 3530 3800
82 2580 2810 3480 3760 3710 4000
84 2700 2950 3660 3940 3890 4190
86 2830 3090 3830 4130 4080 4400
88 2970 3240 4010 4380 4270 4600
90 3100 3390 4200 4530 4460 4820

Diameter
MM
Minimun Breaking Load of Rope(KN)
1770Mpa 1870Mpa 1960Mpa
FC IWR FC IWR FC IWR
60 2100 2270 2220 2400 2330 2510
62 2250 2420 2370 2560 2490 2680
64 2390 2580 2530 2730 2650 2860
66 2540 2740 2690 2900 2820 3040
68 2700 2910 2850 3080 2990 3230
70 2860 3090 3020 3260 3170 3420
72 3030 3270 3200 3450 3350 3620
74 3200 3450 3380 3650 3540 3820
76 3370 3640 3560 3850 3740 4030
78 3550 3830 3750 4050 3949 4250
80 3740 4030 3950 4260 4140 4470
82 3930 4240 4150 4480 4350 4690
84 4120 4450 4350 4700 4560 4920
86 4320 4660 4560 4920 4780 5160
88 4520 4880 4780 5160 5010 5400
90 4730 5100 5000 5390 5240 5650

Applications

Mine hoisting, blast furnace hoisting, large casting, oil drilling, forestry and marine industries,all kinds ofelevator, large hoisting, ground cable car ships and offshore facilities, cable railing.

How To Choose Material

1.stainless steel :
providing good corrosion resistance and strength comparable to galvanized carbon steel grades.
2.galvanized steel:

Zinc coated carbon steel offers some corrosion resistance. It remains ductile over long periods of working. Usually higher break strengths than stainless steels.

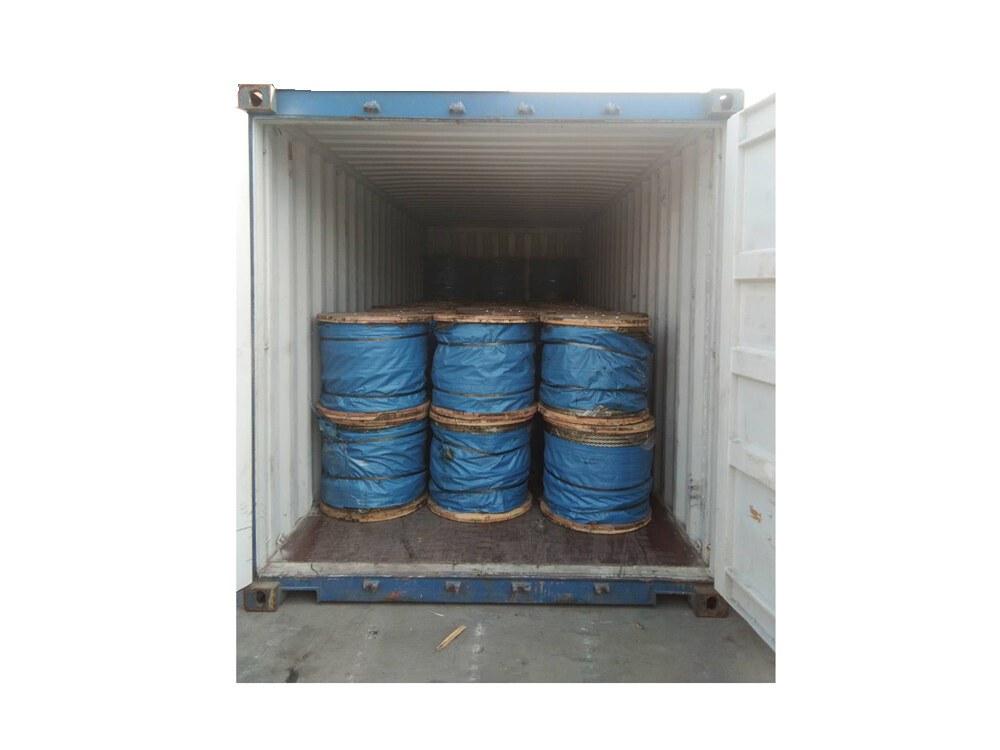

Packaging
