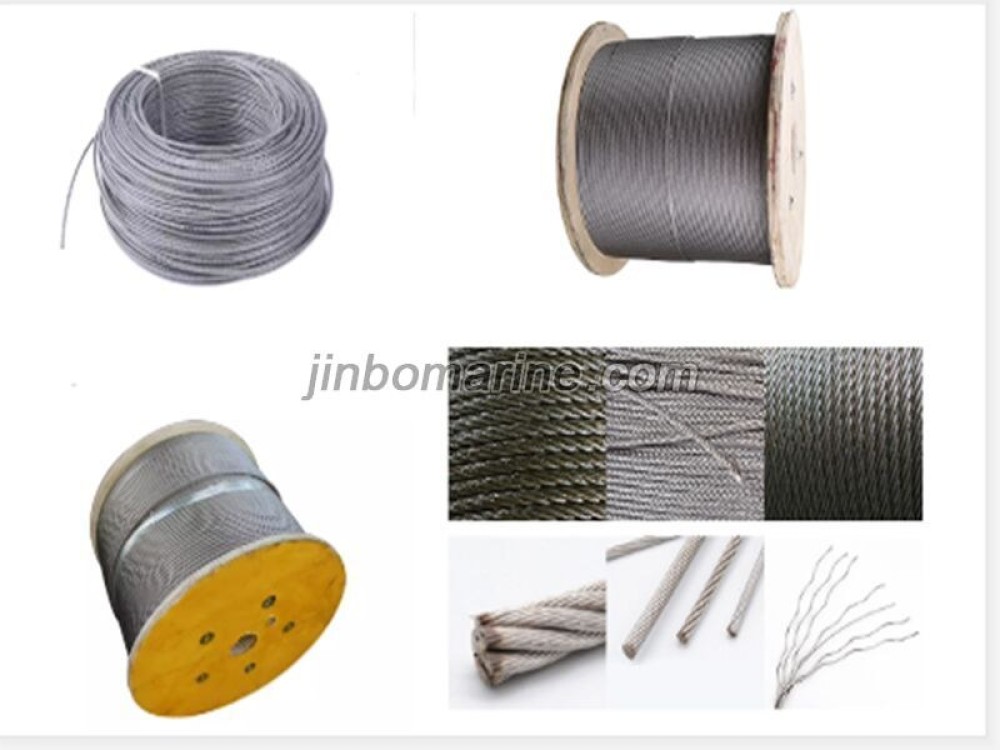

6X37S+FC Steel Wire Rope

Request a Quote Not what you need, please send your RFQs via Email.

Details

Wire Rope Definition

a. Wires: steel wires for wire ropes are normally made of non-alloy carbon steel with a carbon content of 0.4 to 0.95%. The tensile forces and to run over sheaves with relatively small diameters.
b. Strand: the strand is a component of wire rope usually consisting of an assembly of wires of appropriate diamsions laid helically in one or more layers around a central element.
c. Core: the core is the central element, of fiber or steel, around which are laid helically the outer strands of wire rope. The core provides proper support for the strands under normal bending and loading conditions.

d. Wire rope is several strands of metal wire twisted into a helix forming a composite "rope", in a pattern known as "laid rope". Larger diameter wire rope consists of multiple strands.

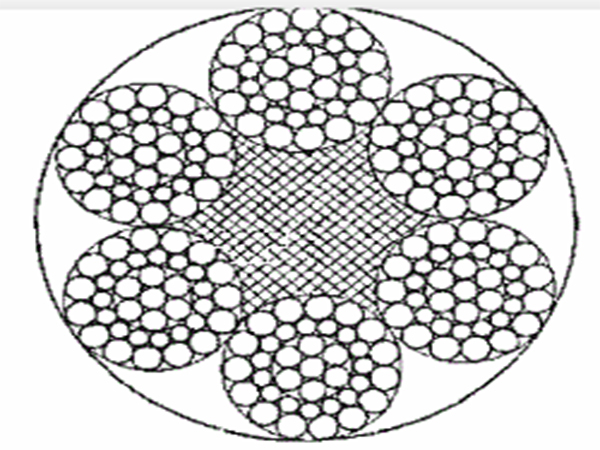

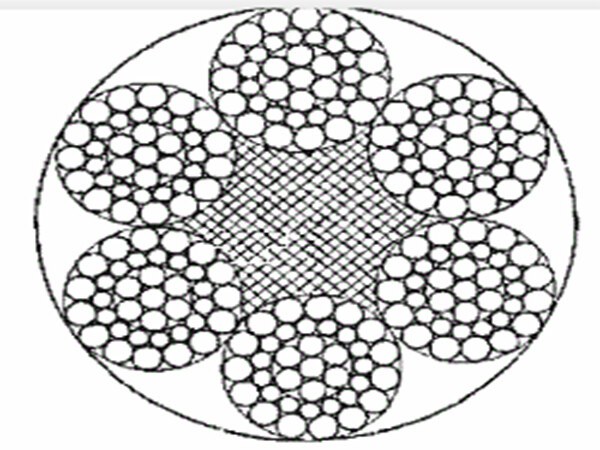

6X37S+FC Steel Wire Rope Construction

6X37S+FC Steel Wire Rope Parameters

Diameter
MM
Approx.Weight Minimun Breaking Load of Rope(KN)
Kg/100m 1570Mpa 1670Mpa
NF SF IWR FC IWR FC IWR
12 57.4 53.4 60.2 74.6 80.5 79.4 85.6
13 64.2 62.7 70.6 87.6 94.5 93.1 100
14 74.5 72.7 81.9 102 110 108 117
16 97.3 95 107 133 143 141 152
18 123 120 135 168 181 179 193
20 152 148 167 207 224 220 238
22 184 180 202 251 271 257 288
24 219 214 241 298 322 317 342
26 257 251 283 350 378 373 402
28 298 291 328 406 438 433 466
30 342 334 376 466 503 496 535
32 389 380 428 531 572 564 609
34 430 429 483 599 646 637 687
36 492 481 542 671 724 714 700
38 549 536 604 748 807 796 858
40 608 594 669 829 894 880 951
42 670 654 737 914 986 972 1050
44 736 718 809 1000 1080 1070 1150
46 804 785 884 1100 1180 1170 1260
48 876 855 963 1190 1290 1270 1370
50 950 928 1040 1300 1400 1380 1490
52 1030 1000 1130 1400 1510 1490 1610
54 1110 1080 1220 1510 1630 1610 1730
56 1190 1160 1310 1620 1750 1730 1860
58 1280 1250 1410 1740 1880 1850 2000
60 1370 1340 1500 1870 2010 1980 2140
62 1460 1430 1610 1990 2150 2120 2290
64 1560 1520 1710 2120 2290 2260 2440

Diameter
MM
Minimun Breaking Load of Rope(KN)
1770Mpa 1870Mpa 1960Mpa
FC IWR FC IWR FC IWR
12 84.1 90.7 88.9 95.9 93.1 100
13 98.7 106 104 113 109 118
14 114 124 121 130 127 137
16 150 161 158 170 166 179
18 189 204 200 216 210 226
20 234 252 247 266 259 279
22 283 305 299 322 313 338
24 336 363 355 383 373 402
26 395 426 417 450 437 472
28 458 494 484 522 507 547
30 526 567 555 599 582 628
32 598 645 632 682 662 715
34 675 728 713 770 748 807
36 757 817 800 863 838 904
38 843 910 891 961 934 1010
40 935 1010 987 1070 1030 1120
42 1030 1110 1090 1170 1140 1230
44 1130 1220 1190 1290 1250 1350
46 1240 1330 1310 1410 1370 1480
48 1350 1450 1420 1530 1490 1610
50 1460 1580 1540 1660 1620 1740
52 1580 1700 1670 1800 1750 1890
54 1700 1840 1800 1940 1890 2030
56 1830 1980 1940 2090 2030 2190
58 1960 2120 2080 2240 2180 2350
60 2100 2270 2220 2400 2330 2510
62 2250 2420 2370 2560 2490 2680
64 2390 2580 2530 2730 2650 2860

Applications

Mine hoisting, blast furnace hoisting, large casting, oil drilling, forestry and marine industries,all kinds ofelevator, large hoisting, ground cable car ships and offshore facilities, cable railing.

How To Choose Material:

1.stainless steel :
providing good corrosion resistance and strength comparable to galvanized carbon steel grades.
2.galvanized steel:

Zinc coated carbon steel offers some corrosion resistance. It remains ductile over long periods of working. Usually higher break strengths than stainless steels.

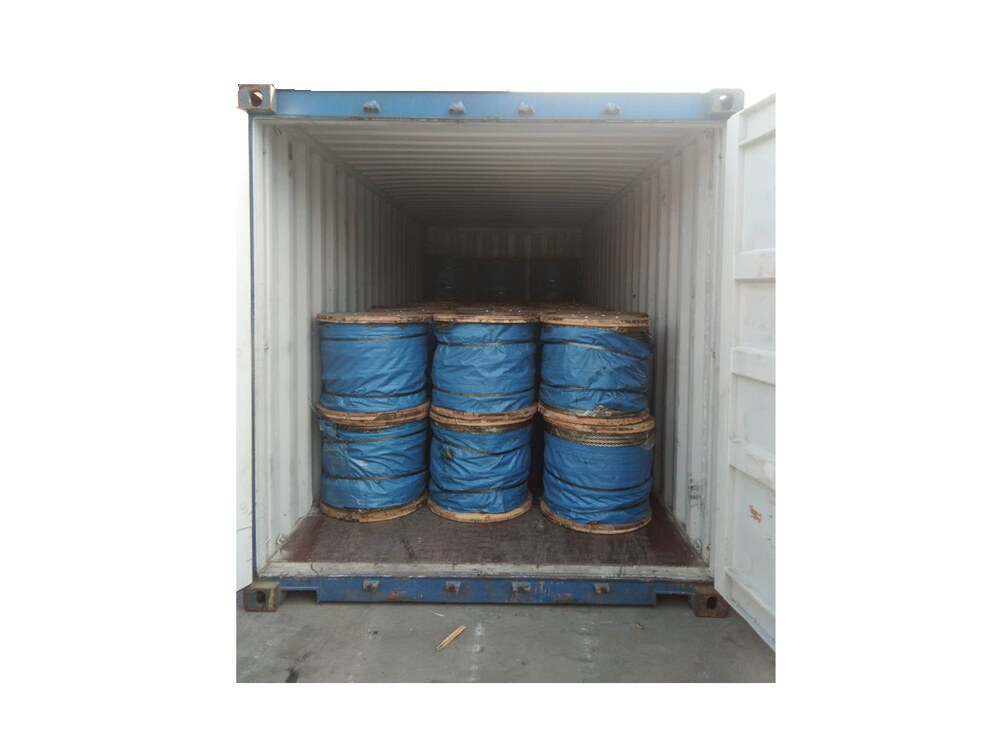

Packaging
