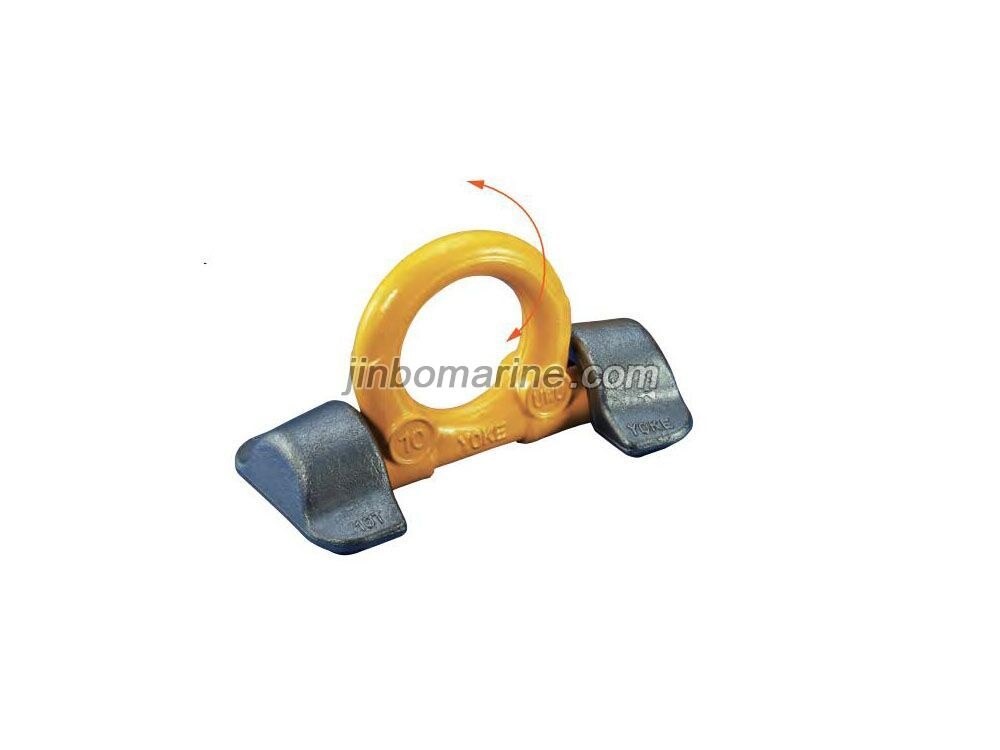

8-082 Yoke Weld Hoist Ring

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

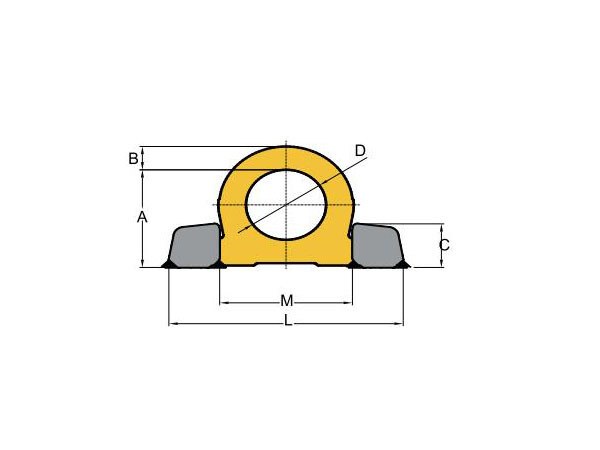

8-082 Yoke Weld Hoist Ring Drawing

8-082 Yoke Weld Hoist Ring Parameters

ITEM NO. WLL/T Weight/kg
8-082-04 4 0.6
8-082-06 6.7 1.5
8-082-10 10 2.4
8-082-16 16 5.5
8-082-30 31.5 15.8
ITEM NO. TECHNICAL PARAMETERS/MM
A B C D E
8-082-04 66 14 30 48 65
8-082-06 85 20 39 60 89
8-082-10 95 21 46 65 100
8-082-16 127 30 57 90 130
8-082-30 178 42 78 130 160
ITEM NO. TECHNICAL PARAMETERS/MM
F L M HV a
8-082-04 70 135 76 5 3
8-082-06 91 171 98 5 3
8-082-10 100 196 106 7 4
8-082-16 136 263 149 8 4
8-082-30 160 365 213 15 4
