BLT086 Angular Contat Bearing Swivels-UU Style
BLT086 Angular Contat Bearing Swivels-UU Style The rotating rings are made of high-strength and high-toughness special alloy steel forging and finishing, all of which are modulated and...
Loading product images...

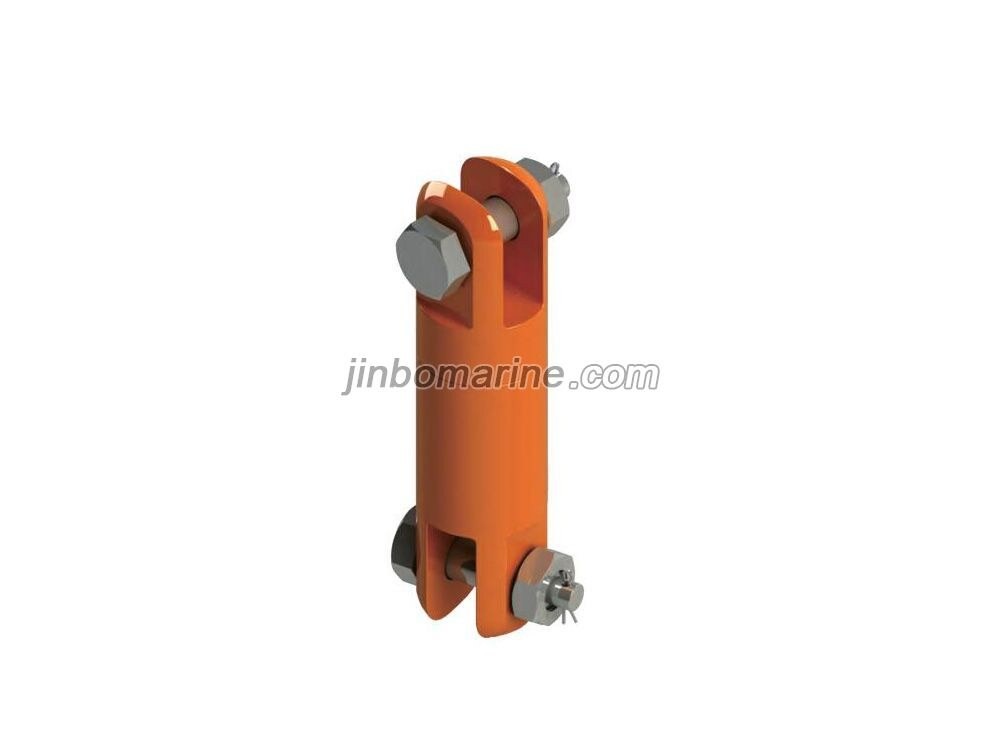

BLT086 Angular Contat Bearing Swivels-UU Style
PDF Datasheet
We can supply according to your requirement.
BLT086 Angular Contat Bearing Swivels-UU Style
The rotating rings are made of high-strength and high-toughness special alloy steel forging and finishing, all of which are modulated and heat treated.
The design safety factor of the rotating ring is 4:1The independent test load should be twice the safe working load when the rotating ring is tested and certified.
The surface of the rotating ring is galvanized or plastic coated, so that the product can have better corrosion resistance and longevity.
The rotating ring is provided with a grease nipple to facilitate maintenance and make the product have better performance.

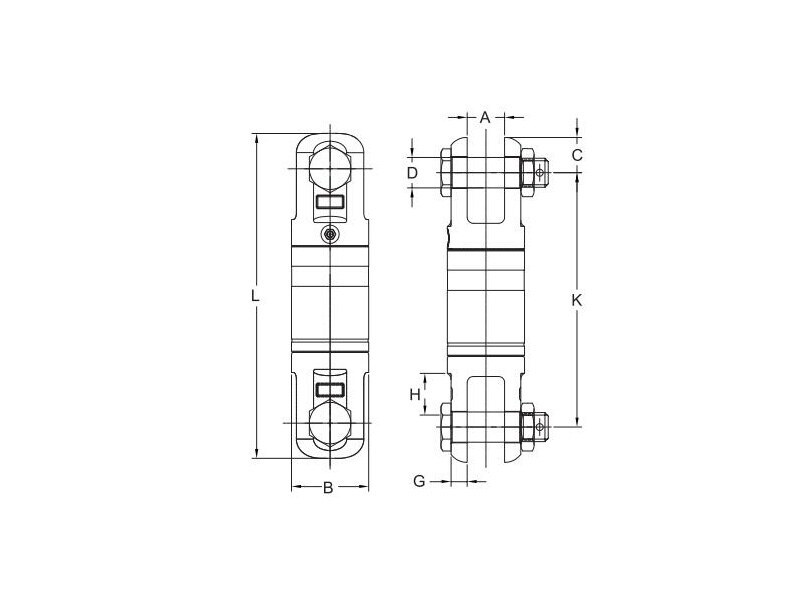

BLT086 Angular Contat Bearing Swivels-UU Style Drawing
BLT086 Angular Contat Bearing Swivels-UU Style Parameters
| ITEM NO. | SIZE | WLL/T | WEIGHT/KG | |
| BLT086-007 | 0.75 | 0.75 | 0.5 | |
| BLT086-015 | 1.5 | 1.5 | 0.9 | |
| BLT086-030 | 3 | 3 | 2.3 | |
| BLT086-050 | 5 | 5 | 4.4 | |
| BLT086-085 | 8.5 | 8.5 | 7.6 | |
| BLT086-100 | 10 | 10 | 19.5 | |
| BLT086-150 | 15 | 15 | 21.7 | |
| BLT086-250 | 25 | 25 | 39.5 | |
| BLT086-350 | 35 | 35 | 46.2 | |
| BLT086-600 | 60 | 60 | ||
| ITEM NO. | TECHNICAL PARAMETERS/MM | |||
| B | K | L | C | |
| BLT086-007 | 34 | 102 | 128 | 13 |
| BLT086-015 | 40 | 112 | 152 | 20 |
| BLT086-030 | 53 | 160 | 210 | 25 |
| BLT086-050 | 67 | 203 | 267 | 32 |
| BLT086-085 | 78 | 250 | 326 | 38 |
| BLT086-100 | 104 | 310 | 410 | 50 |
| BLT086-150 | 116 | 320 | 440 | 60 |
| BLT086-250 | 137 | 405 | 535 | 65 |
| BLT086-350 | 154 | 405 | 535 | 65 |
| BLT086-600 | 270 | 670 | 890 | 112 |
| ITEM NO. | TECHNICAL PARAMETERS/MM | |||
| A | D | G | H | |
| BLT086-007 | 15 | 10 | 8 | 22 |
| BLT086-015 | 18 | 13 | 8 | 26 |
| BLT086-030 | 23 | 19 | 10 | 32 |
| BLT086-050 | 32 | 22 | 14 | 37 |
| BLT086-085 | 40 | 30 | 14 | 54 |
| BLT086-100 | 42 | 38 | 25 | 54 |
| BLT086-150 | 48 | 38 | 25 | 57 |
| BLT086-250 | 62 | 50 | 30 | 70 |
| BLT086-350 | 62 | 50 | 33 | 70 |
| BLT086-600 | 100 | 80 | 75 | 75 |
