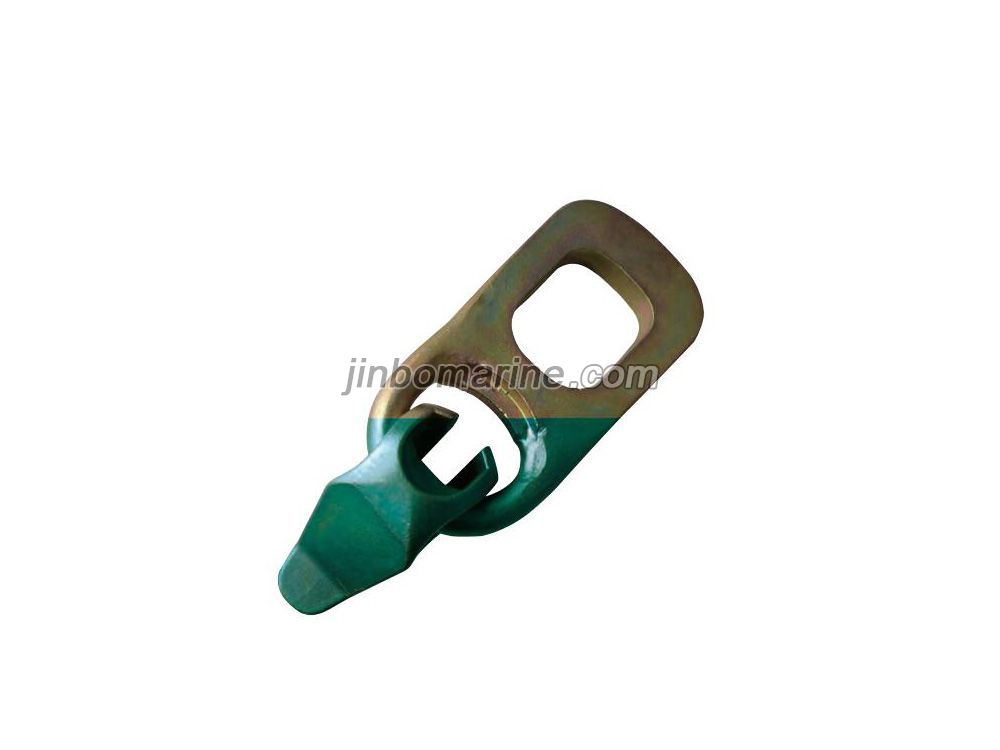

BLT095 Concrete Precast Element Lifting
PDF Datasheet
We can supply according to your requirement.

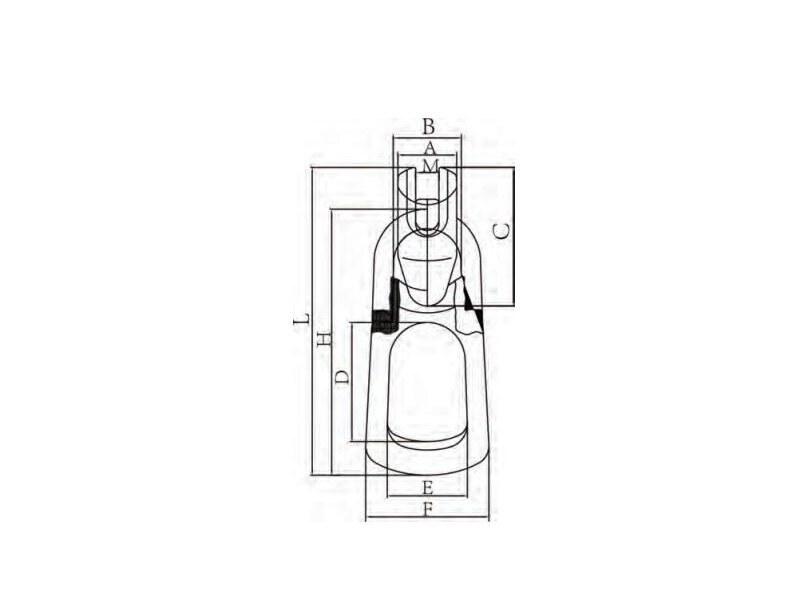

BLT095 Concrete Precast Element Lifting Drawing
BLT095 Concrete Precast Element Lifting Parameters
| ITEM NO. | WLL/T | Weight/kg |
| BLT095-1-1.3 | 1-1.3 | 0.89 |
| BLT095-1.5-2.5 | 1.5-2.5 | 1.3 |
| BLT095-3-5 | 3.0-5 | 3.24 |
| BLT095-6-10 | 6.0-10 | 10.01 |
| BLT095-12-20 | 12.0-20 | 2037 |
| BLT095-12-32 | 32 | 46.5 |
| ITEM NO. | TECHNICAL PARAMETERS/MM | |||
| A±1 | B±1 | C±2 | D±1 | |
| BLT095-1-1.3 | 5.2 | 42 | 80.4 | 70.5 |
| BLT095-1.5-2.5 | 10 | 49 | 99 | 85 |
| BLT095-3-5 | 20 | 70 | 133 | 88 |
| BLT095-6-10 | 40 | 92 | 176 | 116 |
| BLT095-12-20 | 80 | 114.5 | 228 | 133.5 |
| BLT095-12-32 | 128 | 172 | 307 | 189 |
| ITEM NO. | TECHNICAL PARAMETERS/MM | ||||
| E±1 | F±1 | H±1 | M±2 | L±2 | |
| BLT095-1-1.3 | 45 | 73 | 157 | 11.5 | 181 |
| BLT095-1.5-2.5 | 57 | 88 | 190 | 12 | 220 |
| BLT095-3-5 | 69 | 110 | 233 | 22 | 271 |
| BLT095-6-10 | 83 | 161 | 336.5 | 30 | 386 |
| BLT095-12-20 | 107.5 | 182 | 437 | 42 | 497 |
| BLT095-12-32 | 164 | 272 | 560 | 52 | 661 |
