Commercial Grade Devils Claw Type Chain Stopper
Devil’s Claw Type Chain Stopper consist of rigging screwm shackle and hooks, hook the chain link when anchoring, assist in securing the anchor at the hawser pipe and help retrieve mooring co...
Loading product images...
Commercial Grade Devils Claw Type Chain Stopper
PDF Datasheet
We can supply according to your requirement.
China Commercial Grade Devils Claw Type Chain Stopper:

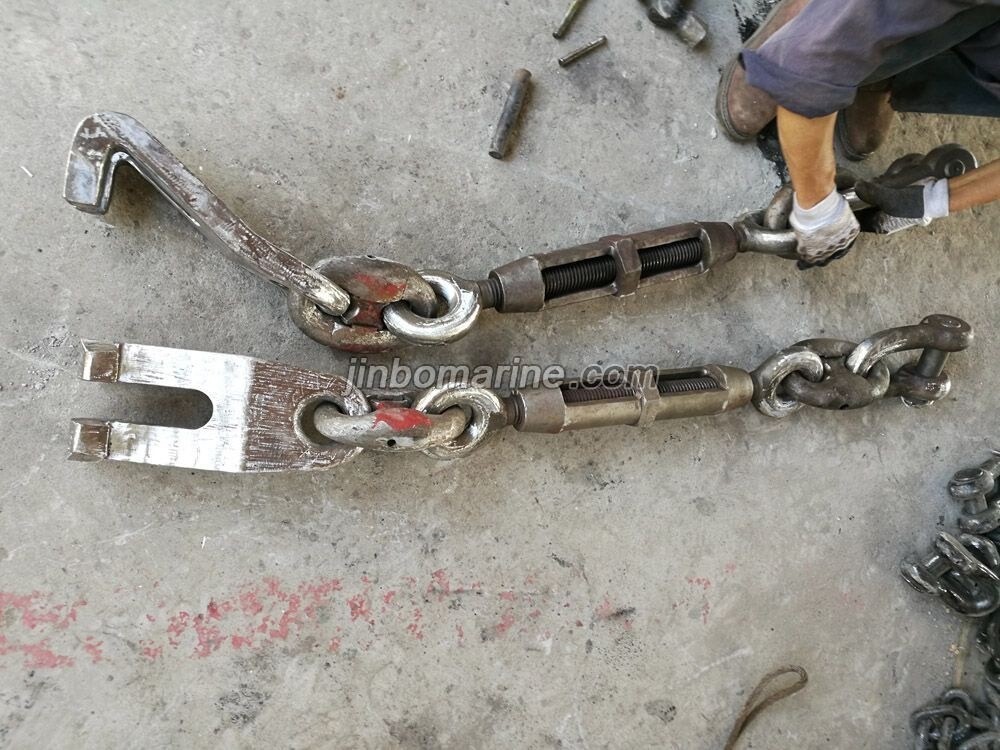

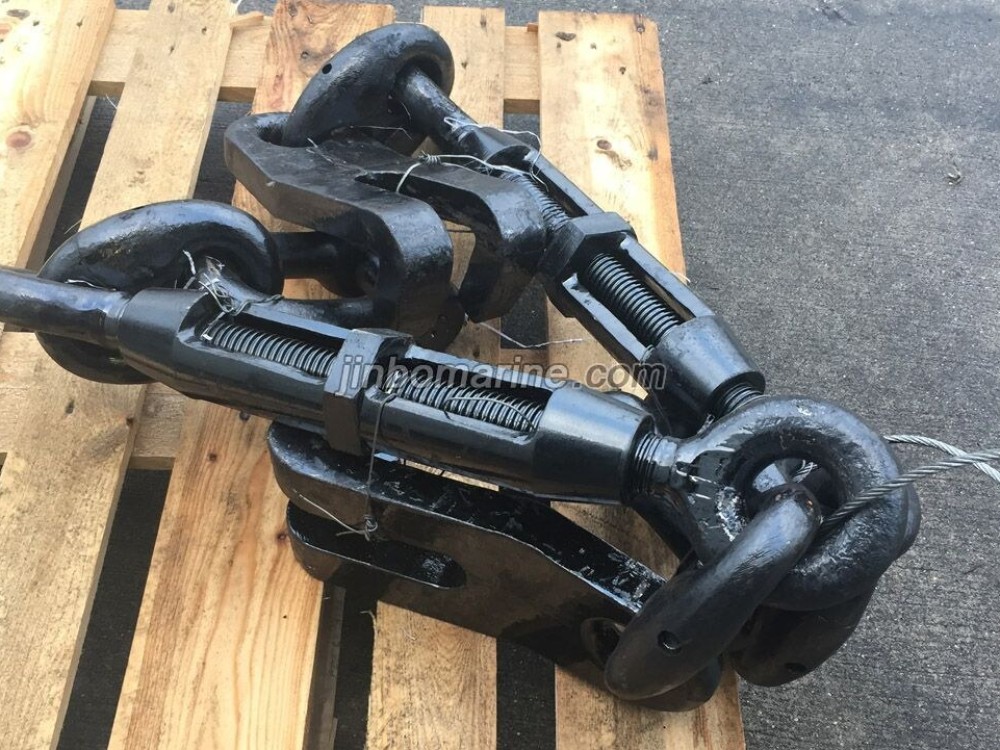

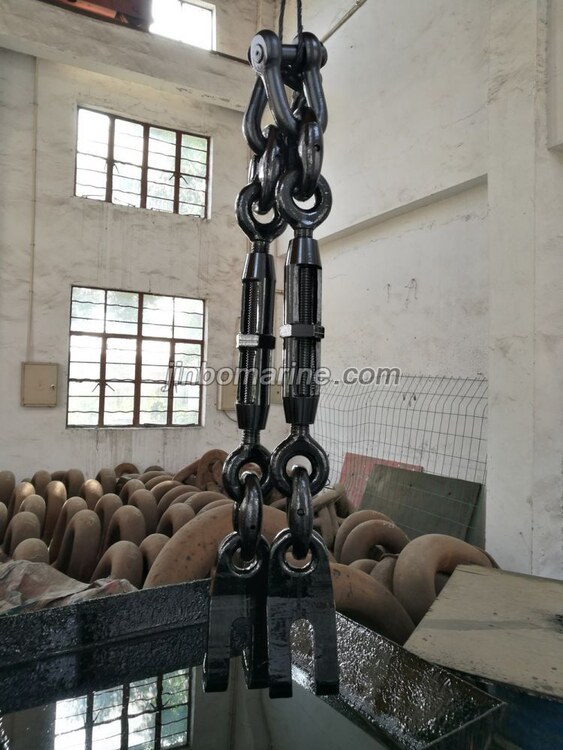

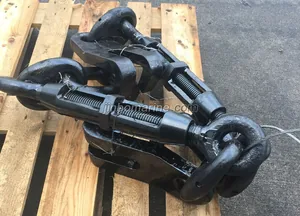

Devil’s Claw Type Chain Stopper consist of rigging screwm shackle and hooks, hook the chain link when anchoring, assist in securing the anchor at the hawser pipe and help retrieve mooring components.
Please contac our sales team for inquiry.

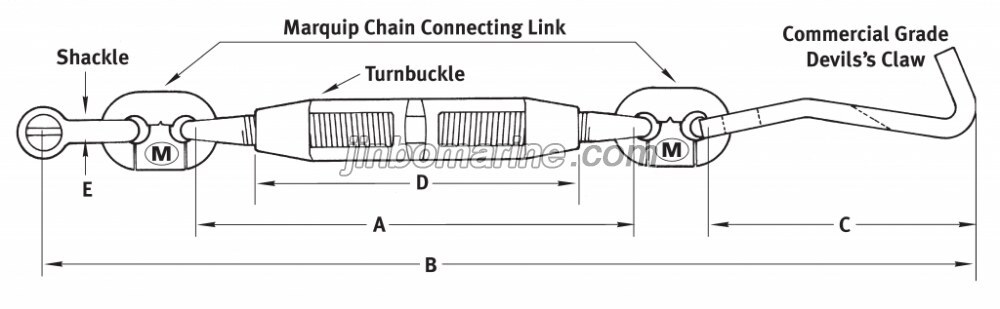

| Chain Size | A | B Min. | B Max. | C | D | E | Det. Link Size | Proof Load Lbs. | ||||||
| Inches | mm | |||||||||||||
| 3/4 | 19 | 16 | 35-1/2 | 42-3/4 | 12 | 11 | 7/8 | 3/4 | 34,000 | |||||
| 7/8 | 22 | 17-1/4 | 38-1/4 | 45-3/8 | 12 | 11 | 1 | 7/8 | 46,000 | |||||
| 1 – 1-1/8 – 1-1/4 | 25-32 | 19-1/2 | 43-1/16 | 52-13/16 | 12-3/4 | 13 | 1-1/4 | 1-1/8 | 92,200 | |||||
| 1-3/8 – 1-1/2 – 1-5/8 | 34-42 | 23-3/4 | 50-1/4 | 60-3/4 | 13 | 16 | 1-1/2 | 1-3/8 | 153,000 | |||||
| 1-3/4 – 2 | 44-51 | 24-1/8 | 53-1/8 | 63-5/8 | 16 | 16 | 1-1/2 | 1-1/2 | 160,000 | |||||
| 2-1/8 – 2-3/8 | 54-60 | 26-1/4 | 56-1/4 | 66-3/4 | 19 | 16 | 1-5/8 | 1-1/2 | 170,000 | |||||
| 2-1/2 – 2-5/8 | 64-67 | 29-3/4 | 65 | 78-1/8 | 20 | 20 | 1-7/8 | 1-5/8 | 200,000 | |||||
| 2-3/4 | 70 | 29-3/4 | 67-1/4 | 80-1/4 | 24 | 20 | 1-7/8 | 2-1/8 | 220,000 | |||||
| 3 | 76 | 36 | 76-1/4 | 92-3/8 | 24 | 24 | 2-3/8 | 2-1/8 | 220,000 | |||||
