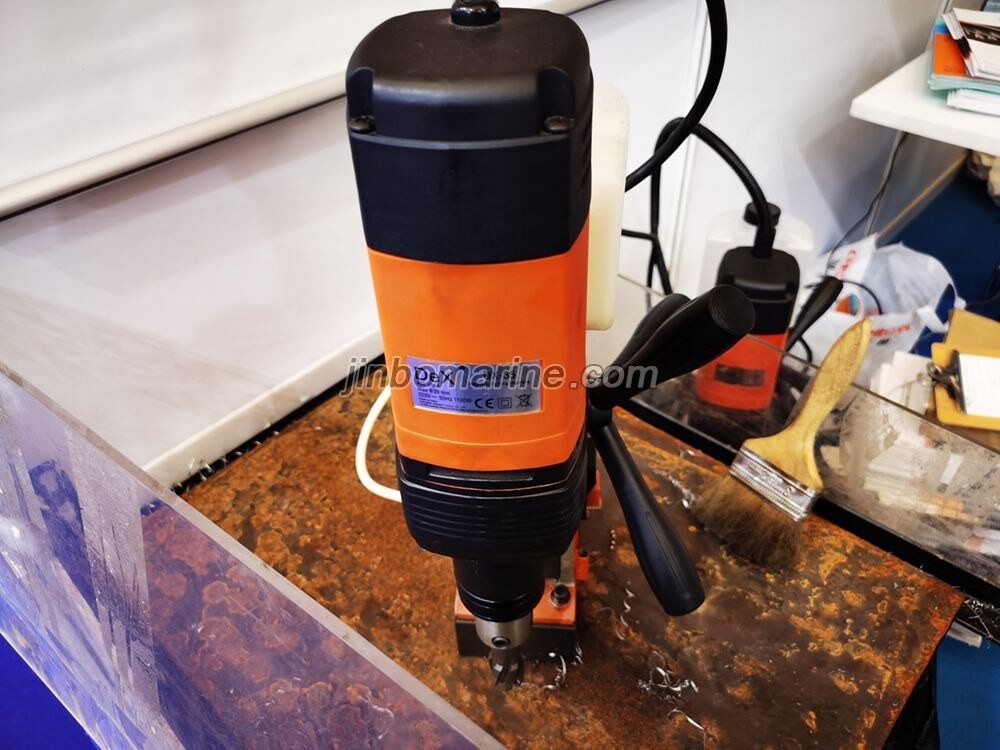

DX-35 Magnetic Drilling Machine
Light and convenient operation,widely used. High power and drilling efficiency. Patented structure, high- precision manufacturing process with long service life. ...
DX-35 Magnetic Drilling Machine
PDF Datasheet
We can supply according to your requirement.
China DX-35 Magnetic Drilling Machine:
Light and convenient operation,widely used.
High power and drilling efficiency.
Patented structure, high- precision manufacturing process with long service life.
AC220V-240V 50-60HZ
Rated Input Power: 1100w
Magnetic Suction: 10000n
Stroke: 120mm
Mainshaft adjustble Height: 95mm
Spindle Interface Type: 19.05mm
Maghetic Base Side: 167x84x44mm

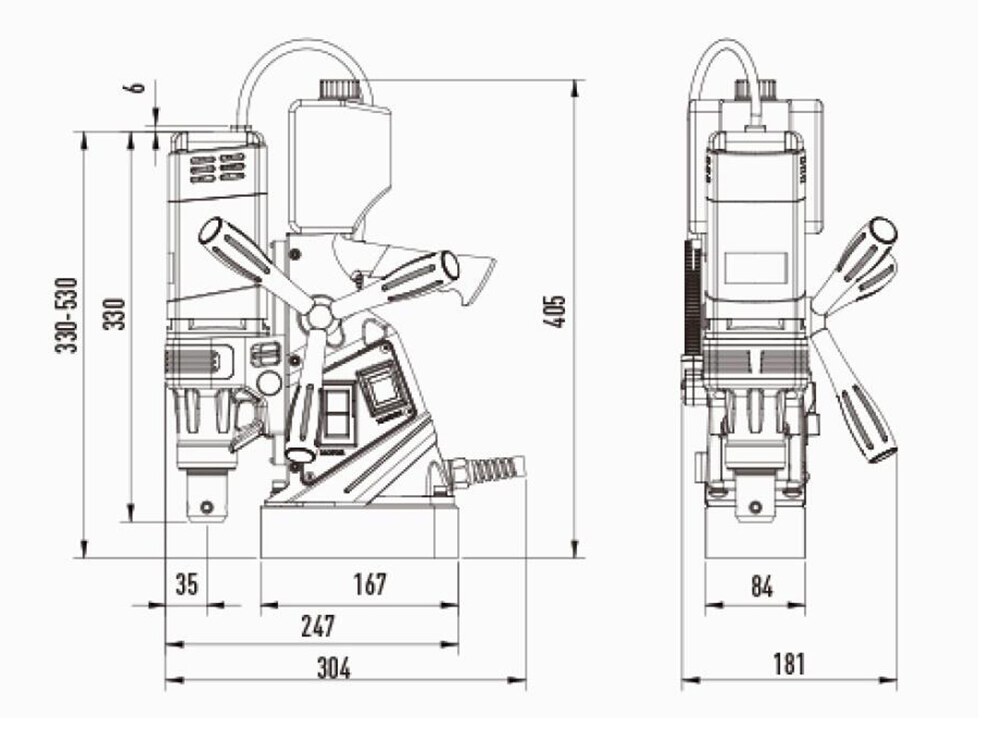

Machine Size: 304x181x330 (530) mm
The Minimum Processing Thickness:10mm
The Diameter Range Of Annular Cutter:≤35mm
Thecrilung Depth Range Of Annular Cutter:≤50mm
The Diameter Range Of Twist Drill:≤13mm
Apping Specifications
Weght: 10.5kg
Rated Speed: 450rpm
| Model | Voltge And Power | Rotation speed | Spindle Interface Type(mm) | The maximum drilling diameter of annular cutter(mm) | The max drilling diameter of twist drill(mm) | Magnetic suction(N) |
| DX-35 | 220-240V 1100W 110-127V 1100W | 450 | 19.05(mm) Sliding Plate Stroke:120mm | DOC:50mm,TCT 35mm,HSS 35mm | 13mm | 10000 |
| DX-H35 | 220-240V 1100W 110-127V 1100W | 450 | 19.05(mm) Sliding Plate Stroke:63mm | DOC:50mm,TCT 35mm,HSS 35mm | 13mm | 9000 |
| DX-H35S | 220-240V 1100W 110-127V 1100W | 450 | 19.05(mm) Sliding Plate Stroke:63mm | DOC:50mm,TCT 35mm,HSS 35mm | 13mm | 9000 |
| DX-60 | 220-240V 1500W 110-127V 1500W | 450/250 | MT3(mm) Sliding Plate Stroke:170mm | DOC:75mm,TCT 60mm,HSS 50mm | 31.5mm | 15000 |
| DX-60X | 220-240V 1500W 110-127V 1500W | 450/250 | MT3(mm) Sliding Plate Stroke:170mm | DOC:75mm,TCT 60mm,HSS 50mm | 31.5mm | 15000 |
| DX-120 | 220-240V 2500W | 80/125/175/300 | MT4(mm) Sliding Plate Stroke:220mm | DOC:120mm,TCT 65mm,HSS 42mm | 42mm | 20000 |
| DX-120X | 220-240V 2500W 110-127V 2500W | 80/125/175/300 | MT4(mm) Sliding Plate Stroke:220mm | DOC:120mm,TCT 65mm,HSS 42mm | 42mm | 20000 |
| DR-35 | 220-240V 1100W 110-127V 1100W | 450 | 19.05(mm) Sliding Plate Stroke:120mm | - | - | - |
