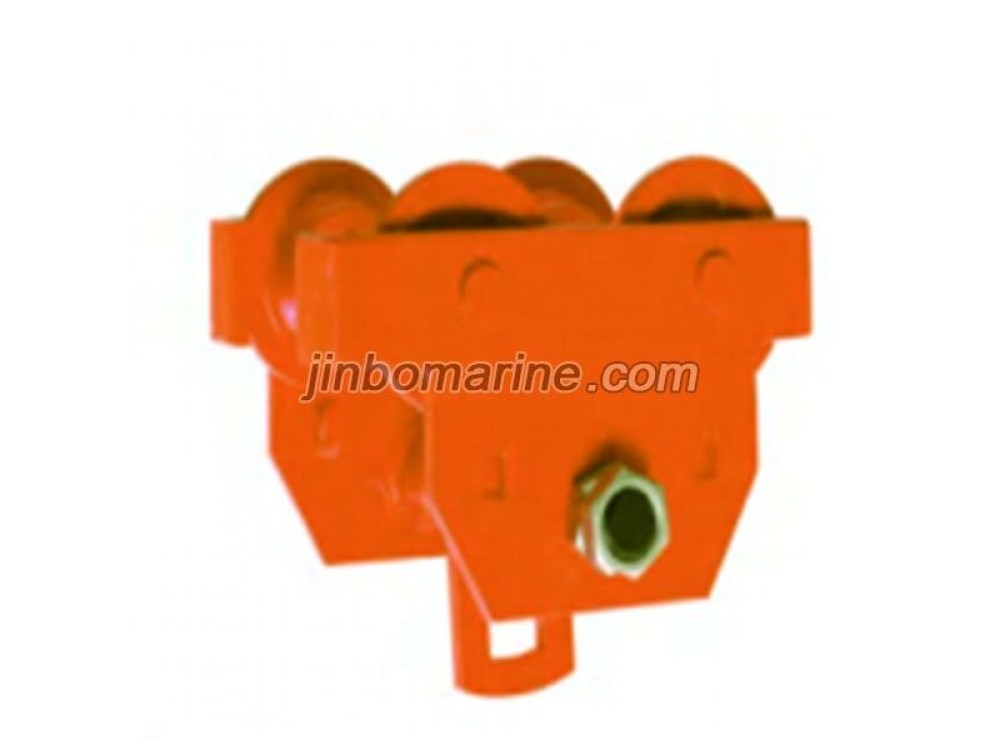

GCTF Series Plain Trolleys
GCTF Series Plain Trolleys Model Capaity(ton) Proof load (ton) Minimun revoing radus(mm...
Loading product images...
GCTF Series Plain Trolleys
PDF Datasheet
We can supply according to your requirement.
China GCTF Series Plain Trolleys:
GCTF Series Plain Trolleys

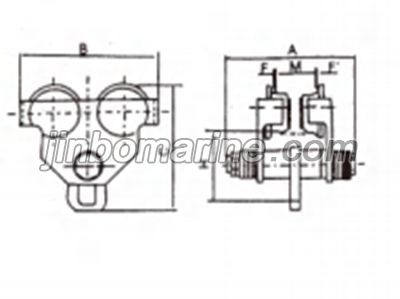

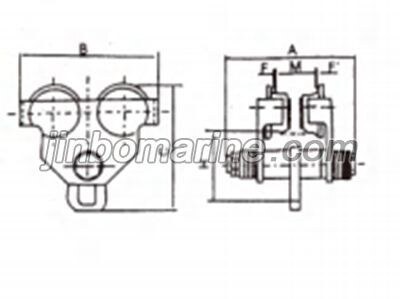

| Model | Capaity(ton) | Proof load (ton) | Minimun revoing radus(mm) | Dimensions(mm) | Fits Beam(mm) | N.W.(kg) | ||||
| A | B | C | H | F | ||||||
| GCLF-1 | 1 | 1.25 | 1 | 242 | 230 | 211 | 115 | ≈3 | 46-203 | 7.5 |
| GCLF-2 | 2 | 2.25 | 1.1 | 280 | 270 | 236 | 130 | ≈3 | 88-203 | 11 |
| GCLF-3 | 3 | 3.25 | 1.3 | 300 | 320 | 295 | 164 | ≈3 | 101-203 | 19 |
| GCLF-5 | 5 | 5.25 | 1.4 | 316 | 350 | 334 | 177 | ≈3 | 114-203 | 30 |
