HG32 Multi‑Way Directional Control Valve

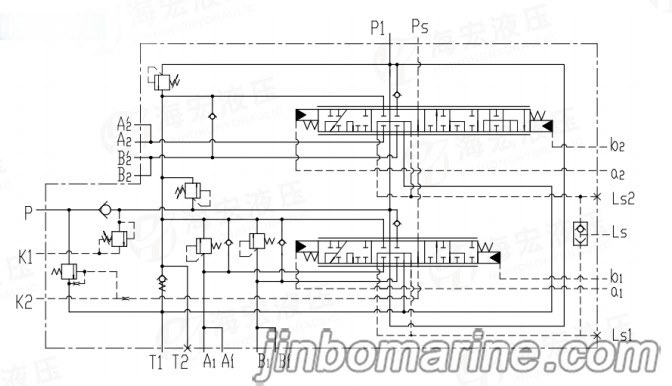

Principle :
| Port connection type | Flange connection / Thread connection | ||||||
|---|---|---|---|---|---|---|---|
| Control type | Pressure control | ||||||
| Nominal size (bore) | 32 | ||||||
| Max. flow | 500 L/min | ||||||
| Nominal pressure | 315 bar | ||||||
| Max. allowable tank line back pressure | 15 bar | ||||||
| Main relief valve pressure | 100–350 bar | ||||||
| Overload valve pressure | 100–350 bar | ||||||
| Pilot control pressure | 30 bar | ||||||
| Pilot control characteristic curve | 4–25 bar | ||||||
| Hydraulic oil temperature range | −20 ~ +100 ℃ | ||||||
| Viscosity range | 10–460 mm²/s | ||||||
| Max. fluid contamination level | Class /19/16 (ISO 4406:1999) |

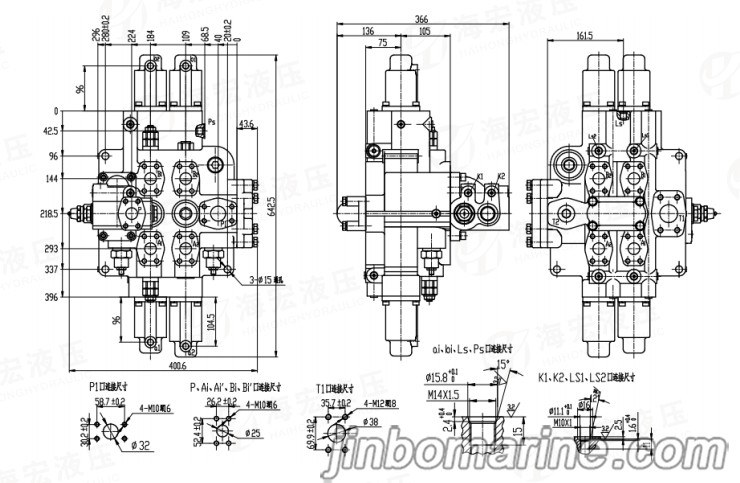

Size :
