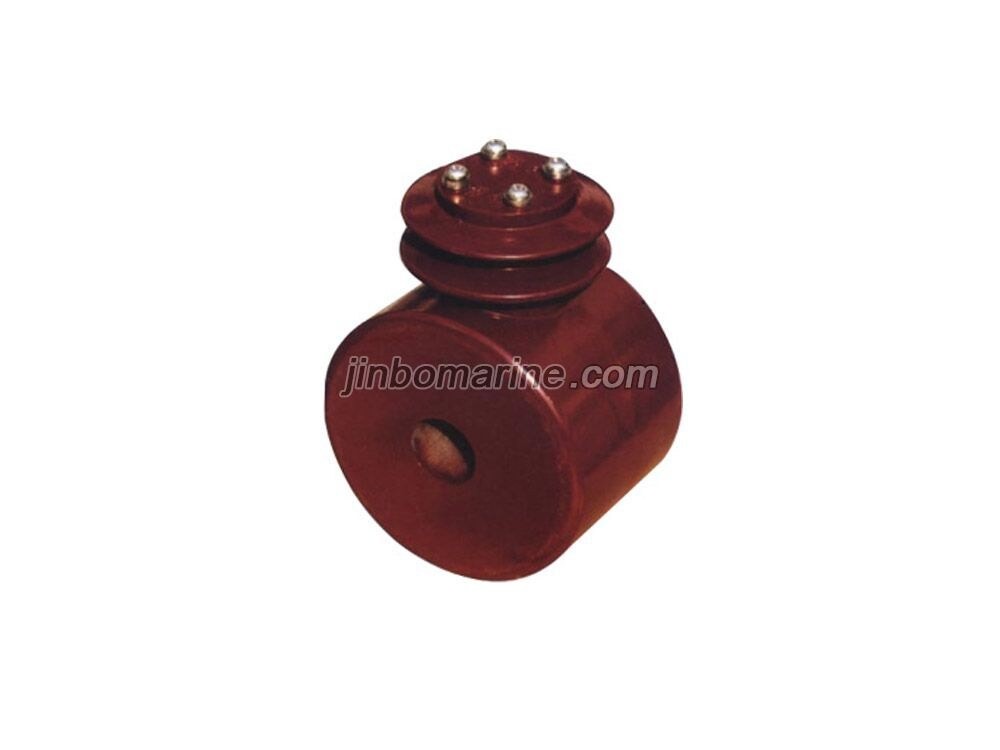

LMZ-10 Voltage Transformer
LMZ-10 Voltage Transformer 1. The product complies with the standards GB1208 and IEC185 2. Rated insulation level 12/42/75KV, 7.2/25/60KV 3. Rated frequency 50Hz, 60Hz 4. Rated seco...
Loading product images...
LMZ-10 Voltage Transformer
PDF Datasheet
We can supply according to your requirement.
LMZ-10 Voltage Transformer
1. The product complies with the standards GB1208 and IEC185
2. Rated insulation level 12/42/75KV, 7.2/25/60KV
3. Rated frequency 50Hz, 60Hz
4. Rated secondary current 5A, 1A
LMZ-10 Voltage Transformer Parameters
| Model | Rated Primary Current A | Accuracy Combination | Rated Output/VA |
| LMZ-10 | 50，75，100，150，200 | 3/3 | 5/5 |
| 300,400,600 | 0.5/10P10 | 10/15 | |
| LMZ-6 | 50，75，100，150，200 | 3/3 | 5/5 |
| 0.5/10P10 | 10/15 | ||
| 300,400,600 | 0.5/0.5 | 10/10 | |
| 0.5/10P10 | 10/15 |
