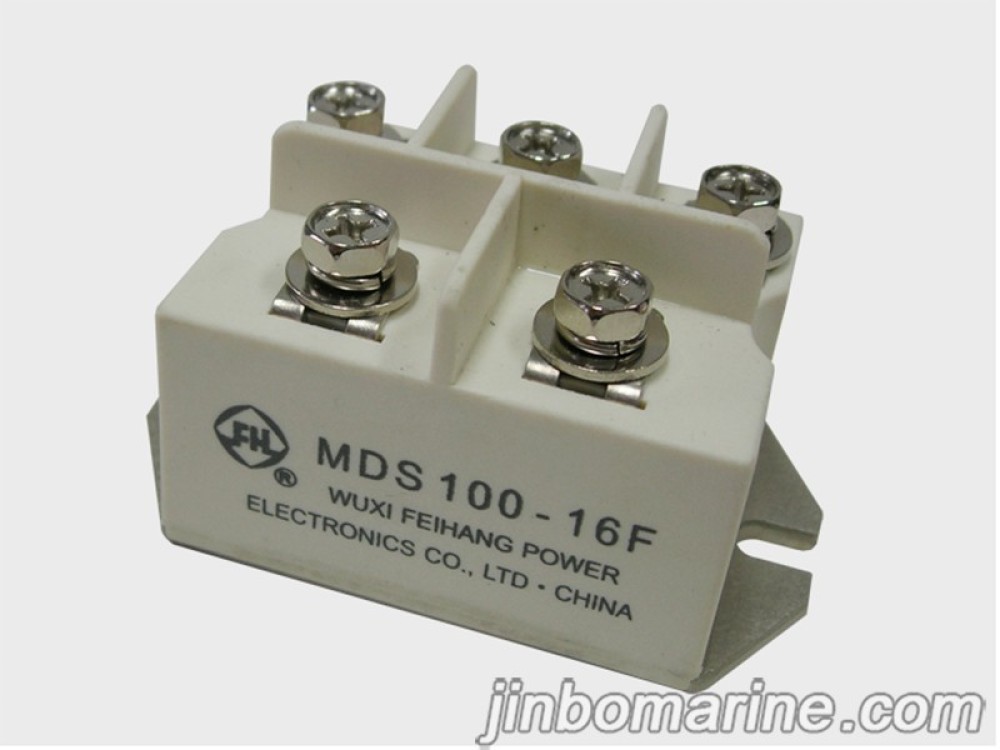

MDS75A(F) / MDS100A(F) Three‑Phase Bridge Rectifier Module
MDS75A(F) / MDS100A(F) Three‑Phase Bridge Rectifier Module Size : Principle : Type Parameter IO IFSM I2t VRRM IRRM VFM...
Loading product images...
MDS75A(F) / MDS100A(F) Three‑Phase Bridge Rectifier Module
PDF Datasheet
We can supply according to your requirement.
China MDS75A(F) / MDS100A(F) Three‑Phase Bridge Rectifier Module:
MDS75A(F) / MDS100A(F) Three‑Phase Bridge Rectifier Module

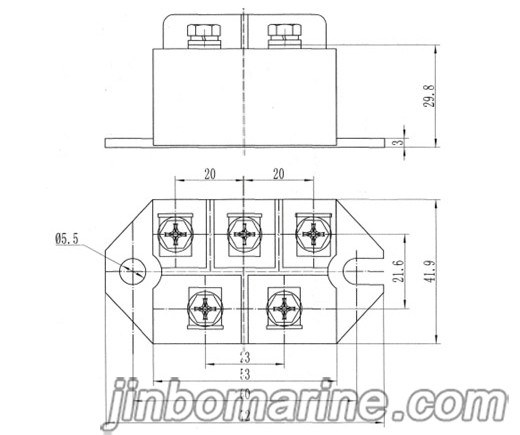

Size :

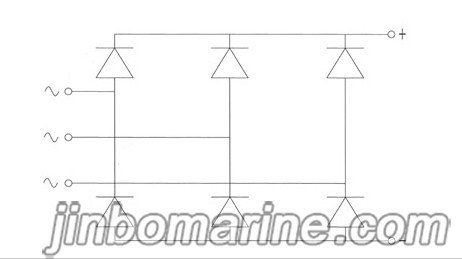

Principle :
| Type | Parameter | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IO | IFSM | I2t | VRRM | IRRM | VFM | Tj | Rjc | VISO | F-L | ||||
| A | A | A2S | V | mA | V | ℃ | ℃/W | V | Fitting Module N.m | Electrode Connection N.m | |||
| MDS | 30 | 270 | 0.8x103 | 800~1800 | ≤3 | ≤1.30 | -40~150 | 1.2 | ≥2500 | 3.5 | |||
| 60 | 360 | 1.2x103 | ≤3 | ≤1.30 | 0.8 | 3.5 | 2.3 | ||||||
| 75 | 450 | 1.8x103 | ≤5 | ≤1.30 | 0.6 | 4.5 | 3.5 | ||||||
| 100 | 630 | 3.2x103 | ≤5 | ≤1.30 | 0.4 | 4.5 | 3.5 | ||||||
| 150 | 900 | 8.6x103 | ≤9 | ≤1.30 | 0.3 | 4.5 | 4.5 | ||||||
| 200 | 1200 | 14.7x103 | ≤9 | ≤1.30 | 0.25 | 4.5 | 4.5 | ||||||
| SQL | 50 | 320 | 1.0x103 | ≤4 | ≤1.30 | 1.5 | 4.5 | ||||||
