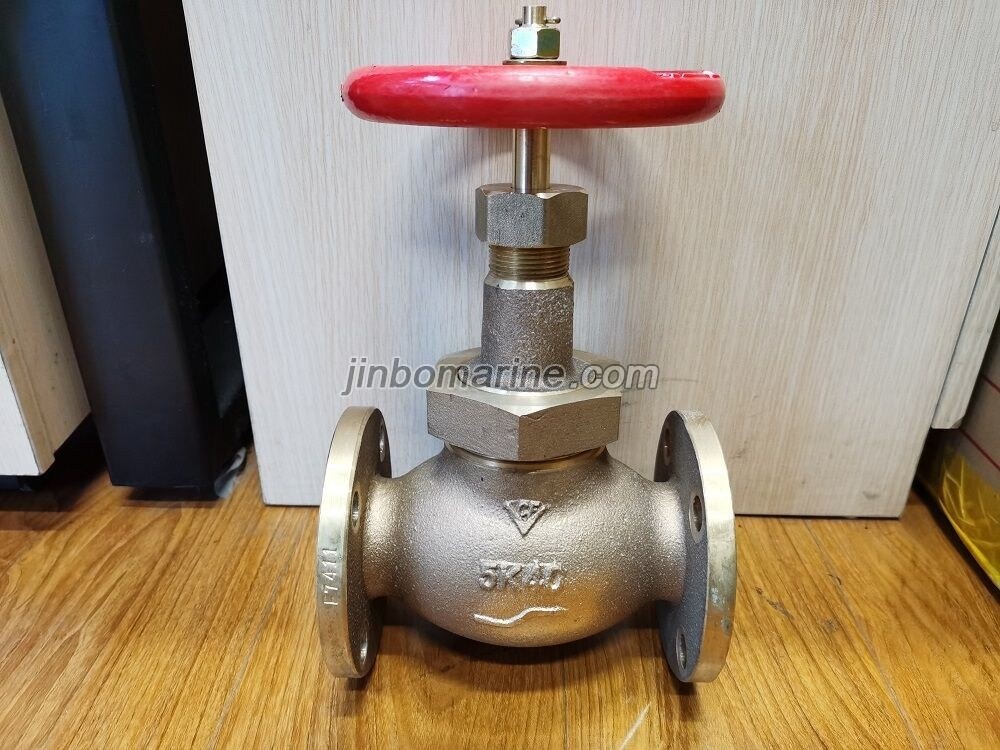

China Marine Bronze 5K Screw-down Check Globe Valve (Union Bonnet Type) JIS F7411:

Marine Bronze 5K Screw-down Check Globe Valve (Union Bonnet Type) JIS F7411 is used on the ship pipe line of steam, fresh water, sea water, fuel oi & lubrication oil.

Function: Open/Close the pipe system

Design Standard: JIS F7411-1996

Test Standard: JIS F7400-1996

Test Pressure: Body-1.05Mpa, Seat-0.77Mpa

Flange Size as per JIS B2220-5K

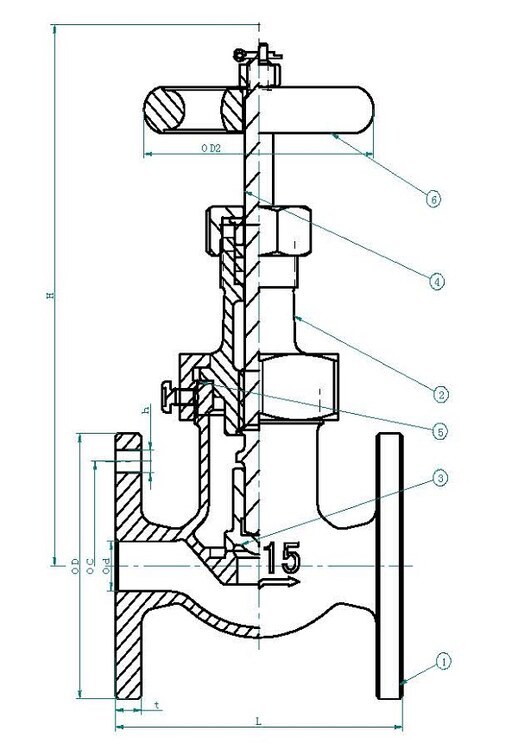

Main Material:

1-Body: Bronze (BC6)/ Brass

2-Disc:Bronze (BC6) / Brass

3-Stem: Brass (C3771BD)

4-Bonnet:Bronze (BC6) /Brass

5-Handwheel: Cast Iron (FC200)

Main Size List(mm):

Size	Face to Face (L)	Flange diam. (D)	Pitch (C)	No of Bolt Hole	h	t	H	D2
15	100	80	60	4	12	9	130	80
20	110	85	65	4	12	10	140	100
25	120	95	75	4	12	10	160	125
32	140	115	90	4	15	12	170	125
40	160	120	95	4	15	12	190	140
