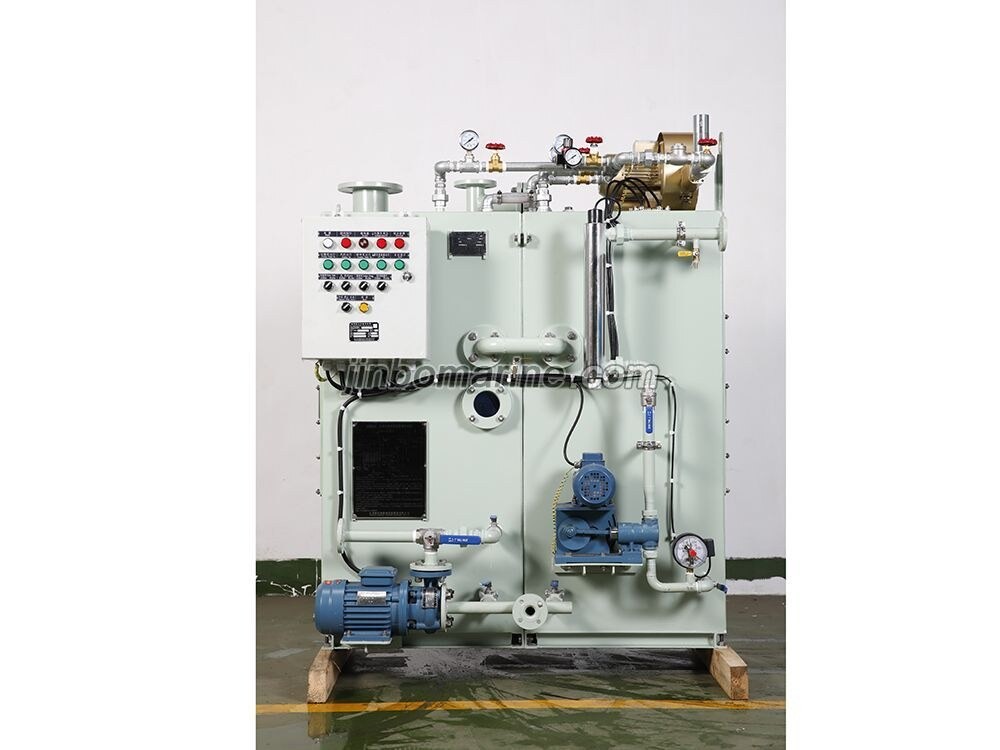

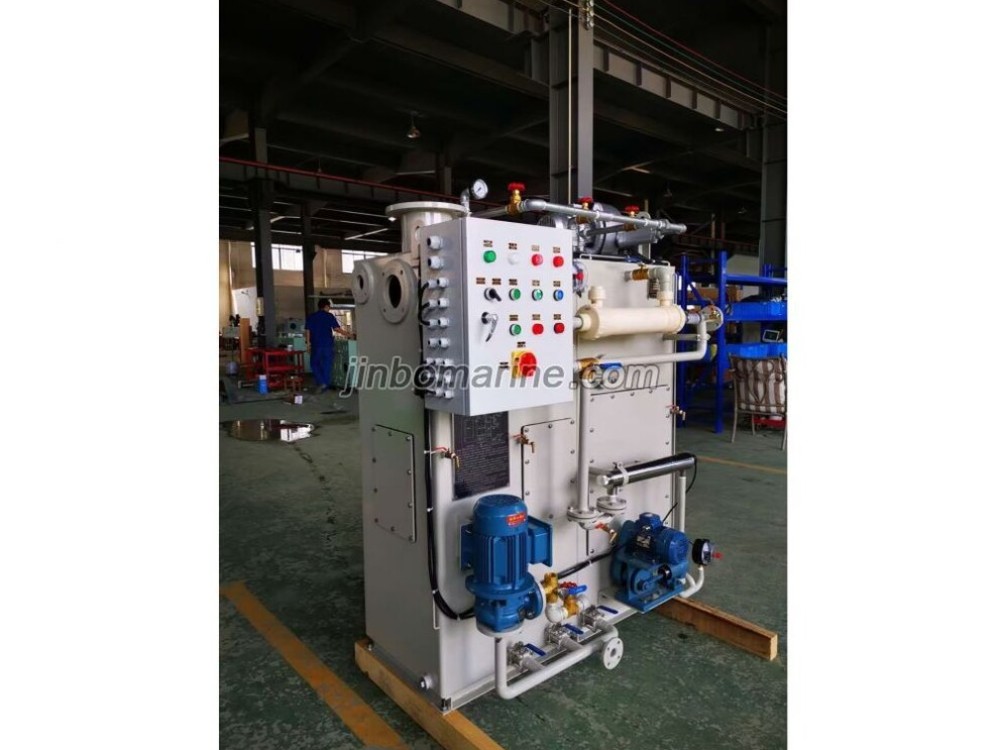

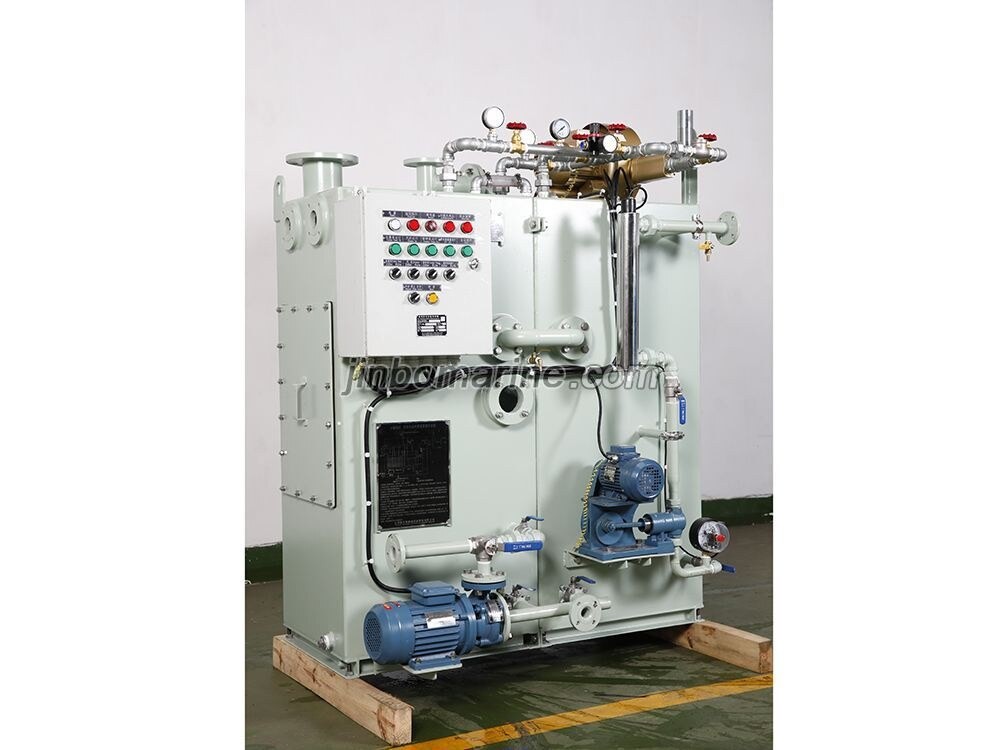

New Type Marine Sewage Treatment Plant HBNB-30
Effluent standard of HBNA Series Sewage Treatment Plants after treating: Thermmtolerant coliform count not exceed 100 coliforms/ 100ml Total Suspended Solids(TSS) NOT exceed 25mg...
New Type Marine Sewage Treatment Plant HBNB-30
PDF Datasheet
We can supply according to your requirement.
China New Type Marine Sewage Treatment Plant HBNB-30:
Effluent standard of HBNA Series Sewage Treatment Plants after treating:
Thermmtolerant coliform count not exceed 100 coliforms/ 100ml
Total Suspended Solids(TSS) NOT exceed 25mg/l
Chemical Oxygen Demand(COD) Not exceed 125mg/l
PH Between 6 and 8.5
Residual Chlorine Not exceed 0.5 mg/l
Specification:
HBNA series of domestic sewage treatment equipment, the use if oxidative degradation, membrane microfiltration and ohysical disinfection of the combination of methods to deal with the marine toilets, kitchen, bathroom sewage compared with the same type of product, it has the characteristics of samll volume, light weight, compact structure, no secondary pollution, easy operation and maintenance.
The discharge water treated by this device meets the emission standards of the International Maritime Origanization for anti pollution Convention(MAROL73/78) mpodified by the International Maritime Organization(IMO), Which is in accordance with the requirements stipulated in the resolution of MEPC.227(64), Type approval of CCS, ZY and ZC.
Technical data:
| Model | Hydraulic Load | Organic Load | Voltage | Certificate | Power(kw) | Outline Dimension | Weight(Dry.kg) | ||
| (kg/d BOD5) | (mm) | ||||||||
| L | W | H | |||||||
| HBNB-5 | 350 | 0.175 | AC220V/ | MEPC.227(64) | 1.5 | 590 | 620 | 1400 | 300 |
| HBNB-10 | 700 | 0.35 | AC380V/ | 1.5 | 820 | 745 | 1400 | 370 | |
| HBNB-15 | 1050 | 0.525 | AC440V | 1.5 | 930 | 850 | 1450 | 430 | |
| HBNB-20 | 1400 | 0.7 | 1.5 | 1100 | 915 | 1450 | 480 | ||
| HBNB-30 | 2100 | 1.05 | 1.5 | 1340 | 995 | 1470 | 560 | ||
| HBNB-40 | 2800 | 1.4 | 1.5 | 1510 | 1115 | 1470 | 650 | ||
| HBNB-50 | 3500 | 1.75 | 2 | 1590 | 1215 | 1570 | 690 | ||
| HBNB-60 | 4200 | 2.1 | 2 | 1740 | 1290 | 1570 | 730 | ||
| HBNB-70 | 4900 | 2.45 | 2 | 1750 | 1260 | 1770 | 800 | ||
| HBNB-80 | 5600 | 2.8 | 3 | 1900 | 1415 | 1770 | 890 | ||
| HBNB-90 | 6300 | 3.15 | 3 | 1900 | 1465 | 1920 | 1010 | ||
| HBNB-100 | 7000 | 3.5 | 3 | 2030 | 1515 | 1920 | 1150 | ||
