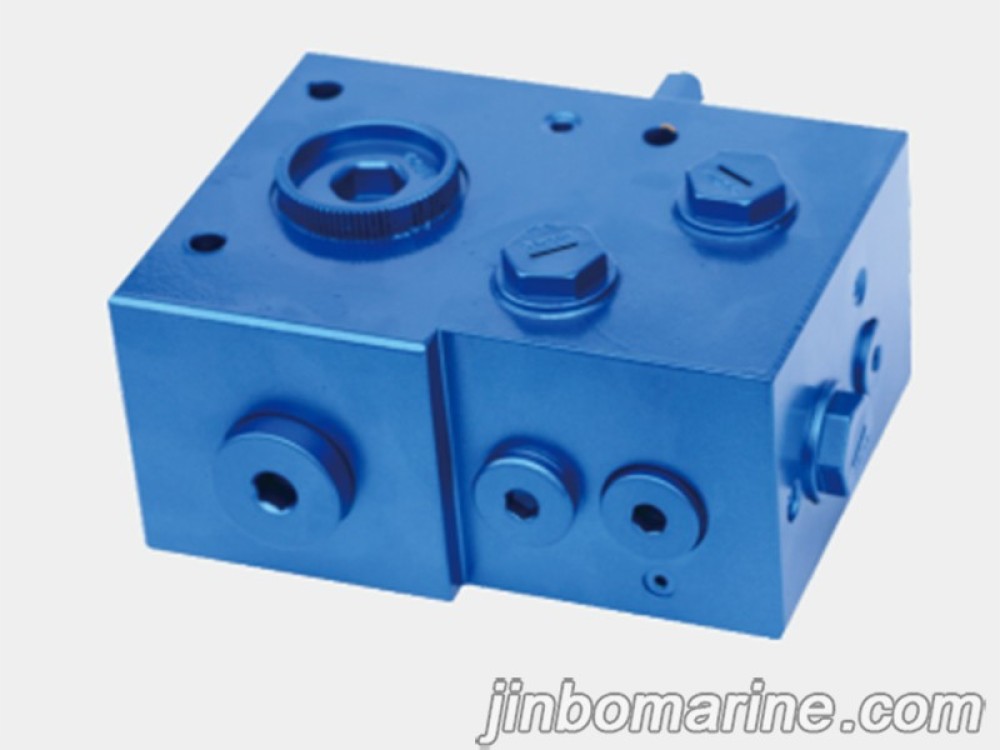

PDF15 Monostable Charging Valve
This valve integrates a monostable valve and a single-circuit charging valve. Oil from the pump port is diverted to provide a stable flow to the charging valve for accumulator charging. Upon completion of charging, pressure is relieved via port N. The remaining flow is delivered to the working system through port EF. With a single pump operation, both the brake system and working system requirements can be satisfied.

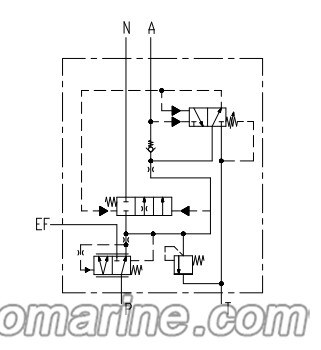

Principle :
| Nominal Flow | 90 L/min | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Return‑line Back Pressure | ≤ 0.5 MPa | |||||||||
| Viscosity Range | 10‑380 mm²/s | |||||||||
| Temperature Range | ‑20 ℃ ~ 100 ℃ | |||||||||
| Oil Fluid Cleanliness | The solid‑particle contamination level of oil fluid and system shall not exceed GB/T 14039‑2002‑/19/16 or NAS 1638 Class 10. | |||||||||
| Approximate Weight | 9Kg | |||||||||
