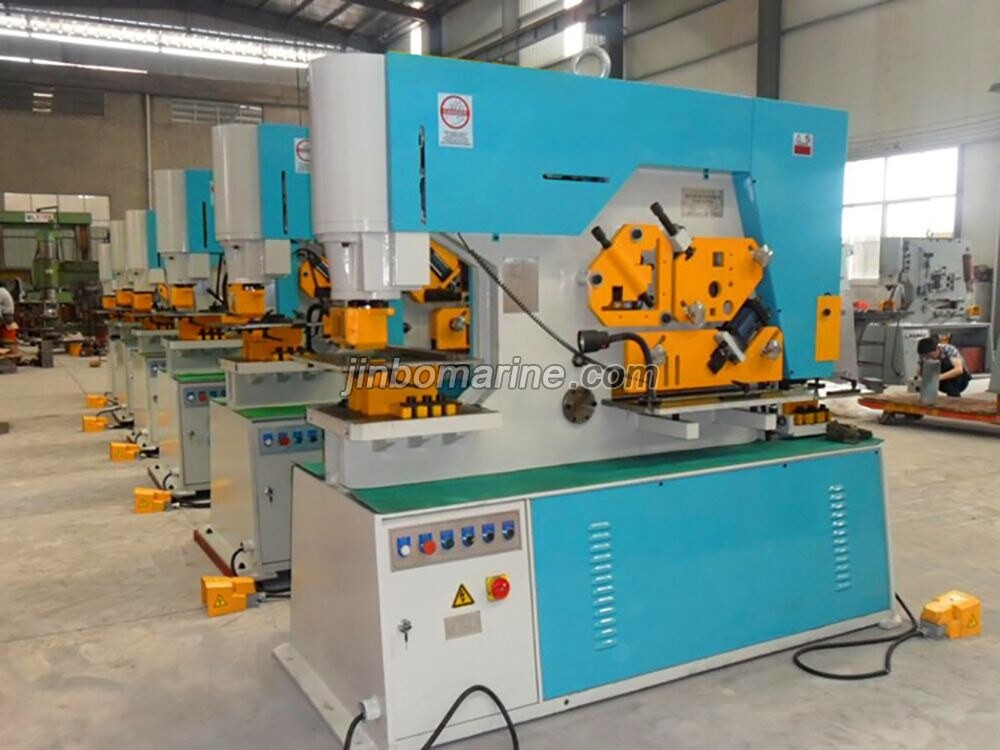

Q35Y Series Hydraulic Ironworker For Shipyard
Q35Y Series Hydraulic Ironworker They adopt hydraulic driving system and they are the latest iron workers in our country, various metal plate, square bar, Round bar, angle, chann...
Loading product images...
Q35Y Series Hydraulic Ironworker For Shipyard
PDF Datasheet
We can supply according to your requirement.
Q35Y Series Hydraulic Ironworker

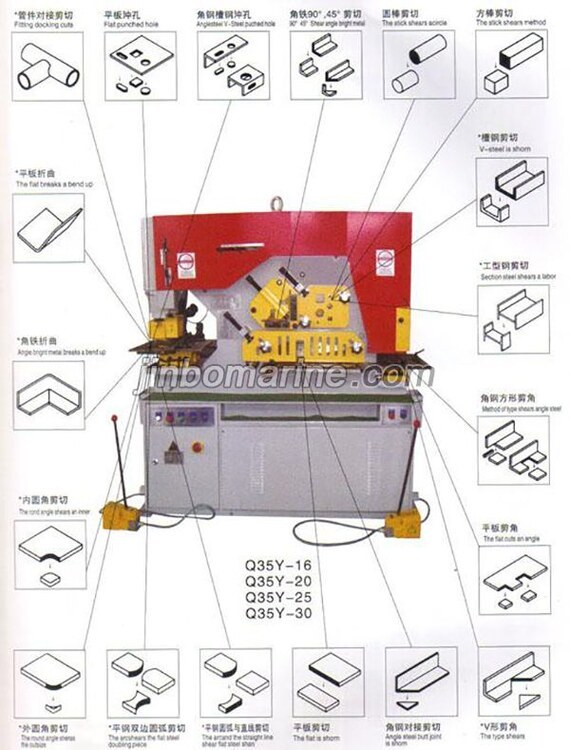

They adopt hydraulic driving system and they are the latest iron workers in our country, various metal plate, square bar, Round bar, angle, channel and joist can be cut, punched and notched on the machine. It is also equipped with a stop device for cutting.
Q35Y Series Hydraulic Ironworker Technical Specifications
| Model | Q35Y-16 | Q35Y-20 | Q35Y-25 | Q35Y-30 |
| Punching Pressure(T) | 60T | 90T | 110T | 140T |
| Max Shearing Thickness(mm) | 16 | 20 | 25 | 30 |
| Plate Strength(N/mm2) | ≤450 | ≤450 | ≤450 | ≤450 |
| Shearing Angle | 7° | 8° | 8° | 8° |
| Flat Bar(H*W)(mm) | 16×250 | 20×330 | 25×330 | 30×355 |
| 8×400 | 10×480 | 16×660 | 20×600 | |
| Ram Stroke(mm) | 80 | 80 | 80 | 80 |
| Number of Stroke | 6 | 8 | 6 | 6 |
| (times/min) | ||||
| Throat Depth(mm) | 300 | 355 | 400 | 600 |
| Punching Thickness | 16 | 20 | 25 | 26 |
| (mm) | ||||
| Max Punching Diameter(mm) | 25 | 30 | 35 | 38 |
| Main Motor Power (kw) | 4 | 5.5 | 7.5 | 11 |
| Overall Dimensions | 1650×760×1780 | 1850×800×1930 | 2350×960×2100 | 2620×980×2380 |
| L×W×H(mm) | ||||
| Weight(kg) | 1600 | 2300 | 4500 | 6800 |
