Marine Equipment

SWCM-50 Sewage Treatment Plant

Product Description: The SWCM type marine sewage treatment plant uses activated sludge, contact oxidizing and principle of biologic membrane to digest the organic pollutant, which ...

Sewage Treatment Plant3 Photos ISO9001 Supplier

Loading product images...

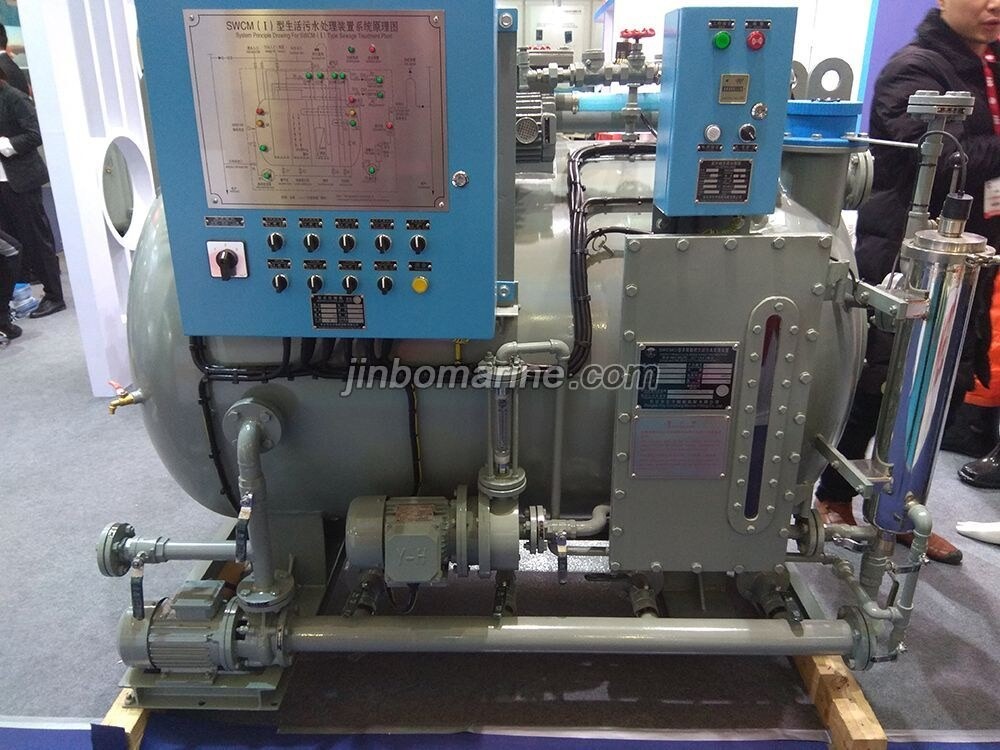

SWCM-50 Sewage Treatment Plant - Image 1

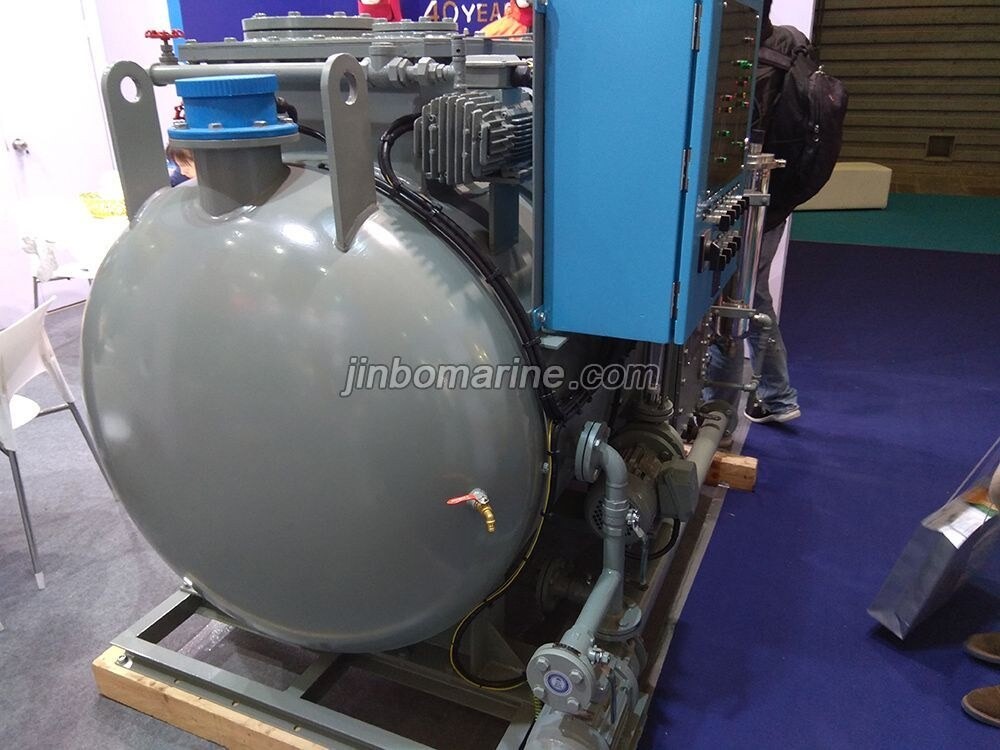

SWCM-50 Sewage Treatment Plant - Image 2

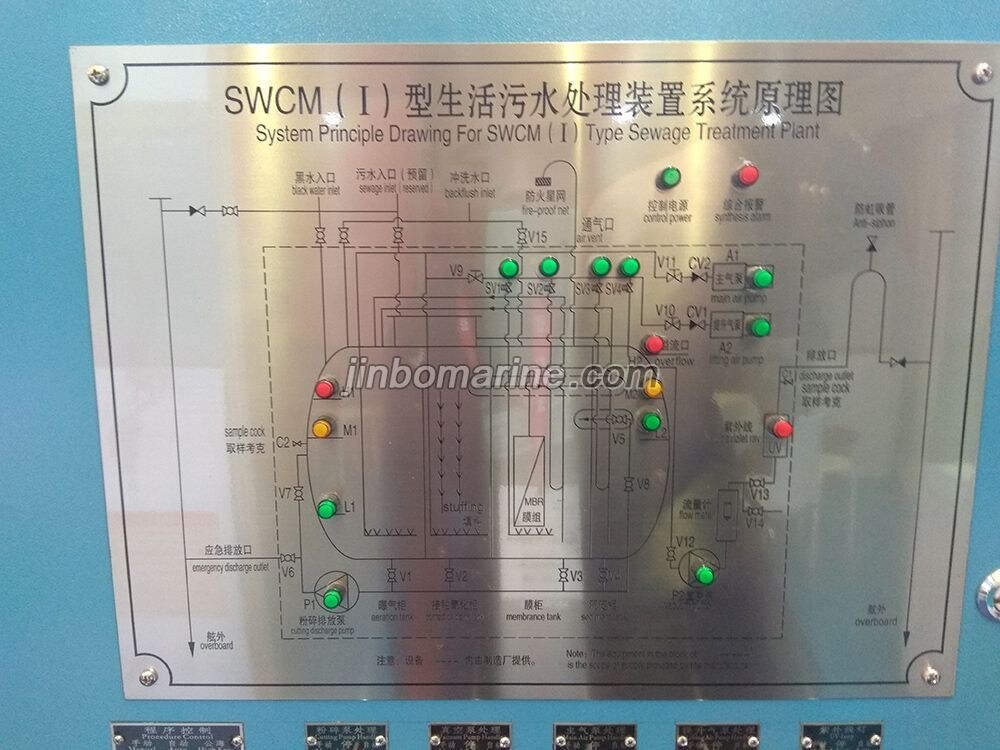

SWCM-50 Sewage Treatment Plant - Image 3

SWCM-50 Sewage Treatment Plant thumbnail 1

SWCM-50 Sewage Treatment Plant

Category: Sewage Treatment Plant

Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS

FOB Price: Get Latest Price Now

Warranty: 12 Months unless specified otherwise

Place of Origin: China

Request a Quote PDF Datasheet

We can supply according to your requirement.

Product Description:

The SWCM type marine sewage treatment plant uses activated sludge, contact oxidizing and principle of biologic membrane to digest the organic pollutant, which can treat sewage effectively and reach at the IMO new effluent standard or other stricter requirements.

Working Principle:

The device adopts activated sludge, contact oxidizing and principle of biologic membrane to digest the organic pollutant, which can treat sewage effectively andmeetthe IMO new effluent standard or other stricter requirements.

Technical Data:

Model	LOAD			Rated capacity（men）	Max capacity（men）	External dimension（mm）L×W×H	weight
Model	Average load（L/d）	Peak load（L/h）	Organic load(kgBOD5/d）	Rated capacity（men）	Max capacity（men）	External dimension（mm）L×W×H	Dry weight（kg）	Wet weight（kg）
SWCM-10	840	105	0.42	10	12	1510×1200x1300	900	1775
SWCM-15	1190	149	0.595	15	17	1870x1200x1400	1000	2283
SWCM-20	1540	193	0.77	20	22	1745x1400x1525	1000	2640
SWCM-25	1890	237	0.945	25	27	1935x1400x1560	1100	2740
SWCM-30	2310	289	1.155	30	33	1985x1500x1650	1200	3500
SWCM-40	3080	385	1.54	40	44	2400x1600x1700	1300	4400
SWCM-50	3780	473	1.89	50	54	2410x1700x1850	1450	5073
SWCM-60	4480	560	2.24	60	64	2670x1700x1850	1600	5270
SWCM-80	6020	753	3.01	80	86	2780x1900x2050	1850	6517
SWCM-100	7700	963	3.85	100	110	2795x2000x2200	2200	8268
SWCM-120	9100	1138	4.55	120	130	3000x2000x2200	2300	9166
SWCM-150	11200	1400	5. 6	150	160	3050x2200x2300	2800	11340
SWCM-200	14700	1838	7.35	200	210	3600x2200x2350	3000	13267
SWCM-250	18200	2275	9.1	250	260	3880x2400x2570	3300	16538
SWCM-300	23100	2888	11.55	300	330	4750x2400x2570	3700	20357
SWCM-400	30800	3850	15.4	400	440	5950x2400x2570	4200	25417
