Scale Hand Pallet Truck
Scale Hand Pallet Truck Modle Number FG-2.0 FG-2.5 FG-3.0 Rated Capacity(...
Loading product images...
PDF Datasheet
China Scale Hand Pallet Truck:

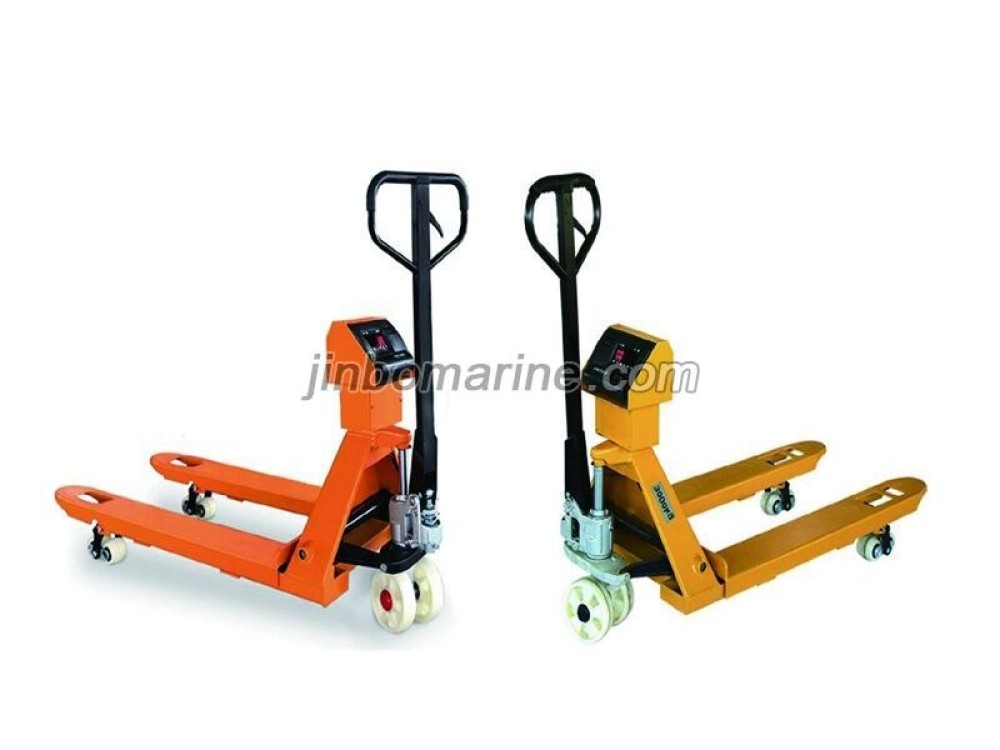

Scale Hand Pallet Truck
| Modle Number | FG-2.0 | FG-2.5 | FG-3.0 |
| Rated Capacity(kg) | 2000 | 2500 | 3000 |
| Min. Fork Height(mm) | 85 | ||
| Max. ForkHeight(mm) | 195 | ||
| Lifting Height(mm) | 110 | ||
| Fork Length(mm) | 1150/1220 | ||
| Single Fork Width(mm) | 160 | ||
| Width Overall Forks(mm) | 550/685 | ||
| Fork Wheel (tandem)(mm) | Φ80*70 | ||
| Steering Wheel(mm) | Φ180*50 | ||
| Self Weight(kg) | 120-130 | ||
| Qty/20 Feet Container(pcs) | 144/180 | ||
