Marine Equipment

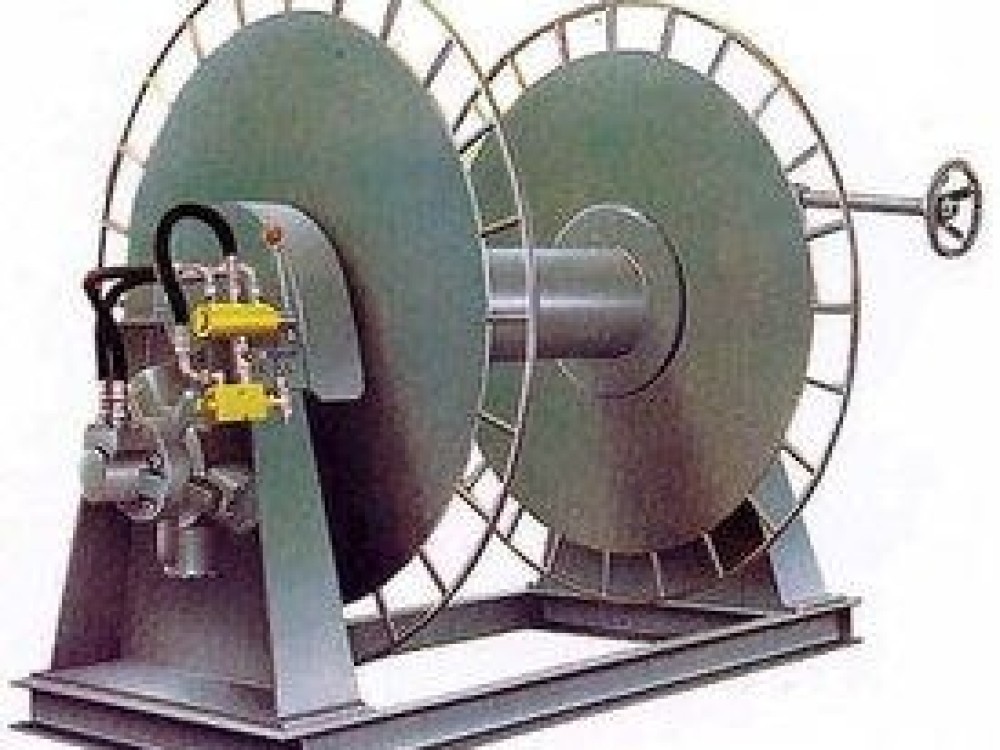

Sea Anchor Winch For Fishing Boat
Sea Anchor Winch Widely used for Fishing boat, large drum capacity, hydraulic system to keep the winch smooth and safety. Specification Model ...
Loading product images...
Sea Anchor Winch For Fishing Boat
PDF Datasheet
We can supply according to your requirement.
Sea Anchor Winch
Widely used for Fishing boat, large drum capacity, hydraulic system to keep the winch smooth and safety.
Specification
| Model | T1 | T2 |
| Working load(1 layer) Main | 150/75kn | 100kn |
| Nominal Speed (1 layer) | 12/24 m/min | 15 m/min |
| Rope diameter(mm) | 100 mm | 100mm |
| Drum Capacity | 300m | 300 |
| Working load(1 layer) Aux | 150/75kn | 100kn |
| Nominal speed (1 layer) | 12/24 m/min | 15 m/min |
| Rope diameter(mm) | 50mm | 50mm |
| Capacity | 400 | 400m |
| Working pressure | 150bar | 140bar |
| Flow rate | 161 L/min | 130.6 L/min |
