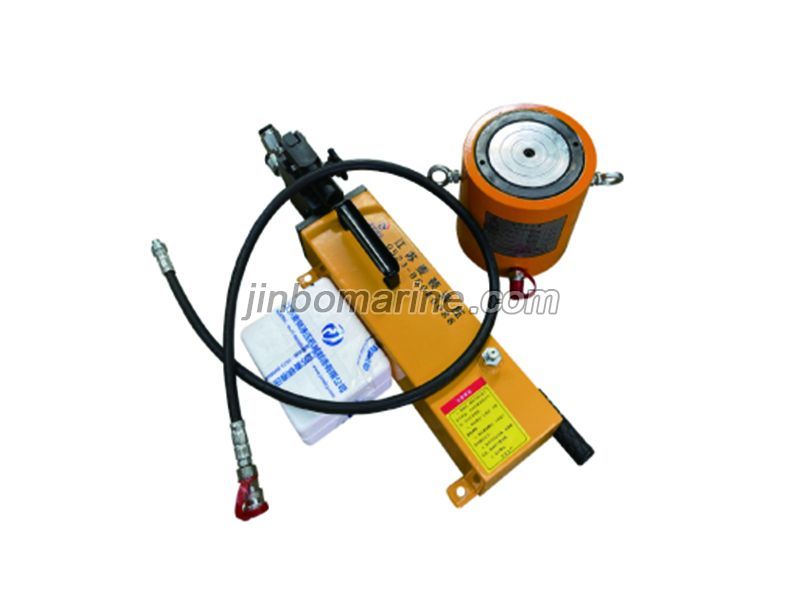

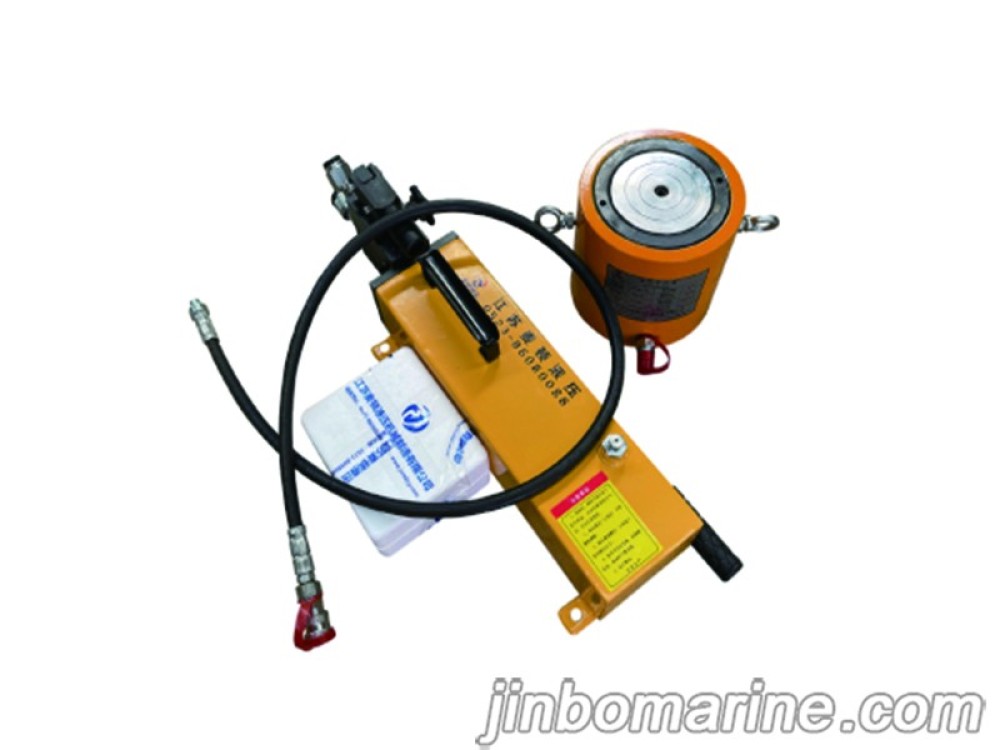

Single-Acting Short, Medium And Long Jacks
Single-Acting Short, Medium And Long Jacks Model TCapacity cm²Area LOilcapacity mmHeight mmMaxHeight mmOutsidedia mmCylinderboredia mmPlun...
Loading product images...
Single-Acting Short, Medium And Long Jacks
PDF Datasheet
We can supply according to your requirement.
China Single-Acting Short, Medium And Long Jacks:
Single-Acting Short, Medium And Long Jacks
| Model | T Capacity | cm² Area | L Oil capacity | mm Height | mm Max Height | mm Outside dia | mm Cylinder boredia | mm Plunger dia | mm oil inlet thread | mm bulge height | kg Weight |
| RSC1050 | 10 | 13.8 | 0.073 | 107 | 157 | 64 | 46 | 40 | 3/8′-19 | 17 | 3 |
| RSC10100 | 10 | 13.8 | 0.145 | 155 | 255 | 64 | 46 | 40 | 3/8′-19 | 17 | 3.5 |
| RSC10150 | 10 | 13.8 | 0.22 | 206 | 361 | 64 | 46 | 40 | 3/8′-19 | 17 | 4.3 |
| RSC2050 | 20 | 26.4 | 0.14 | 107 | 157 | 80 | 60 | 50 | 3/8′-19 | 20 | 5.5 |
| RSC20100 | 20 | 26.4 | 0.28 | 155 | 255 | 80 | 60 | 50 | 3/8′-19 | 20 | 3 |
| RSC20150 | 20 | 26.4 | 0.42 | 206 | 361 | 80 | 60 | 50 | 3/8′-19 | 20 | 10 |
| RSC3050 | 30 | 41.8 | 0.208 | 112 | 162 | 100 | 80 | 70 | 3/8′-19 | 20 | 6.8 |
| RSC30100 | 30 | 41.8 | 0.416 | 160 | 260 | 100 | 80 | 70 | 3/8′-19 | 20 | 12.5 |
| RSC30150 | 30 | 41.8 | 0.624 | 211 | 361 | 100 | 80 | 70 | 3/8′-19 | 20 | 14.5 |
| RSC5050 | 50 | 78.5 | 0.35 | 112 | 162 | 130 | 100 | 80 | 3/8′-19 | 26 | 9.8 |
| RSC50100 | 50 | 78.5 | 0.7 | 160 | 260 | 130 | 100 | 80 | 3/8′-19 | 26 | 18 |
| RSC50150 | 50 | 78.5 | 1.06 | 211 | 361 | 130 | 100 | 80 | 3/8′-19 | 26 | 22 |
| RSC10050 | 100 | 103.8 | 0.66 | 122 | 172 | 180 | 125 | 110 | 3/8′-19 | 28 | 24 |
| RSC100100 | 100 | 103.8 | 13.2 | 171 | 271 | 180 | 125 | 110 | 3/8′-19 | 28 | 30 |
| RSC100150 | 100 | 103.8 | 17.3 | 221 | 371 | 180 | 125 | 110 | 3/8′-19 | 28 | 45 |
