TEB604 Differential Pressure Switch
TEB604 switch is capable to sense tiny pressure change and widely used to control the flue of aerator, to monitor and fan and air conditioner; It is also suit for over heating protection and...
Loading product images...

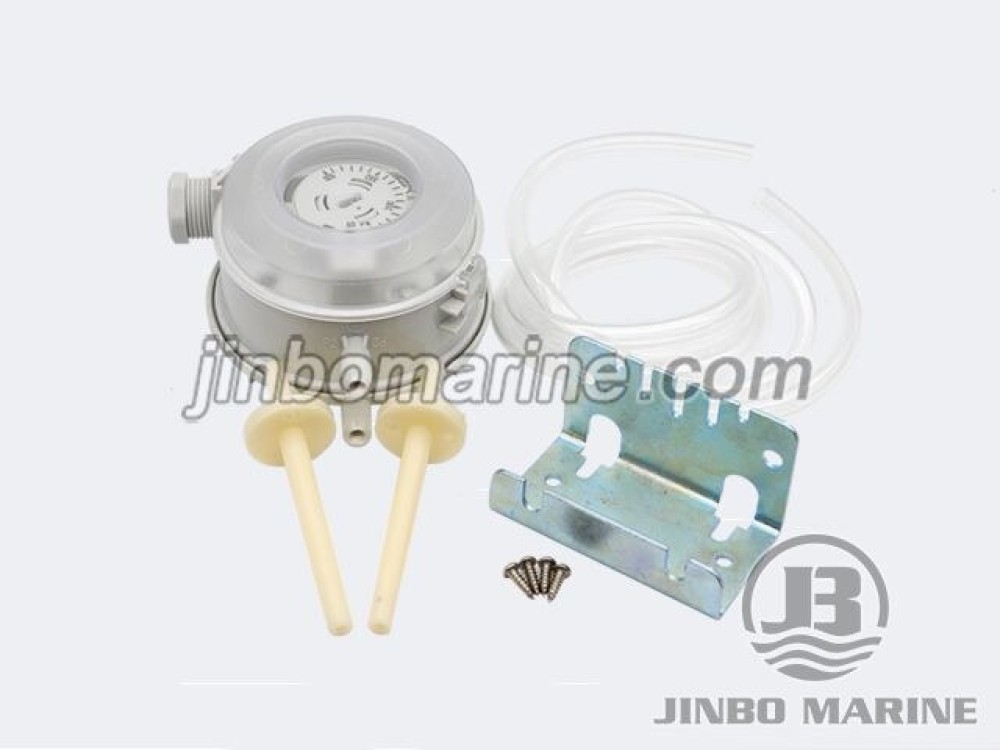

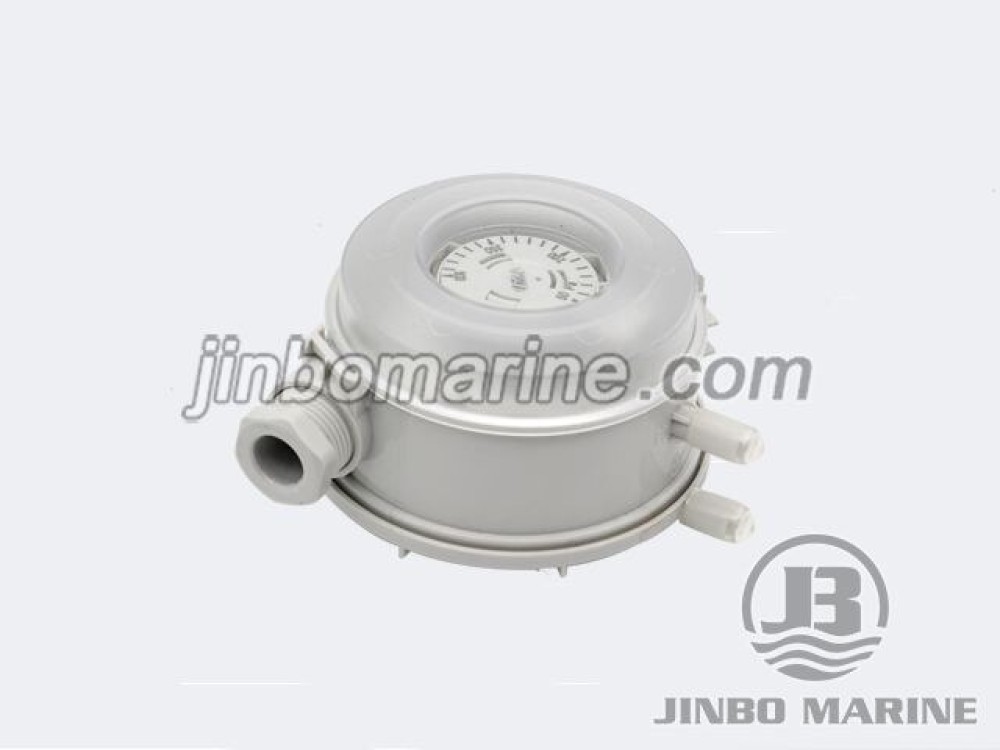

TEB604 Differential Pressure Switch
PDF Datasheet
We can supply according to your requirement.
China TEB604 Differential Pressure Switch:
TEB604 switch is capable to sense tiny pressure change and widely used to control the flue of aerator, to monitor and fan and air conditioner; It is also suit for over heating protection and frost protection in industrial cooling system. Due to its outstanding design, the setpoint can been adjust visually.
SPECIFICATION:
| Model | TEB604 |
| Range | 30~1000Pa |
| Media | Air, non-combustible and non-aggressive gases. |
| Max Operating | 10kPa |
| Mounting | Diaphragm in any vertical plane |
| Degree of Protection | IP54(With Cover), IP00(without Cover) |
| Operating Temperature | -40℃ to + 85℃ |
| Optional Range | Model: 604-0 |
| Differential pressure range: 20-200 Pa | |
| Model: 604-1 | |
| Differential pressure range: 20-300 Pa | |
| Model: 604-2 | |
| Differential pressure range: 30-300 Pa | |
| Model: 604-3 | |
| Differential pressure range: 50-500 Pa | |
| Model: 604-5 | |
| Differential pressure range: 100-1000 Pa | |
| Contact Arrangement | SPDT |
| Electrical Rating | Resistance: initaial:＜50 milliohms |
| Current: 1.5A(0.4A)/250V | |
| Terminal | 6.3mm×0.8blade or screw terminal |
| Connection | Φ6.0 mm for tube connection |
Conversion: 1in/ H₂O =249Pa 1mbar=100Pa
