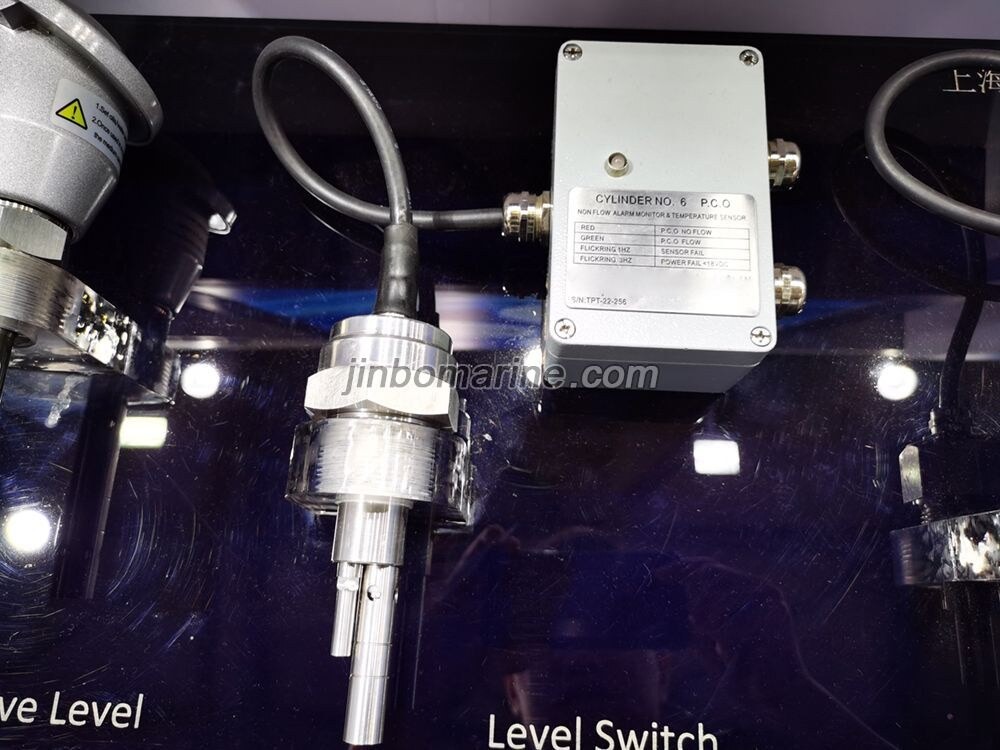

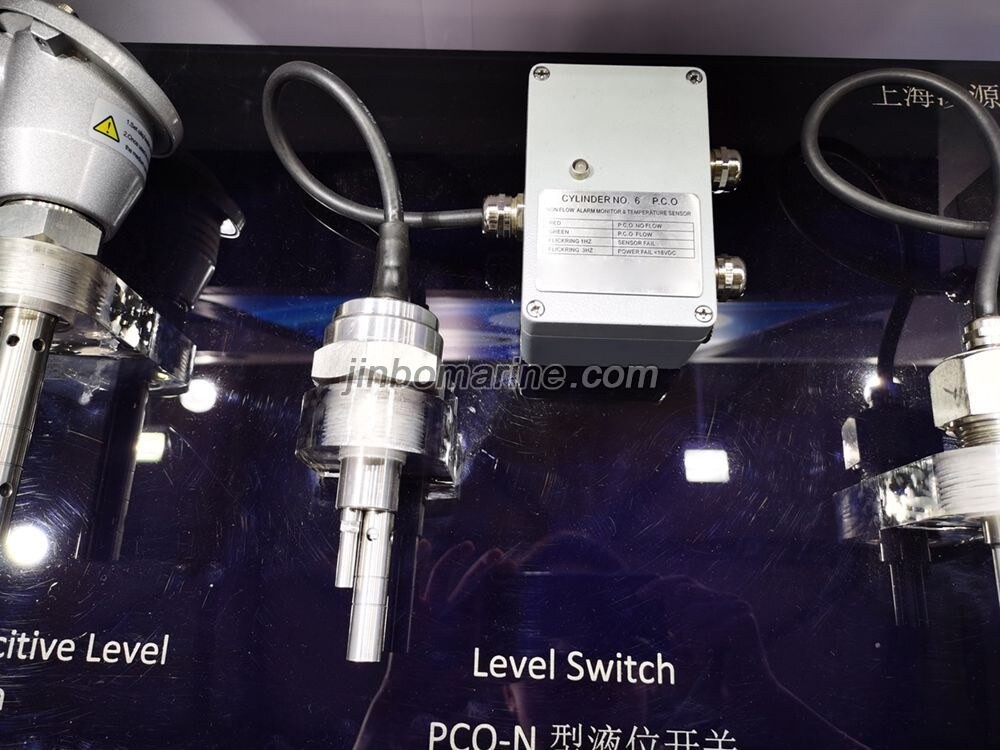

TPT-N Level Switch
The TPT-N is a level switch integrated with a high quality capacitive switch in one of its sensing probe. It detect sthe change in capacitance that occurs when an electrode surrounded by air...
Loading product images...
PDF Datasheet
China TPT-N Level Switch:
The TPT-N is a level switch integrated with a high quality capacitive switch in one of its sensing probe. It detect sthe change in capacitance that occurs when an electrode surrounded by air is immersed into a liquid medium.This change in capacitance at the electrode of the sensor excites an oscillator. This signal is processed by a inner circuit , So as to control the opening or closing of therelay on the circuit board.At the same time, the level switch integrated a PT100 sensing device.
Technical specifications
| Power of supply | 19.5-28VDC | |
| Power consumption | <3W | |
| Relay alarm output | 30VDC/1A | |
| Material | Sensor probe | Stainless steel AISI316 |
| Junction box | Cast Aluminum | |
| Cable | Screened,6x0.5mm2 | |
| Medium | Piston cooling oii and Servo oil | |
| Sensor Protection grade | IP67 | |
| Junction box Protection grade | IP65 | |
Temperature sensor
| Element | Pt100,3-wires |
| Operating temperature | 0--100C |
| Class | (EN 60751) |
