Marine Equipment
Tank Cleaning Machine
Marine tank cleaning machine with high pressure coupling. Marine tank cleaning machine with flange. It is small in size,light in weight,easy to operate and maintain. It ca...
PDF Datasheet
China Tank Cleaning Machine:

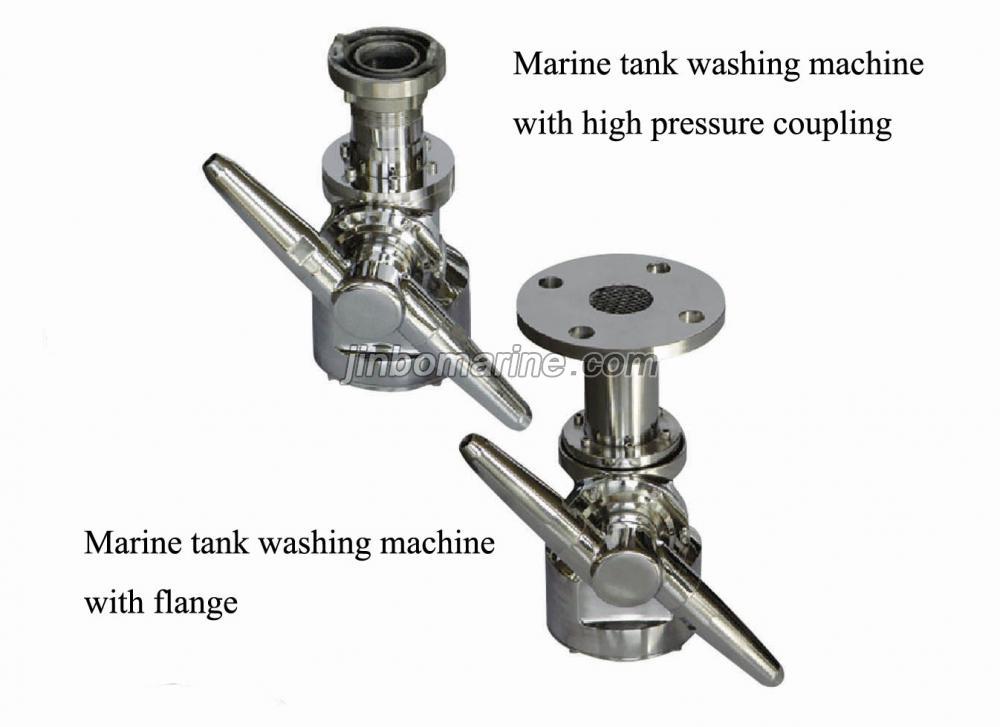

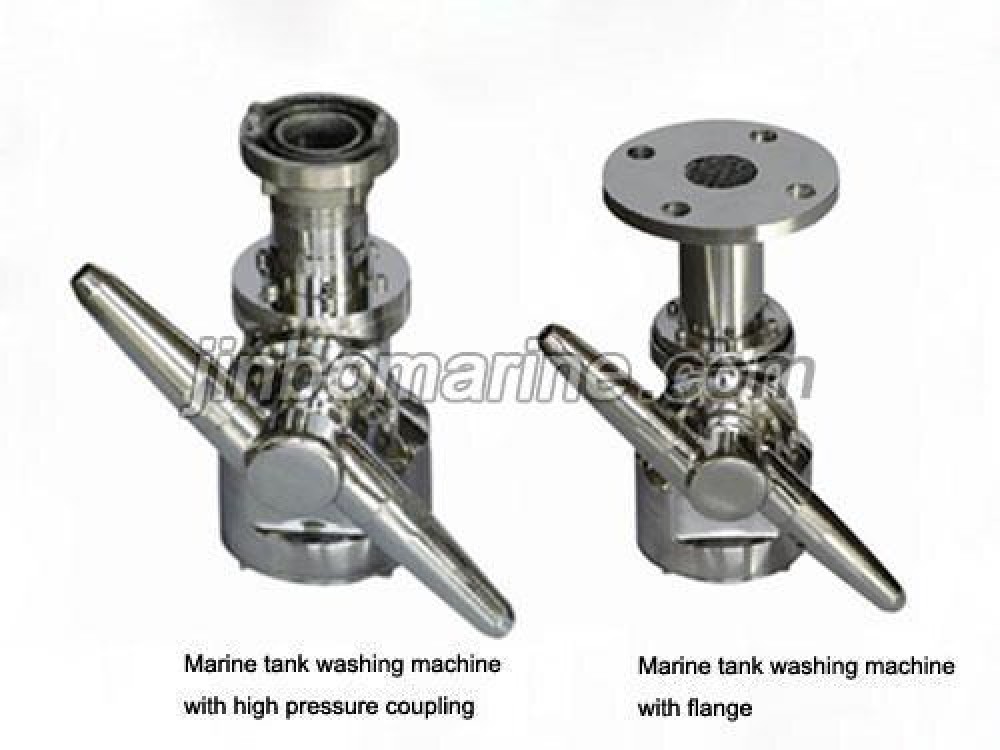

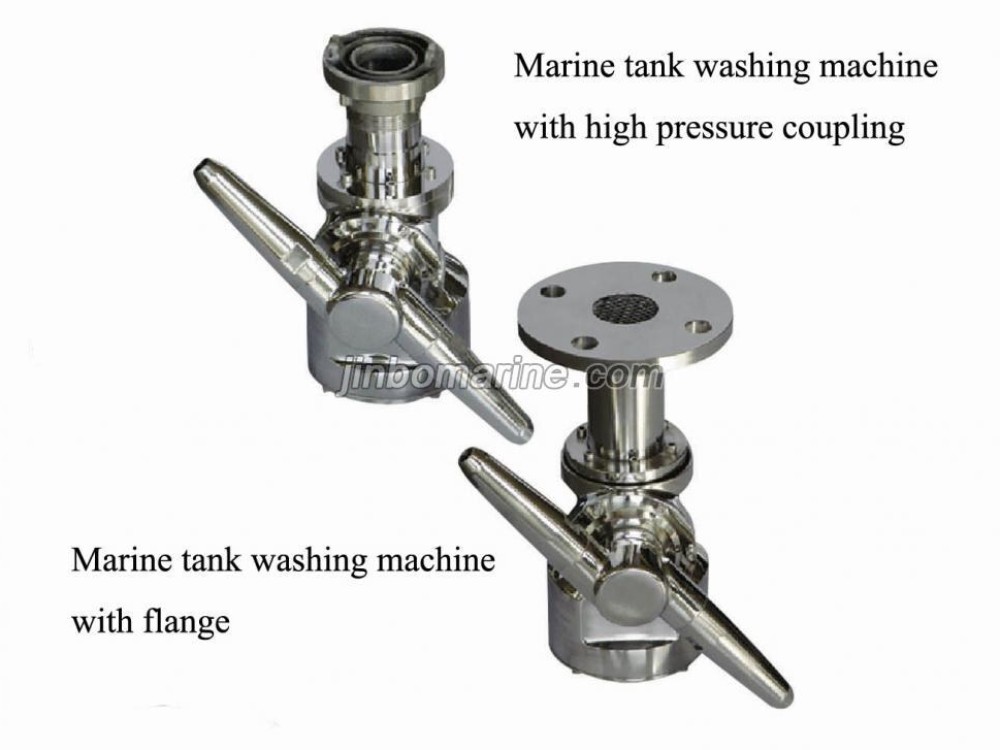

Marine tank cleaning machine with high pressure coupling.
Marine tank cleaning machine with flange.
It is small in size,light in weight,easy to operate and maintain.
It can be operated a s permanently installed system or as a portable unit.
Anti-corrosive products are made of copper alloy or stainless steel which is available for choices.
Specification:
| Model | Nozzle (mm) | Working Pressure | Flow （m³/h） | Range | ||
| Rated | Deviation | Rated | Deviation | |||
| YQJ7B(Q)-50 | 7 | 0.8 | 12 | ±5% | 10.5 | 0-10% |
| 0.7 | 11 | 9.5 | ||||
| 0.6 | 10 | 8.5 | ||||
| YQJ8B(Q)-50 | 8 | 0.8 | 13 | ±5% | 12 | 0-10% |
| 0.7 | 12 | 11 | ||||
| 0.6 | 11 | 10 | ||||
| YQJ9B(Q)-50 | 9 | 0.8 | 14 | ±5% | 13 | 0-10% |
| 0.7 | 13 | 12 | ||||
| 0.6 | 12 | 11 | ||||
| YQJ10B(Q)-50 | 10 | 0.8 | 16 | ±5% | 14 | 0-10% |
| 0.7 | 15 | 13 | ||||
| 0.6 | 14 | 12 | ||||
| YQJ11B(Q)-60 | 11 | 0.8 | 26 | ±5% | 15 | 0-10% |
| 0.7 | 24 | 13 | ||||
| 0.6 | 21 | 12 | ||||
| YQJ12B(Q)-60 | 12 | 0.8 | 29 | ±5% | 16 | 0-10% |
| 0.7 | 27 | 14 | ||||
| 0.6 | 24 | 13 | ||||
| YQJ13B(Q)-60 | 13 | 0.8 | 33 | ±5% | 18 | 0-10% |
| 0.7 | 30 | 16 | ||||
| 0.6 | 27 | 15 | ||||
| YQJ14B(Q)-60 | 14 | 0.8 | 36 | ±5% | 20 | 0-10% |
| 0.7 | 33 | 18 | ||||
| 0.6 | 30 | 16 | ||||
