UQK-61 Magnetic Float Control Switch
UQK-61 Magnetic float control switch is using reed and inches switch of floating-ball to send out contact signal. Because of no movable mechanism on the outside, it’s especially suitable for...
Loading product images...

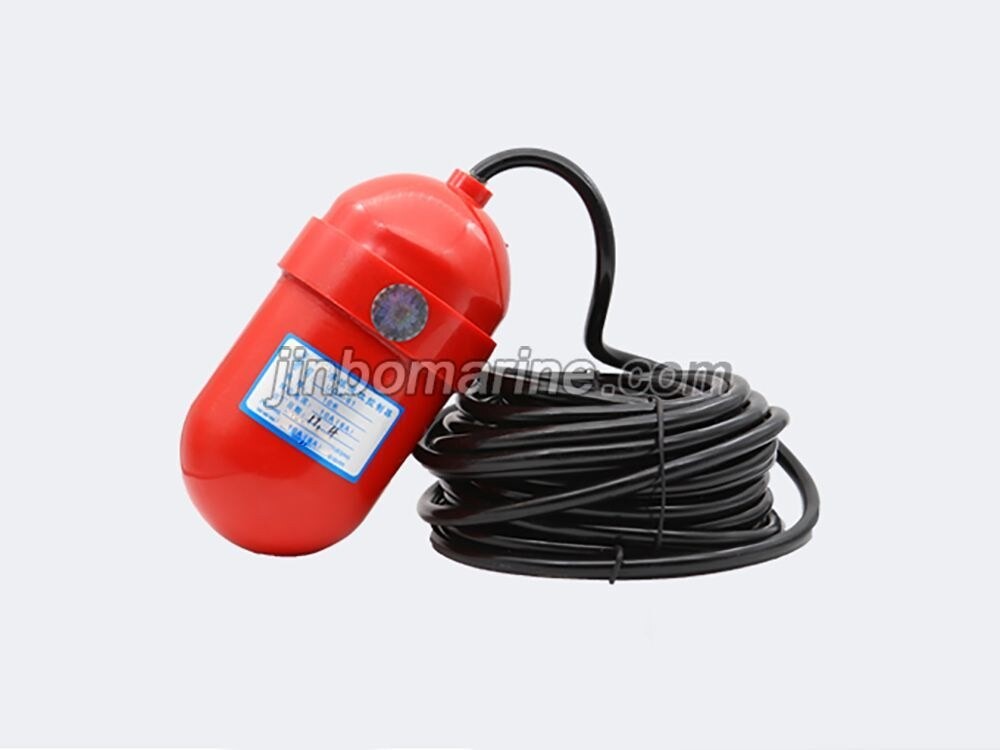

UQK-61 Magnetic Float Control Switch
PDF Datasheet
We can supply according to your requirement.
China UQK-61 Magnetic Float Control Switch:
UQK-61 Magnetic float control switch is using reed and inches switch of floating-ball to send out contact signal. Because of no movable mechanism on the outside, it’s especially suitable for the liquid with solid and semisolid floater and mucigen liquid such as sewer water, factory sewage.
Technical data:
| Model | Switch data | Main attachment | Application |
| UQK-611 | One point | Wire: Φ8, 5meters | Sewage with tiny floater |
| Span wire: Φ5, 6meters | |||
| Heavy punch, Clamp holder | |||
| UQK-612 | Two point | Wire: Φ8, 5meters(Each point ) | Industrial sewage and sanitary waste with a lot of floater |
| UQK-613 | Three point | Span wire: Φ5, 6meters | |
| UQK-614 | Four point | Junction box, Heavy punch, Clamp holder |
| Outline Dimension | Floating – ball: Φ8×172 |
| Junction box: The max external diameter is Φ205, the height is 142. | |
| Size of mounting hole: Φ170, 4-Φ18 | |
| Output Singal | 1. Contact output of REED.( REED imports from abroad ) |
| 2. Contact output of inches switch. | |
| Contact Form | (NO) or (NC) |
| Contact Rating | 1. working voltage: 220VAC |
| working current: 1A | |
| 2. Contact output of inches switch: 5A | |
| Contact Endurance | 2×106 |
| Medium temperature | -10℃~+80℃（ABS） -10℃~+150℃(Stainless steel) |
| Adjustable range | 0.3m~10m |
