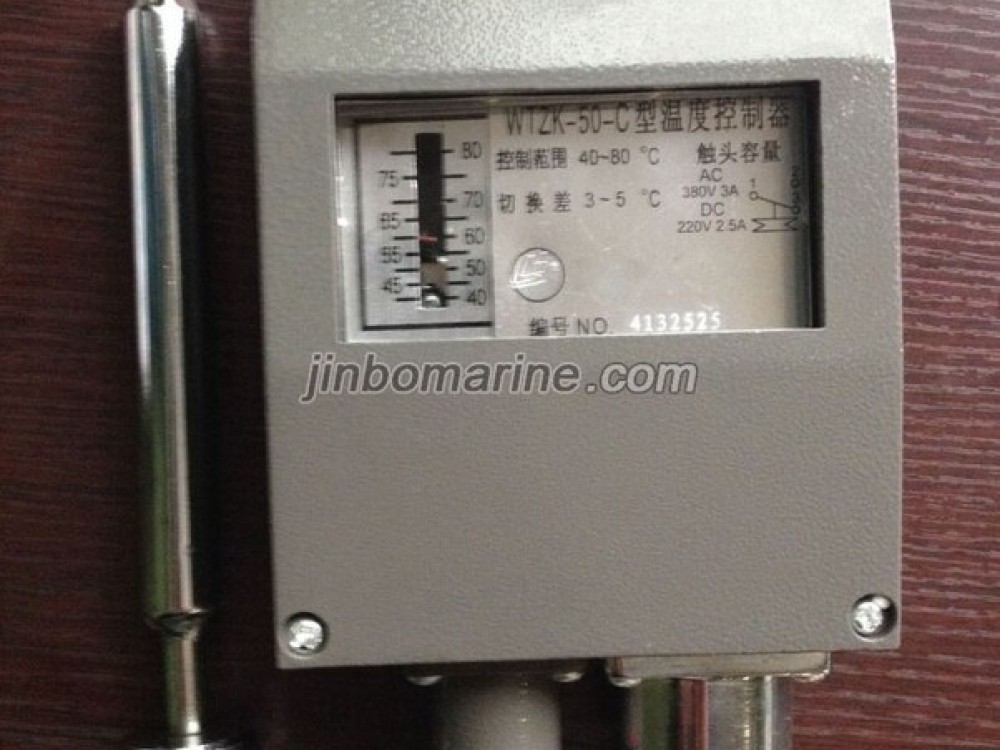

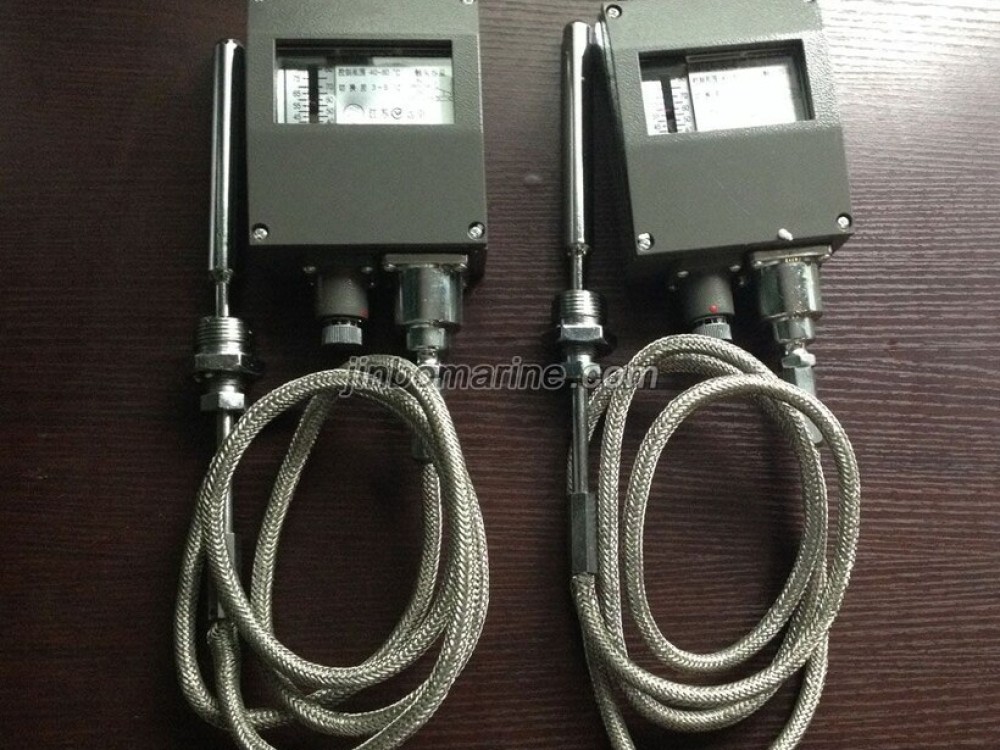

WTZK-50-C Temperature Controller
PDF Datasheet
We can supply according to your requirement.
Product Description:
According to the change of controlled medium temperature, the temperature controller can open or cloase the electric circuit.
It can be used In ship,freeze equipment or other industrial equipment,carry two position controlling to the temperature of gas,liquid or steam.
Main Technical Specification:
| Item No. | Temperature regulated range(℃) | Adjustment range of differential gap(℃) | Error or set value(℃) | Error of repeatiblity(℃) | Contact capacity | Protection |
| 1 | -25~0 | 3~5 | ±2 | ≤2 | AC380V 3A DC220V 2.5A | IP44 |
| 2 | -0.5~15 | |||||
| 3 | 10~40 | |||||
| 4 | 40~80 | |||||
| 5 | 60~100 | ±3 | ||||
| 6 | 80~120 | |||||
| 7 | 110~150 | |||||
| 8 | 130~170 |
