XSQ20-10 Rotating Triphase Full‑Wave Bridge Rectifier Module
Rotating Triphase Full‑Wave Bridge Rectifier Module Size: Model XSQ20-10 Units Parameter IF(AV) 20 A IFSM 360 A VFM ≤1.5 V VRRM 100...
Loading product images...

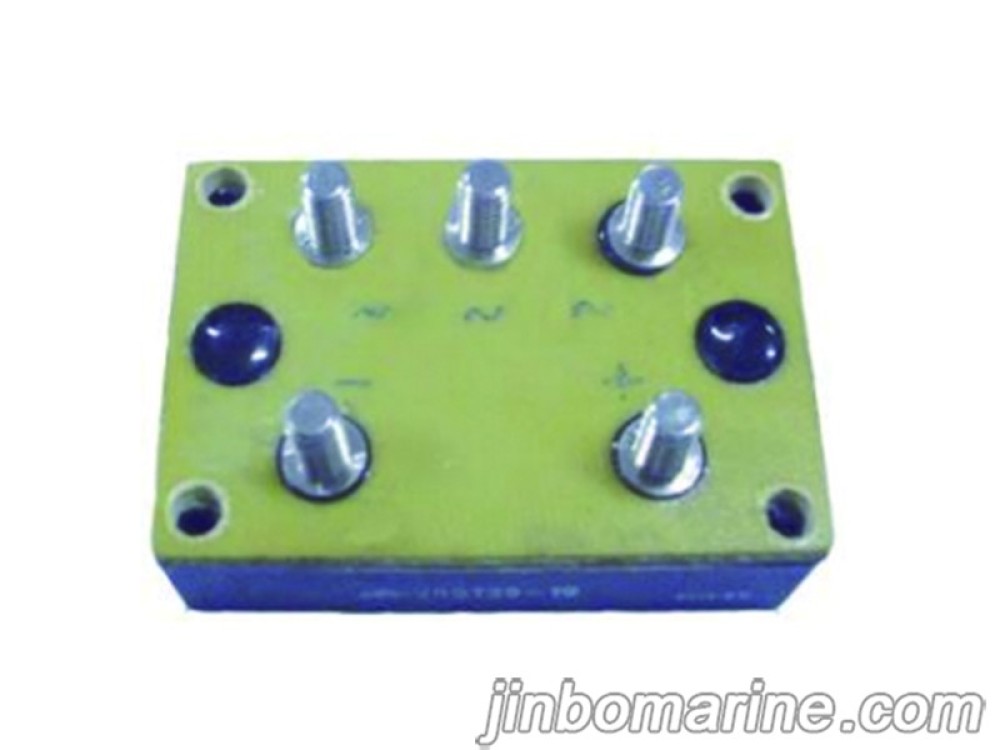

XSQ20-10 Rotating Triphase Full‑Wave Bridge Rectifier Module
PDF Datasheet
We can supply according to your requirement.
China XSQ20-10 Rotating Triphase Full‑Wave Bridge Rectifier Module:
Rotating Triphase Full‑Wave Bridge Rectifier Module

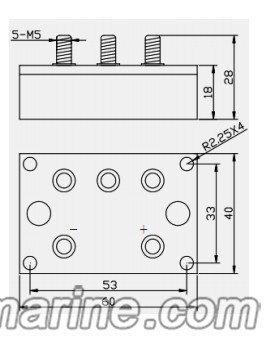

Size:
| Model | XSQ20-10 | Units | |
|---|---|---|---|
| Parameter | IF(AV) | 20 | A |
| IFSM | 360 | A | |
| VFM | ≤1.5 | V | |
| VRRM | 1000 | V | |
| IRRM | ≤2 | mA | |
| VISO | 2500 | V | |
| a | 850 | g | |
| Wt | 125 | g | |
| TJ | -40～125 | ℃ | |
| Tc | 80 | ℃ | |
