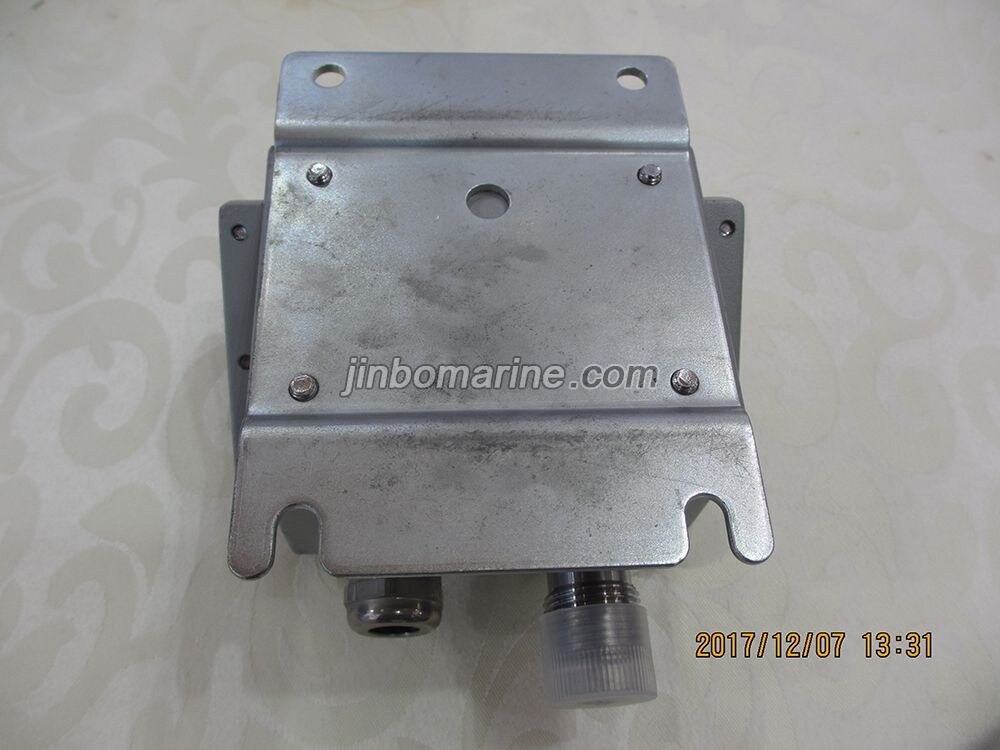

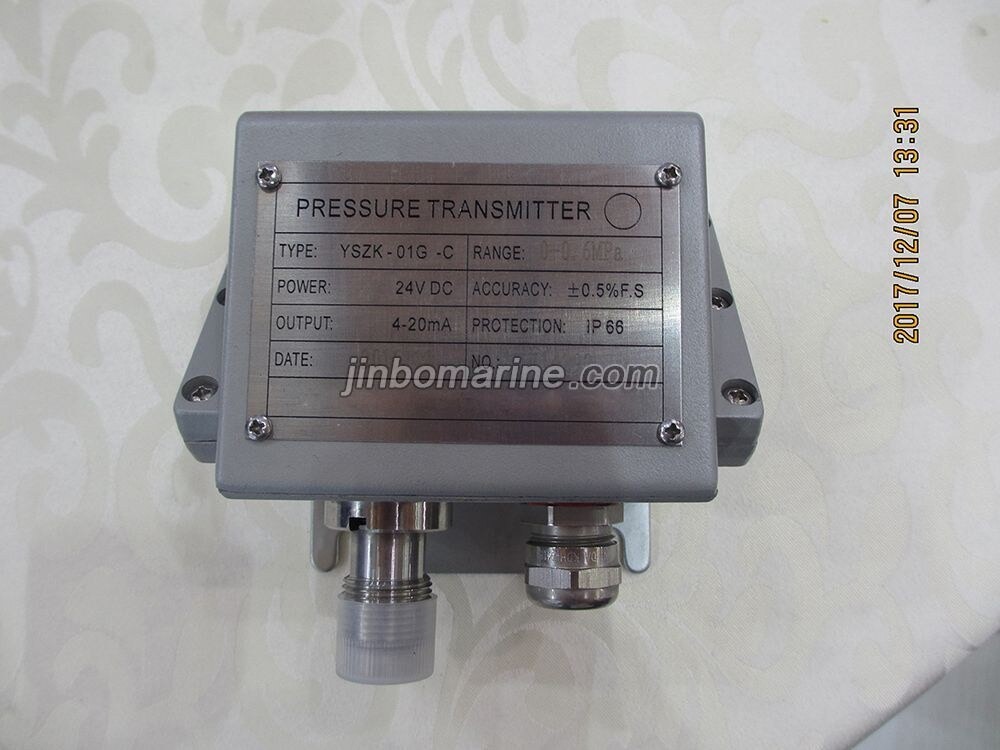

YSZK-01-G-C Gauge Type Pressure Transmitter
Product Description: YSZK type Pressure Transmitter consists of diffuse silieon pressure inductor and signal transform circuit,which have the characteristics of high measuring precisio...
YSZK-01-G-C Gauge Type Pressure Transmitter
PDF Datasheet
We can supply according to your requirement.
Product Description:
YSZK type Pressure Transmitter consists of diffuse silieon pressure inductor and signal transform circuit,which have the characteristics of high measuring precision,dependable stability,small volume,convenient installation. Used for measure pressure of kinds of medium of liquids,gas in ship and other industrial equipments.
Main Technical Specification:
Power voltage:DC24V
Measuring accuracy:±0.5% FS
Working temperature: -20~60 centigrade
Output signal: DC 4~20mA (two wires HART)
Protection:IP66
Over load:2.5 times of full range
Press connection size:M20x1.5, G 1/4" ,G1/2"
Explosion proof:Ex ia II CT4~T6 Ex d II CT4~T6
Description:
| Type | Measuring range(Mpa) |
| Gauge type | -0.1~1,-0.1~0,0~0.1,0~0.16,0~0.25,0~0.40,0~0.6,0~1,0~1.6,0~2.5,o~4,0~6,0~10,0~16,0~25,0~40,0~60 |
| Absolute pressure type | 0~0.1,0~0.16,0~0.25,0~0.40,0~0.6,0~1,0~1.6,0~2.5,o~4,0~6,0~10,0~16,0~25,0~40,0~60 |
| Differential pressure type | 0~0.01，0~0.02，0~0.05，0~0.1,0~0.2,0~0.5,0~1,0~2. |
