A8-1H-40 Sliding Foundation

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China A8-1H-40 Sliding Foundation:

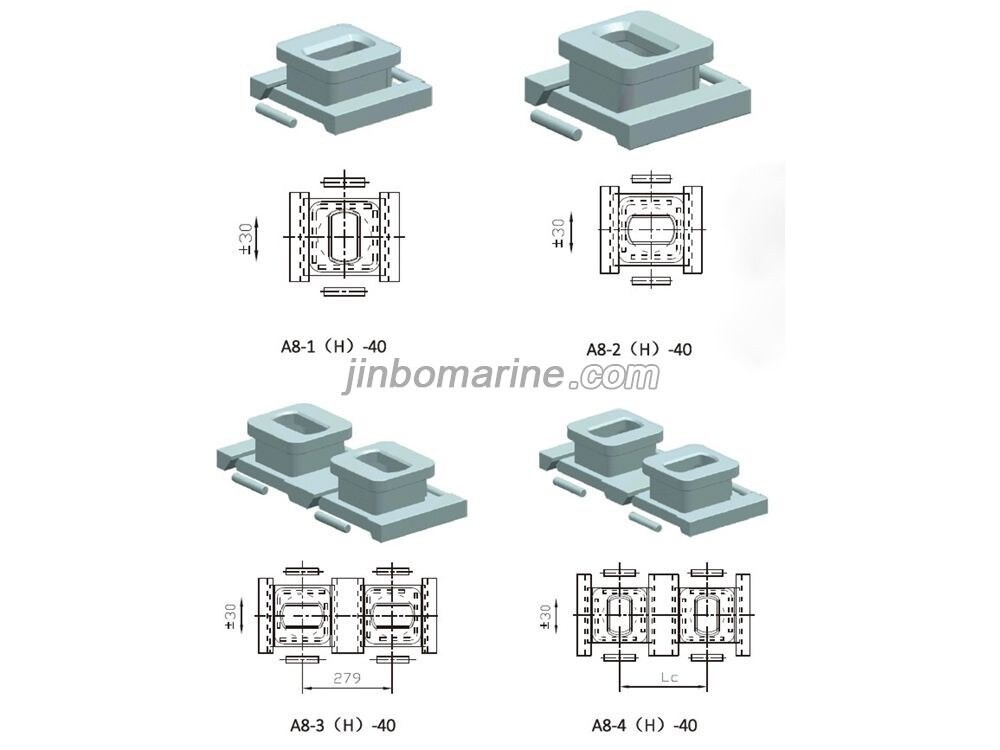

A8-1H-40 Sliding Foundation

Fixed foundation on deck.

Considering the transverse and longitudinal hifting of the hatch cover,The sliding foundation can be arrangedon the hatch cover.

Model Number Lc
A8-4-1H-40 203
A8-4-2H-40 216
A8-4-3H-40 258
A8-4-LcH-40 on request
H on request

Specification:

M.B.L.Tension:500kN
MB.L.shear:420kN
Finish:shop primer
Material: High tensile steel
Dimensions according to requirement.
