BGJ series induction heater
BGJ series induction heater BGJ induction heater consists of two parts:the main engine and the control box. The main engine is composed of iron core winding, iron core cross arm lif...
Loading product images...
BGJ series induction heater
PDF Datasheet
We can supply according to your requirement.
China BGJ series induction heater:
BGJ series induction heater

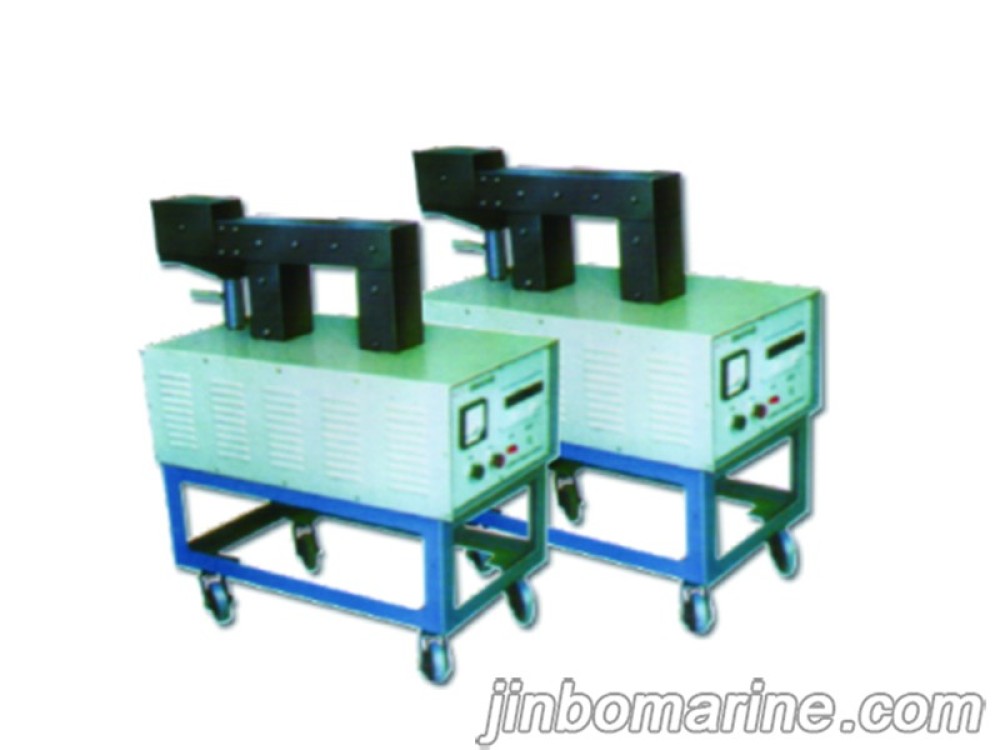

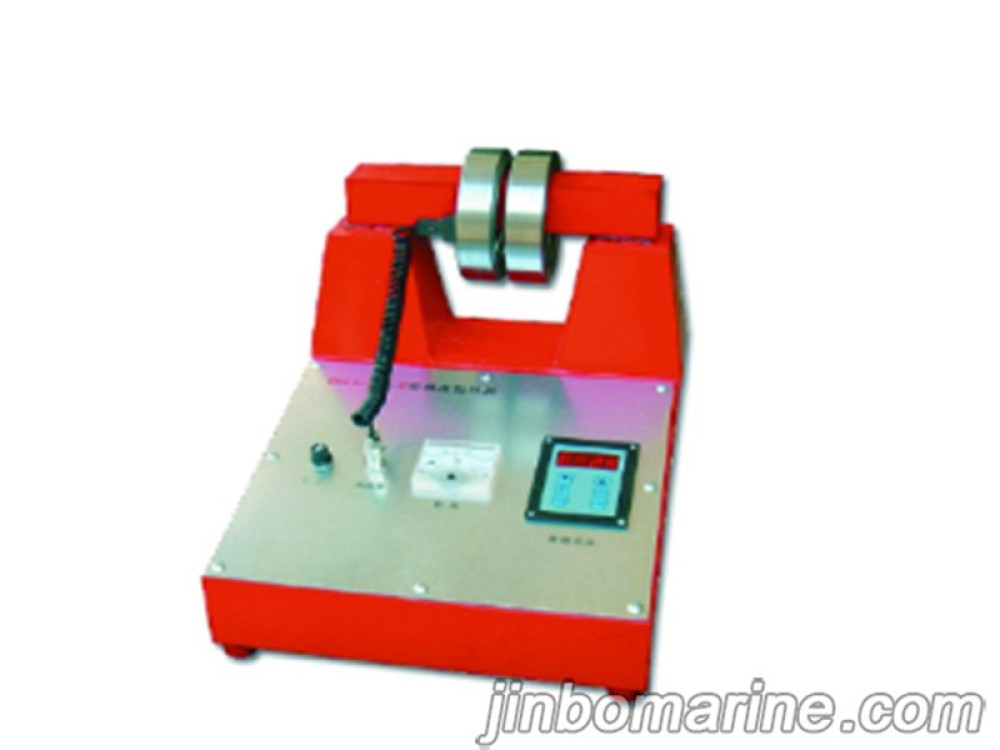

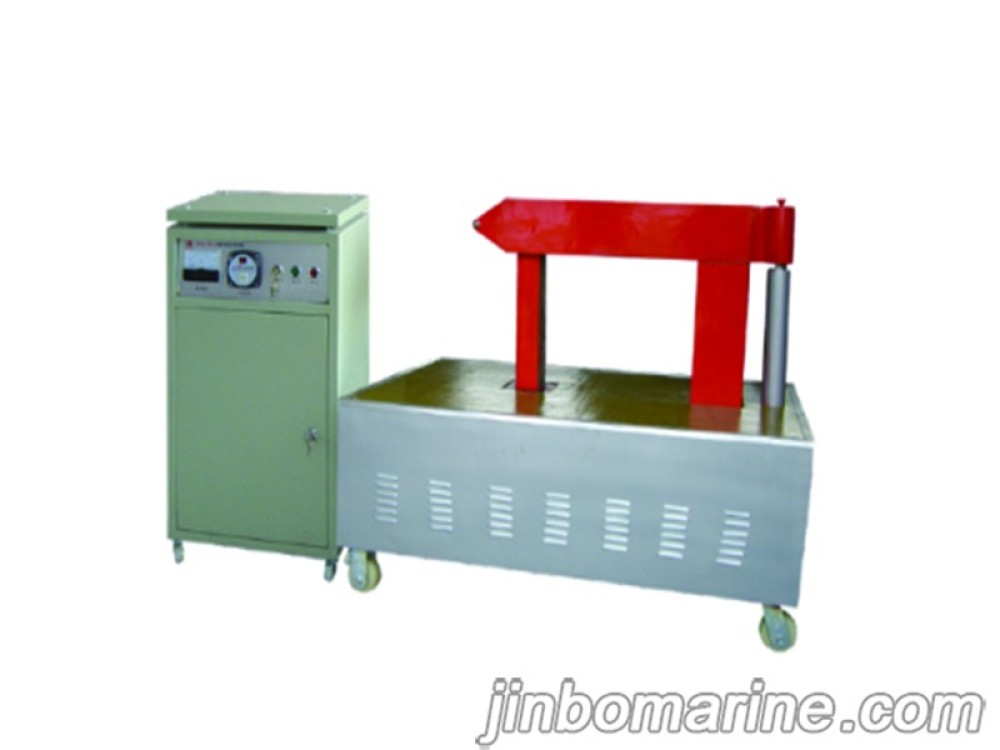

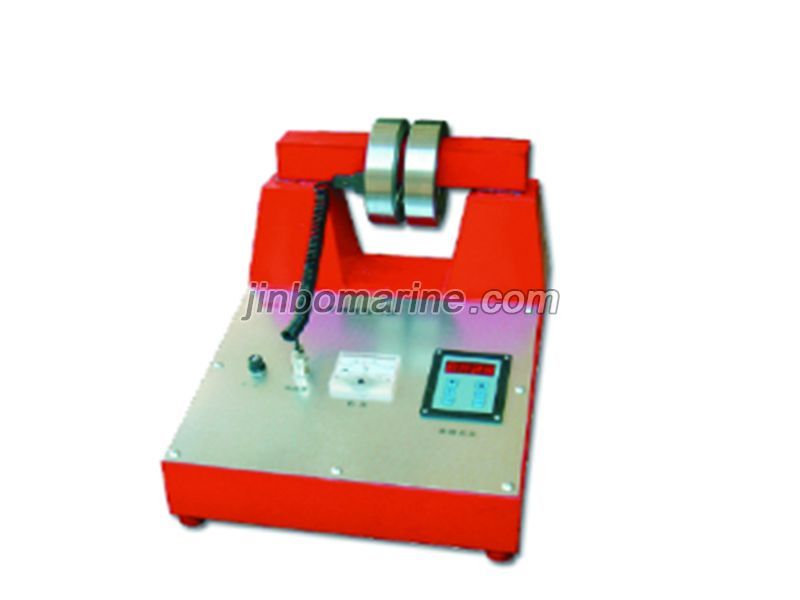

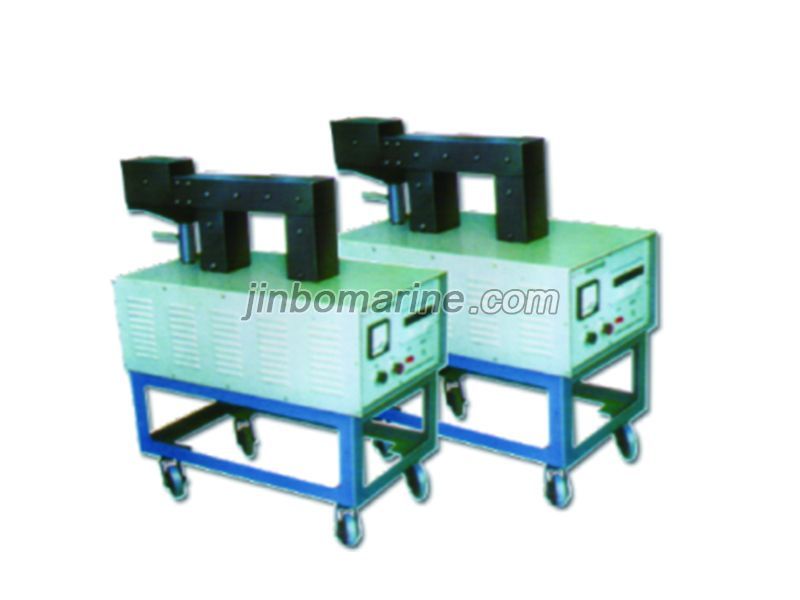

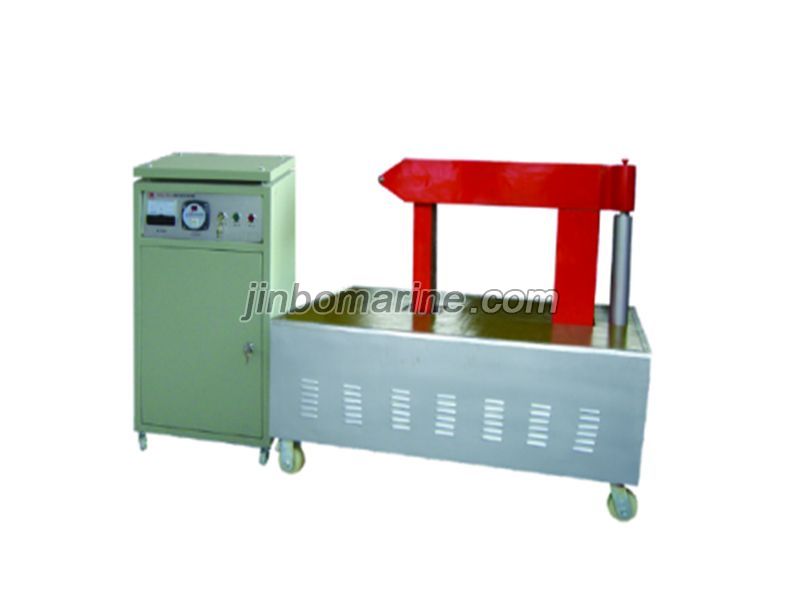

BGJ induction heater consists of two parts:the main engine and the control box. The main engine is composed of iron core winding, iron core cross arm lifting mechanism, and movable core column. The control method is equipped with time control, and the operator in the playground can observe the heating time.
BGJ-3 series induction heater technical parameters:
| Model | BGJ-2.2-2 | BGJ-3.5-3 | BGJ-7.5-3 | BGJ-20-3 | BGJ-60-3 | BGJ-75-3 | |
| Power | 2.2KVA | 3.5KVA | 7.5KVA | 20KVA | 60KVA | 75KVA | |
| Operating Voltage | 220V | 380V | 380V | 380V | 380V | 380V | |
| Rated current | 20A | 20A | 40A | 60A | 160A | 180A | |
| Control Method | 0-99min | 0-999s | 0-999s | 0-999s | 0-999s | 0-999s | |
| Aperture Reference | Φ30-Φ80 | Φ70-Φ120 | Φ100- ф170 | Φ160- Φ230 | Φ230- 300 | Φ300-Φ900 | |
| Workpiece width limit | 120mm | 170mm | 180mm | 220mm | 280mm | 350mm | |
| Heating temperature limit | 250℃ | 250°℃ | 250℃ | 250℃ | 250℃ | 250℃ | |
| Weight(kg) | 50 | 60 | 75 | 300 | 500 | 800 | |
| Dimension(mm) | 550*400*320 | 750*500*950 | 800*550*1000 | 1500*800*1300 | 1850*980*1250 | 1850*980*1250 | |
BGJ-4 Series Induction Heater Technical Parameters:
| Model | BGJ-20-4 | BGJ-60-4 | BGJ-75-4 | ||||
| Rated power | 20KVA | 60KVA | 75KVA | ||||
| Voltage | 380V(Two-phase electrical power) | 380V(Two-phase electrical power) | 380V(Two-phase electrical power) | ||||
| Current | 60A | 160A | 188A | ||||
| Max.heating time | 999S | 999S | 999S | ||||
| Workpiece outer diameter | 600mm | 800mm | 1000mm | ||||
| Internal diameter | 150mm-400mm | 180mm-600mm | 210mm-800mm | ||||
| Width | 300mm | 400mm | 520mm |
