Air Jack

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Air Jack:

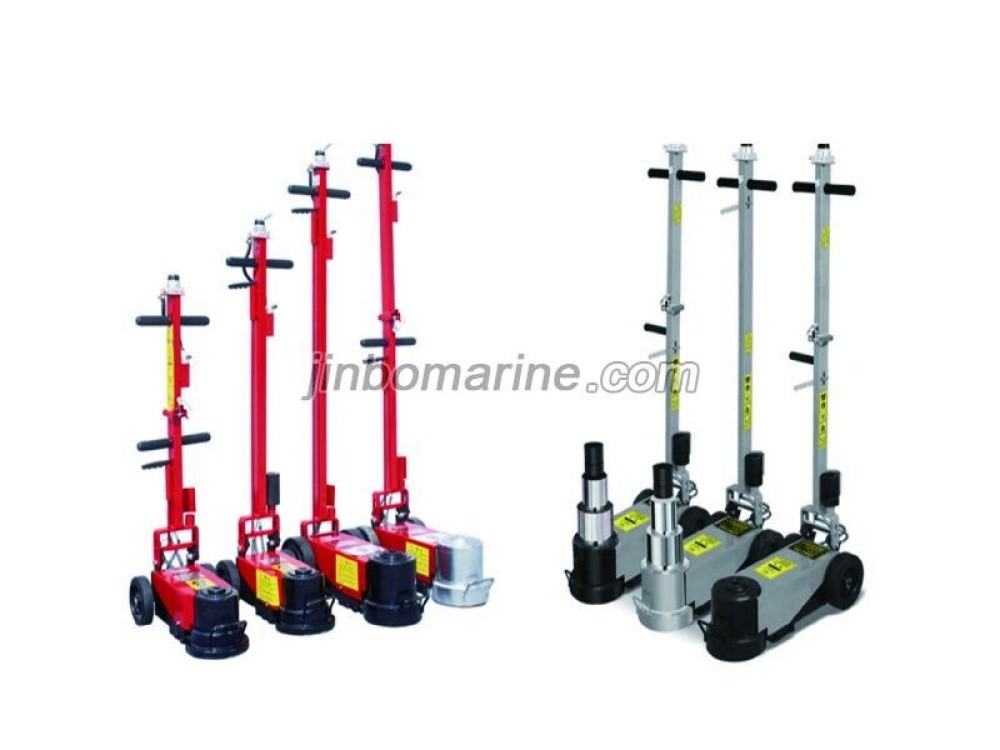

Air Jack

Model number FG50T-2 FG80T-2(National standard type) FG80T (Heavy type) FG80T-2 (Unfold type) FG80T-2(Fold type) FG80T-2 (Lowtype) FG80T-2(Extension type) FG100T-2 (Heavy type) FG100T-2(Heavy type) FG100T-2(Heavy type) FG120T FG150T
Lifting capacity 50T/25T 80T/40T 80T/40T 80T/40T 80T/40T 80T/40T 80T/40T 100T/50T 100T/50T 100T/50T 120T/60T 150T/75T
Air pressure 0.8-1.2 mpa 0.8-1.2 mpa 0.8-1.2 mpa 0.8-1.2 mpa 0.8-1.2 mpa 0.8-1.2 mpa 0.8-1.2 mpa 0.8-1.2 mpa 0.8-1.2 mpa 0.8-1.2 mpa 0.8-1.2 mpa 0.8-1.2 mpa
Min height 165mm 195mm 225mm 195mm 195mm 165mm 225mm 205mm 205mm 205mm 205mm 205mm
Lifting height 320mm 320mm 460mm 370mm 370mm 285mm 460mm 400mm 400mm 400mm 400mm 400mm
Stroke 155mm 175mm 120mm 235mm 195mm 195mm 195mm
Extension height 60mm/30mm 60mm/30mm 60mm/30mm 60mm/30mm 60mm/ 30mm 60mm /30mm 60mm / 30mm 60mm / 30mm 60mm/30mm 60mm/30mm
N.W 40kg 40kg 75kg 60kg 60kg 50kg 68kg 70kg 80kg 80kg 80kg 100kg
