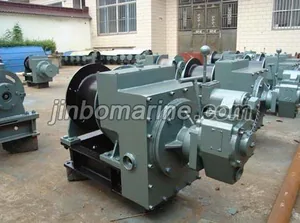

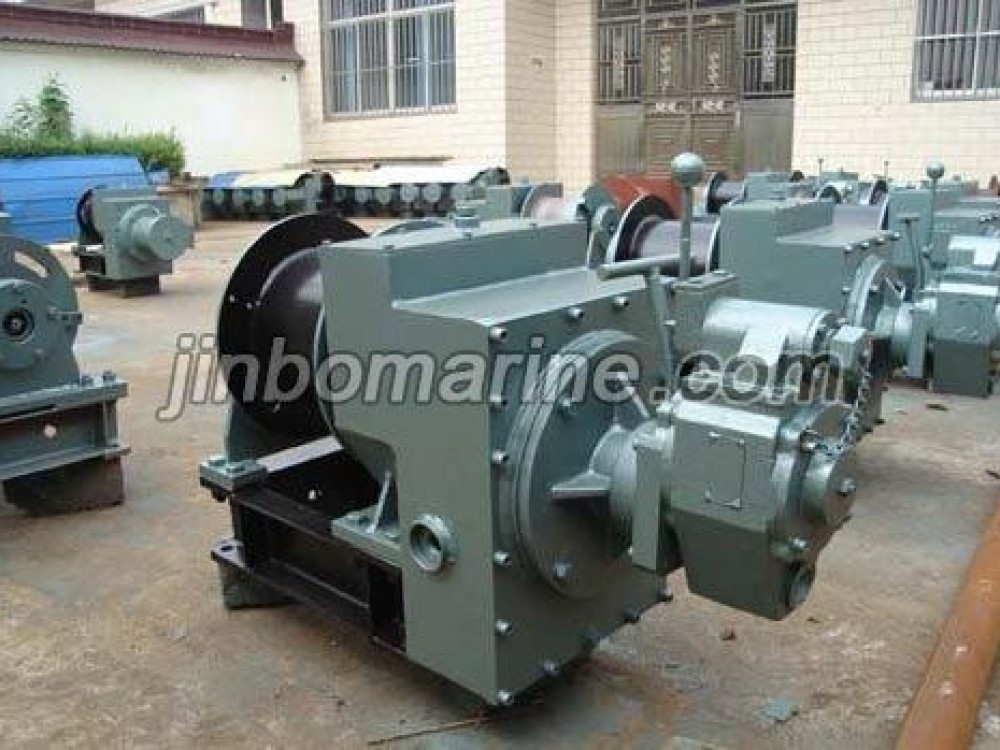

Air Winch for Accommodation Ladder

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Air Winch for Accommodation Ladder:

Standard: GB1392-85

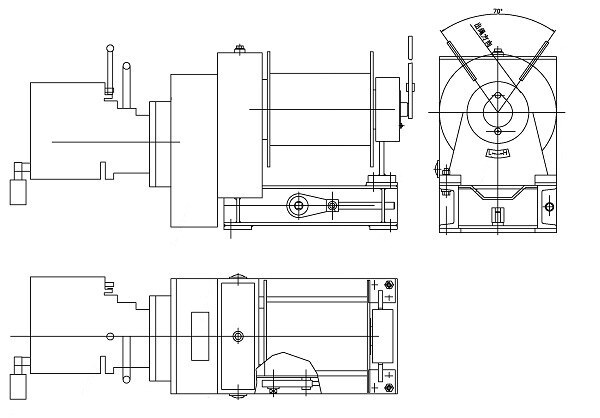

Main Parts: frame, drum, gear box, motor, handle.

Main Technical Parameters:

Working Load 10KN 16KN
Support Load 30KN 48KN
Rope Dia 13mm 13-15mm
Pneumatic Motor Power 3.5-5.5PS 5.5-7PS
Air consumption 3.5-5.5m3/min 5.5-7m3/min
Air pressure 0.5-0.7Mpa
Hoist Speed >9.75m/min
