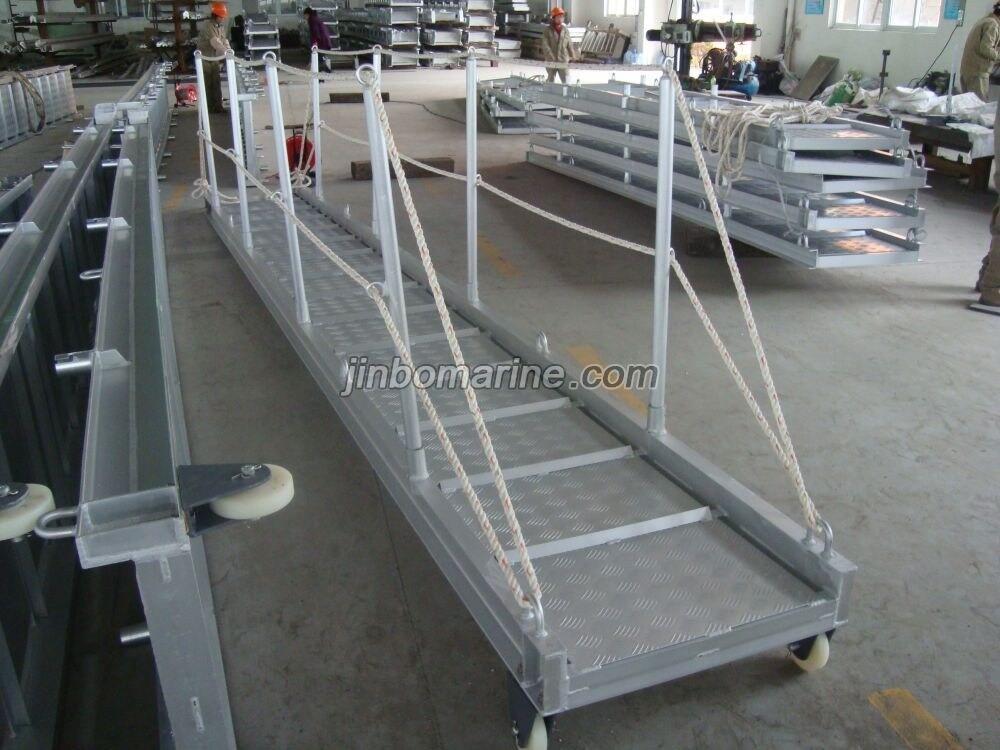

Aluminum Gangway (Flat Type)

  • Category:Marine Ladder
  • Material:Aluminum Alloy
  • Standards:CB3116-82, JIS F2613-1796 & ISO7061-1993
  • Certificate:CCS,DNV,GL, LR, ABS, BV, NK,KR,RINA
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.

Details

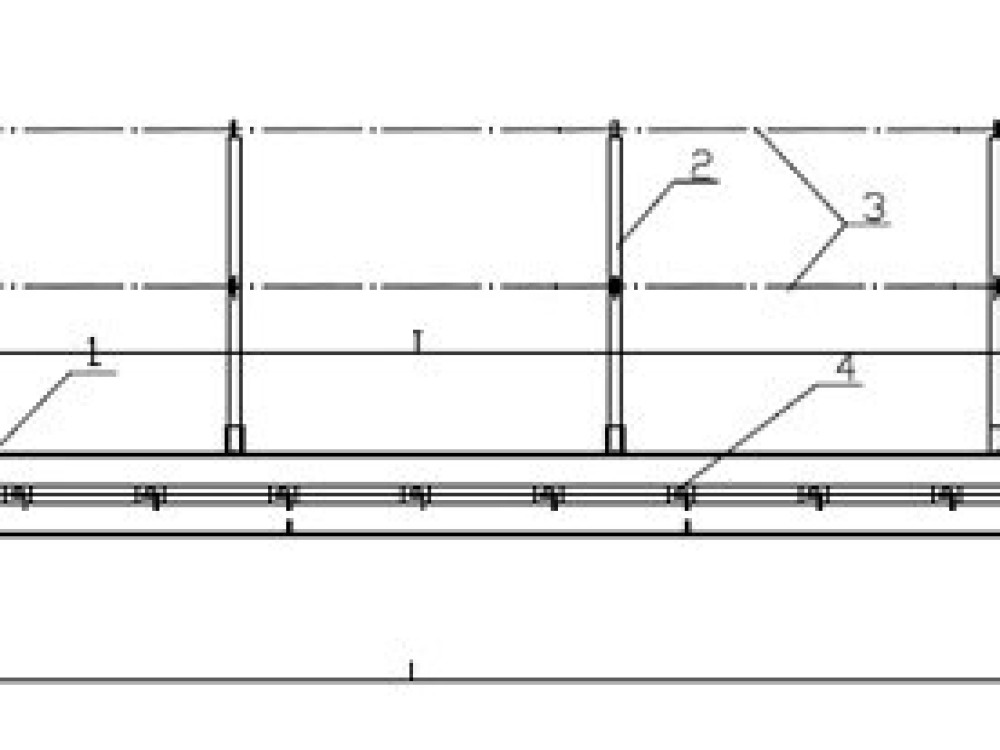

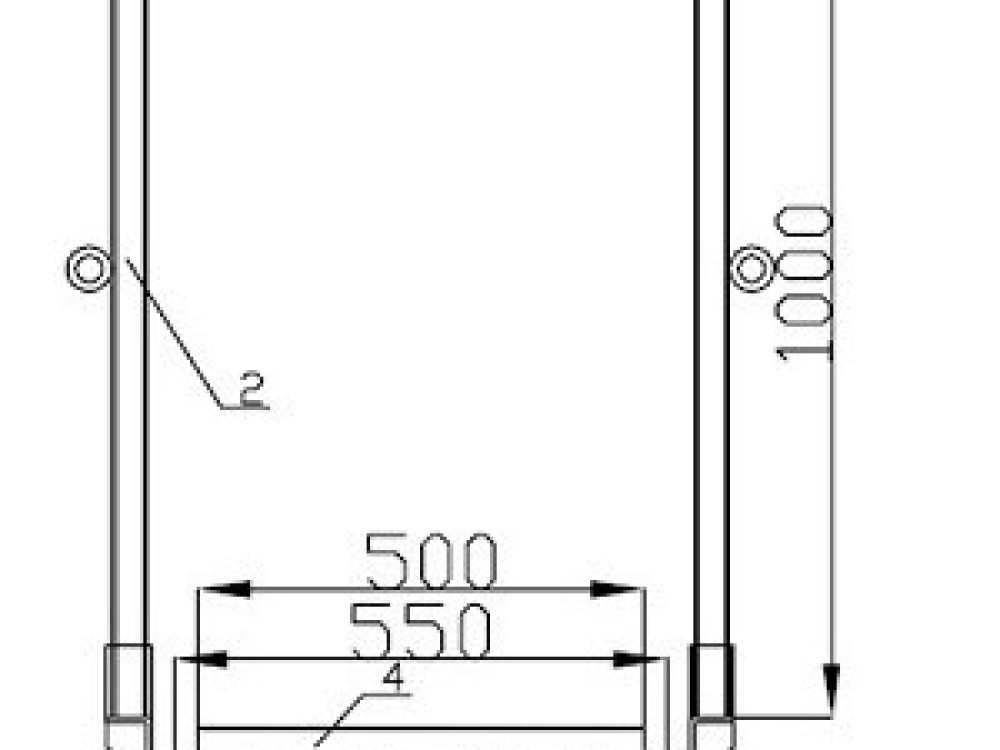

Aluminum Gangway (Flat Type) Drawing

Aluminum Gangway (Flat Type) Drawing

China Aluminum Gangway (Flat Type):

Standard:CB3116-82, JIS F2613-1796 & ISO7061-1993

Max usage angle:30ยบ

Usage situation: embark and disembark for personnel when various types of ships are mooring alongside a deck

*It also can be called as aluminum shore gangway or wharf Ladder

*Normally it is with hook in one side and another side with roller.

*If the length is too long, not suitable for shipment. The ladder can be made with two parts.

*The gangway also can be with the safety net.

*The surface of the product is anodized.

Main Material:

1-Ladder Frame: Aluminum Alloy

2-Rail: Aluimum alloy pipe

3-Rope: Nylon

4-Antislip Strip: Aluminum Alloy

5-Roller: Nylon

6-Hook: Aluminum or steel

Size:

The length and the width are customerized. But the standard width is inside 600mm, outside 700mm. The rail height is fixed 1000mm.
