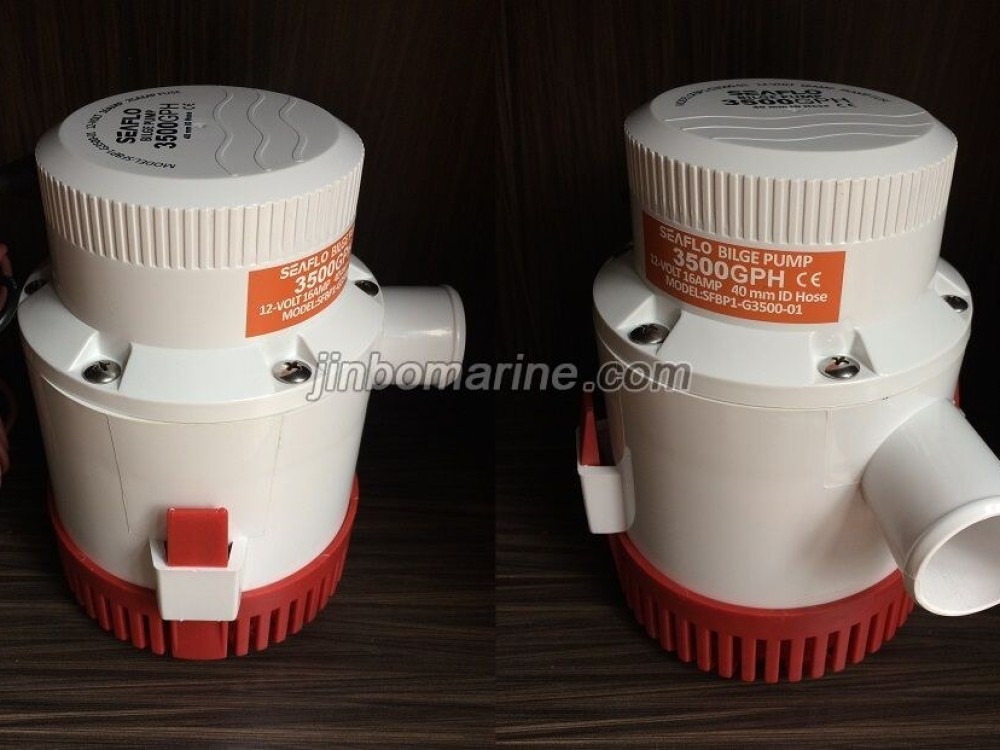

Bilge pump G3500-01

Non-automatic bilge pumps offer standard action activated by a panel or float switch. Removable strainer for easy replacement or in the event that the pump becomes clogged with debris.

Flow rate: 3500GPH

Voltage: 12V

Max draw: 16.0A

Fuse Amp: 25.0A

Head: 26'(8m)

Wire lead:3'(1m)

Outlet diameter: 1-1/2"

1. Tapping screw 6pcs

2. Wire Buckle 1pc

3. Pump cover 1pc

4. Motor 1pc

5. Seal 1 1pc

6. Motor Cover 1pc

7. Seal 2 1pc

8. Impeller 1pc

9. Pump Housing 1pc

10. Strainer 1pc
