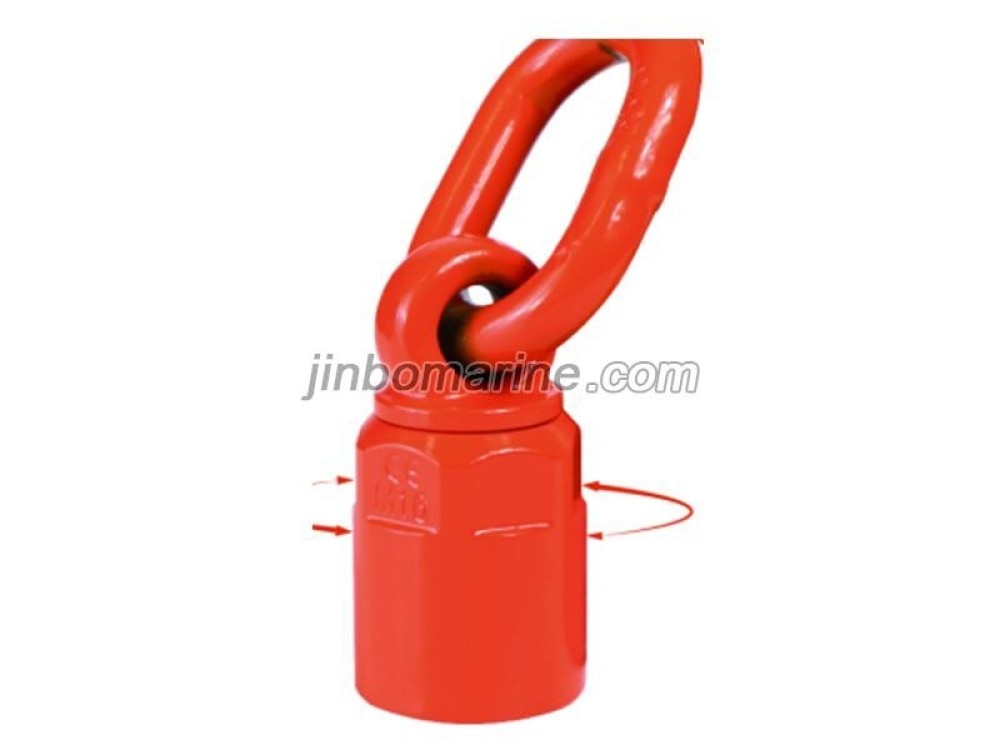

BLT0832 Nut Type Hoist Ring

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China BLT0832 Nut Type Hoist Ring:

BLT0832 Nut Type Hoist Ring

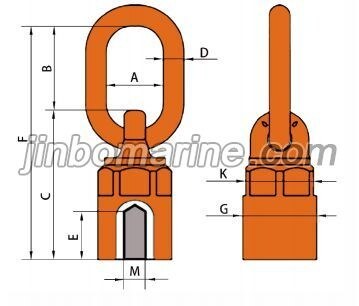

ITEM NO. WLL/T M Dimensional Parameters/mm Kg
E A±2 B±3 C D F±3 G K
BLT0832-M8 0.4 MBx1.25 15 30 43.5 82 12 1255 40 37 0.7
BLT0832-M10 0.6 M10x1.5 15 30 43.5 82 12 125.5 40 37 0.7
BLT0832-M12 0.7 M12x1.75 15 30 43.5 82 12 125.5 40 37 0.7
BLT0832-M14 1.25 M14x2.0 20 30 43.5 82 12 125.5 40 37 0.7
BLT0832-M16 15 M16x2.0 20 30 43.5 82 12 125.5 40 37 0.7
BLT0832-M18 2 M18x2.5 25 40 67 128 20 195 70 64.5 3.2
BLT0832-M20 25 M20x2.5 25 40 67 128 20 195 70 64.5 3.2
BLT0832-M22 2.5 M22x2.5 25 40 67 128 20 195 70 64.5 3.2
BLT0832-M24 4 M24x3.0 30 40 67 128 20 195 70 64.5 3.2
BLT0832-M30 6 M30x3.5 40 51 95 164 22 259 79 74 5.3
BLT0832-M33 7.5 M33x3.5 40 51 95 164 22 259 79 74 5.3
BLT0832-M36 10 M36x4.0 45 51 95 164 22 259 79 74 5.2
8LT0832-M39 10 M39x4.0 45 51 95 164 22 259 79 74 5.1
BLT0832-M42 13 M42x4.5 63 65 108 190.5 26 298.5 93 85 8.3
BLT0832-M45 13 M45x4.5 68 65 108 190.5 26 298.5 93 85 8.1
BLT0832-M48 14 M48x5.0 68 65 108 190.5 26 298.5 93 85 8
BLT0832-M52 20 M52x5.0 84 70 120 254 32 374 105 95 13.8
BLT0832-M56 20 M56x5.5 84 70 120 254 32 374 105 95 13.5
8LT0832-M60 20 M60x5.5 90 70 120 254 32 374 105 95 13.2
8LT0832-M64 20 M64x6.0 95 70 120 254 32 374 105 95 12.9
BLT0832-M72 31.5 M72x6.0 108 90 138 347 48 485 169 155 48
BLT0832-M80 35 M80x6.0 120 90 138 352 48 490 169 155 48
BLT0832-M90 40 M90x6.0 135 90 138 388 48 526 169 155 52
BLT0832-M100 40 M100x5.0 135 90 138 388 48 526 169 155 50
