BLT094S Key Eye Point-S

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China BLT094S Key Eye Point-S:

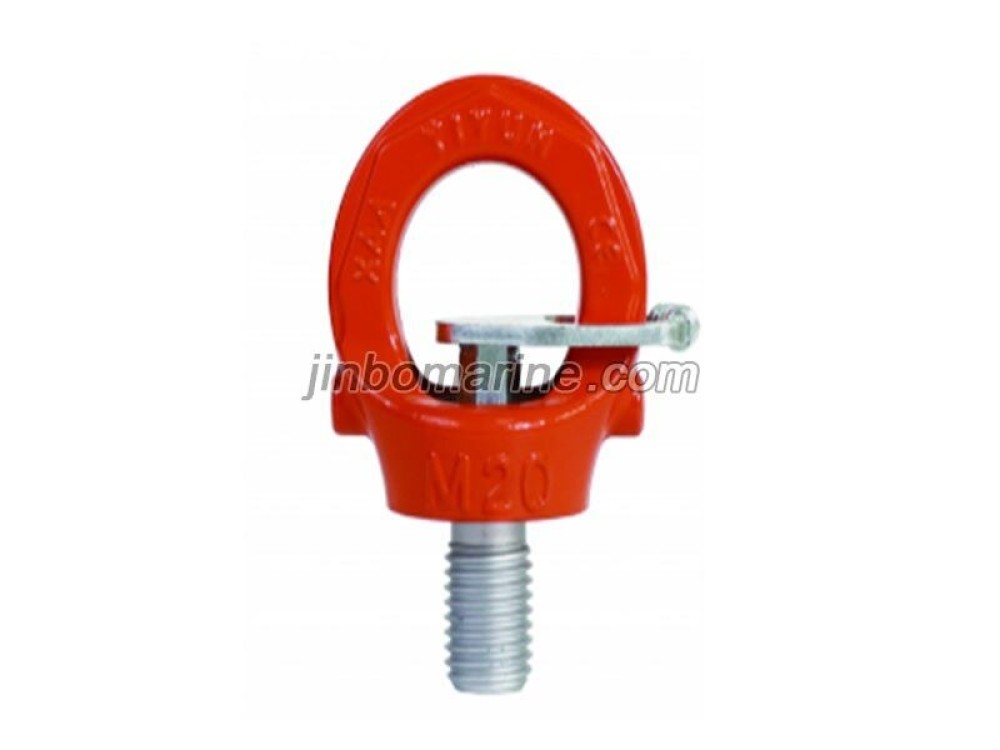

BLT094S Key Eye Point-S

Metric Thread:

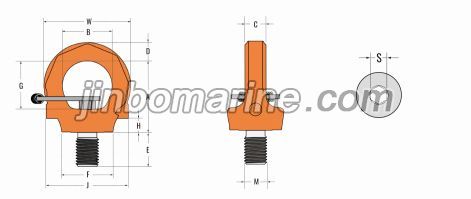

ITEM NO. WLL/T M Dimensional Parameters/mm Locking Torque/Nm Kg
E A B C D F J H W G S
BLT094S-M8 0.3 M8x1.25 12 36.5 25 10 10 25 41 5 44 25 6 10-40 0.14
BLT094S-M10 0.4 M10x1.5 15 36.5 25 10 10 25 41 5 44 25 6 10-40 0.15
BLT094S-M12 0.75 M12x1.75 18 44.5 30 11 11 33 47 7 52 30 8 15-40 0.23
BLT094S-M14 0.75 M14x2.0 18 44.5 30 11 11 33 47 7 52 30 8 30-100 0.3
BLT094S-M16 1.5 M16x2.0 24 50.5 35 15 13 36 58 10 61 34 10 45-130 0.39
BLT094S-M18 1.5 M18x2.5 24 50.5 35 15 13 36 58 10 61 34 10 100-170 0.45
BLT094S-M20 2.3 M20x2.5 30 58 40 17 15 44 68 13 70 39 12 100-170 0.65
BLT094S-M22 2.3 M22x2.5 30 58 40 17 15 44 68 13 70 40 12 100-170 0.75
BLT094S-M24 3.2 M24x3.0 36 71 49 20 17.5 53 75 14 84 48 14 190-280 1.1
BLT094S-M27 3.2 M27x3.0 36 71 49 20 17.5 53 75 14 84 48 14 250-500 1.2
BLT094S-M30 4.5 M30x3.5 45 88 61 25 22 66 95 20 105 60 17 270-600 2.13
BLT094S-M33 4.5 M33x3.5 45 88 61 25 22 66 95 20 105 60 17 270-600 2.25
BLT094S-M36 7 M36x4.0 54 106 73 30 26.5 76 116 28 126 72 22 270-600 3.7
