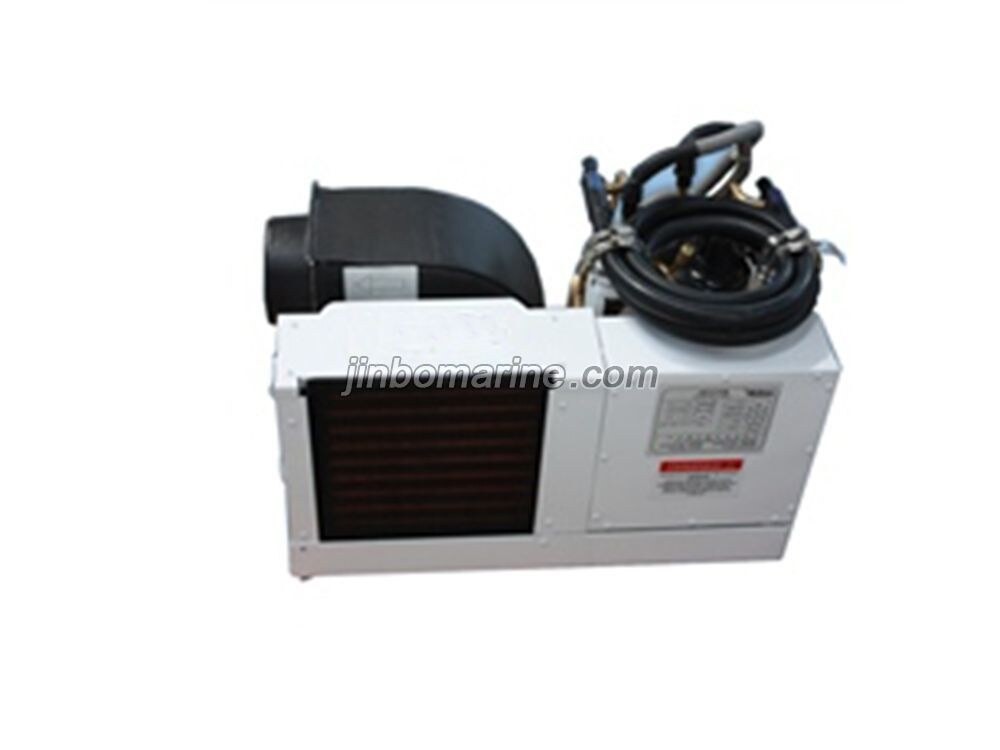

CFP-ZH Marine Combination Type Fan Coil

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

Description:

CFP-BGM,WAB,ZH fan coil has new design, beautiful appearance, simple installation, convenient operation, low noise, small volume and save energy etc. which is suitable for medium and small sized navy, such as suppress smuggling boat, patrol boat and luxurious yacht etc.

Technical Data:

Type CFP-4.5ZH CFP-7.0ZH CFP-9.0ZH CFP-12ZH CFP-16ZH CFP-18ZH CFP-24ZH
Cooling capacity Kw 1.32 2 2.6 3.5 4.7 5.3 7
Btu/hr 4500 7000 9000 12000 16000 18000 24000
Heating capacity Kw 1.45 2.2 2.86 3.85 5.17 5.83 7.7
Btu/hr 5000 7500 9800 13000 17600 20000 26000
Air flow high m3/h 340 340 510 680 800 900 1190
low m3/h 200 200 300 400 480 530 700
Water flow m3/h 0.3 0.4 0.52 0.7 0.9 1.02 1.36
Diameter of Inlet/outlet RC1/2 thread or DN 15 hose
Power supply 220V 50Hz 1Φ
Total Power W 150 150 200 200 220 220 250
Current A 1.2 1.2 1.7 1.7 2 2 2.4

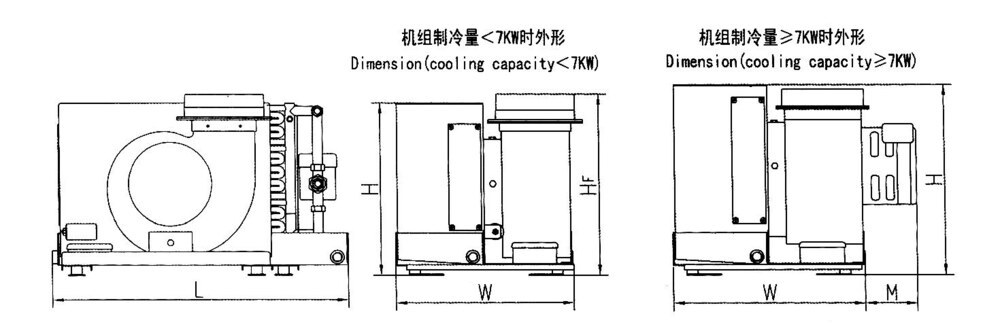

Dimension L mm 485 485 545 545 545 585 600
L1 mm 328 328 328 328 328 335 345
W mm 0 0 0 0 0 0 96
H mm 335 335 335 360 410 410 460
HF mm 364 364 364 364 401 401 450
Weight kg 10 13 16 17 18.5 23 28
