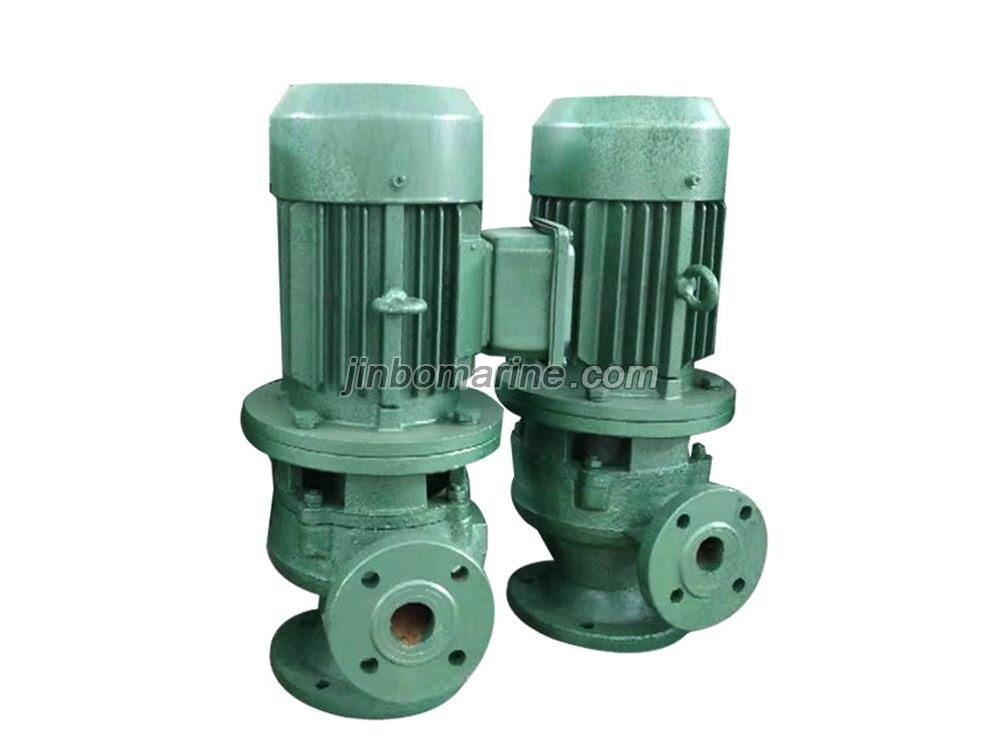

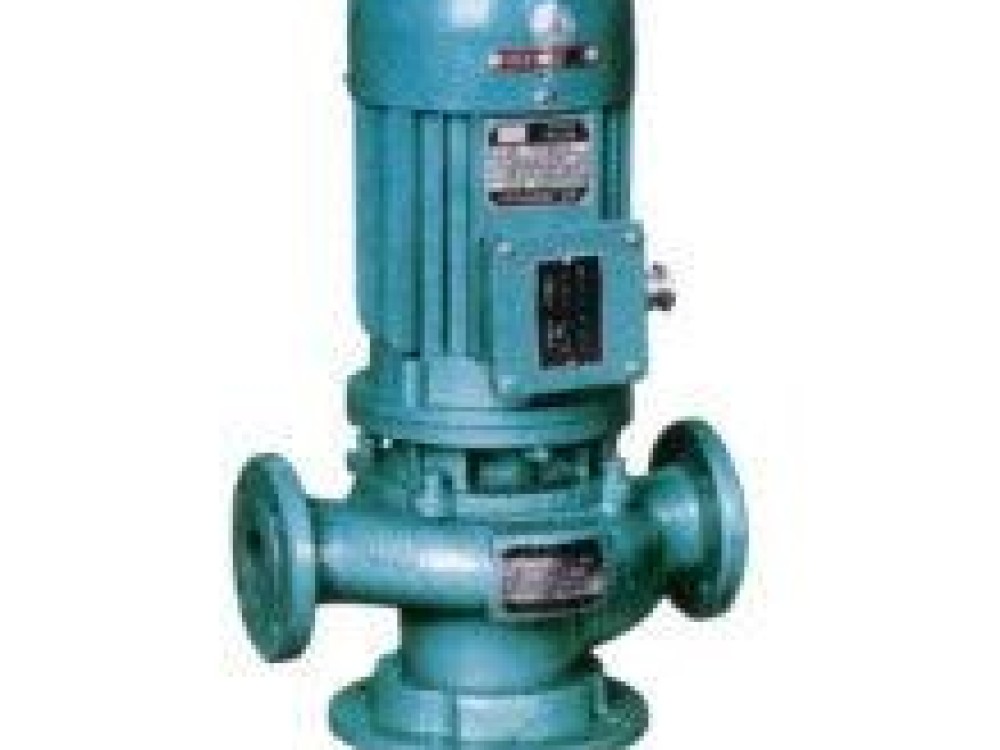

CGW Series Marine Sludge Discharge Pump
- Category:Centrifugal Pump
- Material:Cast iron pump cast, Bronze impeller, Stainless steel pump shaft
- Standards:standard
- Certificate:CCS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
CGW series marine sludge discharge pump
1. High Quality
2. Fast Delivery
3. Easy maintenance
4. Competitive
price
General description
CGW series marine sludge discharge pump is a motor driven uprightness single-channel impeller centrifugal drainage pump(sump pump). The pumps of this series are suitable for transferring sewage,industrial waste water oily water of sea water at a temperature below 85c,containing solids with a diameter up to one third of that of the pump port, and fibers with a length up to five times of that of the ports. They are the best choice for use in conjunction with waste water treatment plants.
Model Explanation
For the Model 20CGW-3-6
20 stand for 20mm inlet and outlet diameter
C stand for Marine pump
G stand for Meatus
W stand for Sump pump
3 stand for rated flow of 3M3/h
6 divided 100 stand for pressure at rated flow 0.06mpa
Performance parameter
| Model |
Flow rate Q(m3/h) |
pressure (Mpa) |
Motor power (kw) |
Inlet pipe diameter (mm) |
Outlet pipe diameter (mm) |
| 20CGW-3-6 | 3 | 0.06 | 0.37 | 20 | 20 |
| 25CGW-2-4 | 2 | 0.04 | 0.25 | 25 | 25 |
| 25CGW-5-10 | 5 | 0.1 | 0.55 | 25 | 25 |
| 25CGW-10-15 | 10 | 0.15 | 1.1 | 25 | 25 |
| 32CGW-8-15 | 8 | 0.15 | 1.1 | 32 | 32 |
| 32CGW-10-25 | 10 | 0.25 | 1.5 | 32 | 32 |
| 40CGW-10-15 | 10 | 0.15 | 1.1 | 40 | 40 |
| 40CGW-15-25 | 15 | 0.25 | 2.2 | 40 | 40 |
| 50CGW-10-30(Z) | 10 | 0.3 | 4 | 50 | 50 |
| 40CGW-15-20 | 15 | 0.2 | 2.2 | 40 | 40 |
| 50CGW-10-30 | 10 | 0.3 | 3 | 50 | 50 |
| 50CGW-15-30 | 15 | 0.3 | 4 | 50 | 50 |
| 65CGW-20-30(Z) | 20 | 0.3 | 7.5 | 65 | 65 |
| 65CGW-30-30(Z) | 30 | 0.3 | 11 | 65 | 65 |
| 80CGW-50-30(Z) | 50 | 0.35 | 15 | 80 | 80 |
