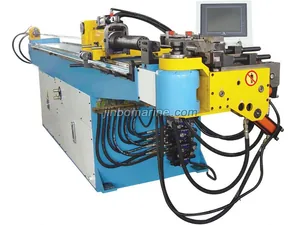

CNC Tuber Bender For Shipyard
- Category:Shipbuilding Steel
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
CNC Tuber Bender Features
● Bend-arm (C-axis) by hydraulic. Clamp dies by hydraulic, Pressure die by hydraulic.
● Carriage (Y-axis) by servo motor. Collets (B-axis): rotation by servo motor, grip by hydraulic.
● Anticipated mandrel retraction unit.
● Fan-cooling system (much better than water-cooling system).
● Foot pedal for safe start.
● It is fully automatic tube bender, with PLC control system, two servo motor for rotary, feeding.
● Touch screen panel display English, have different bending degree prefabricate, dialogue operation, can choose manual, semi-automatic and full automatic operation manual, portable pedal switch with start and emergency stop function.
● Bending pipe — Automatic. Rotating pipe — Automatic. Feeding pipe — Automatic.
● Security code for the protection the data setting and selected operation features.
● To access to the history bending setting data to the facilitate study of malfunction with one set of tooling.
● All the parts of hydraulic system, control system, driver system and display system are imported from famous brand, with high accuracy, high efficient, suitable for mass production.
● The machine is convenient operation, stable performance and high safety factor. The machine is the ideal choice for the steel pipe processing.
● CE, ISO9001 Certification
CNC Tuber Bender Technical Specifications
| Model | CNC38 | CNC50 | CNC63 | CNC75 | |
| Max bending capacity | Φ38 mm×2 mm | Φ50 mm×2 mm | Φ63 mm×3 mm | Φ75 mm×4 mm | |
| Max bending radius | R200mm | R250mm | R270mm | R270mm | |
| Min bending radius | R18mm | R20mm | R25mm | R30mm | |
| Max feeding length | 2500mm | 3000mm | 3000mm | 3000mm | |
| Max bending degree | 190 Degree | 190 Degree | 190 Degree | 190 Degree | |
| Bending unit | 16 Pieces | 16 Pieces | 16 Pieces | 16 Pieces | |
| Working speed | Bending speed | 150 Deg/sec | 100 Deg/sec | 85 Deg/sec | 45 Deg/sec |
| Rotary speed | 200 Deg/sec | 200 Deg/sec | 180 Deg/sec | 150 Deg/sec | |
| Feeding speed | 1000 mm/sec | 1000 mm/sec | 900 mm/sec | 800 mm/sec | |
| Accuracy | Feeding | ±0.05 mm | ±0.05 mm | ±0.05 mm | ±0.05 mm |
| Rotary | ±0.05 Degree | ±0.05 Degree | ±0.05 Degree | ±0.05 Degree | |
| Bending | ±0.05 Degree | ±0.05 Degree | ±0.05 Degree | ±0.05 Degree | |
| Oil motor power | 4 Kw | 5.5 Kw | 4 Kw | 7.5 Kw | |
| Max storage units | 1000 Group | 1000 Group | 1000 Group | 1000 Group | |
| Max pressure | 12 MPa | 12 MPa | 12 MPa | 12 MPa | |
| Oil tank | 300 L | 300 L | 300 L | 300 L | |
| Machine weight | 1500 Kg | 2500 Kg | 3500 Kg | 4600 Kg | |
| Machine size | 3850×760×1200mm | 4900×1300×1300mm | 5000×1400×1300mm | 5000×1400×1300mm | |
