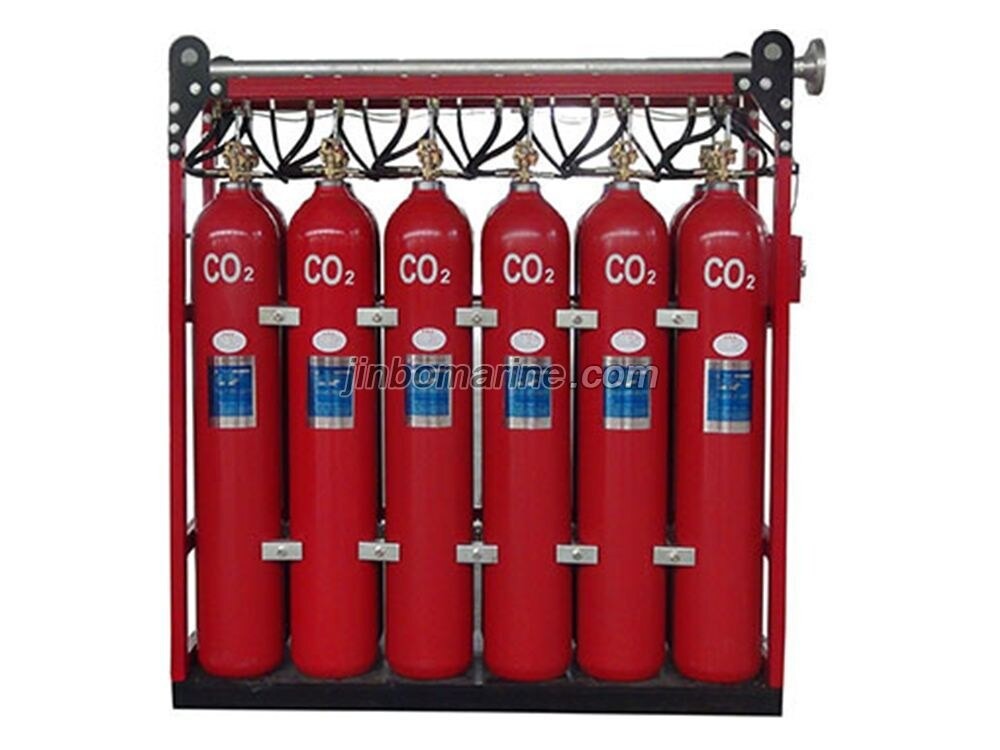

Co2 Cylinder Group
- Category:Carbon Dioxide Fire Fighting System
- Certificate:CCS Certificate
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Co2 Cylinder Group:
Marine Co2 Cylinder Group
1.Technical Parameter.
| 1.Technical Parameter | ||
| Model | YN-68(40),YNN-68(40) | |
| Class | Fixed | |
| Nominal Pressure | 14.7Mpa | |
| Cylinder volume | CO2 cylinder | 40,68L |
| N2 cylinder | 4L | |
| Co2 Filing Rate | ≤0.67kg/L | |
| Environment Condition | Temperautre | -10℃ to 50℃ |
| Humidity | 93±3% | |
| Electricity Supply | Main Supply | AC220V 50HZ/440V 60HZ |
| Auxiliary Supply | DC24V 3A | |
| Power | Standby | ≤30W |
| Working | 200W | |
| Operation Method | Manual | |
| Pneumatic | Remote Control | |
| Manual | Local Operation | |
| Release Delay | Mechanical delay | 20-40S |
| Star up air source | Gas type | N2 |
| Filling Pressure | 5.9Mpa | |
2.Plant Dimensions
Single Row Single Assembly
| Assembly Type | Cylinder Unit | Length | Breadth | Height | |
| 40L | 68L | ||||
| Single Row Single Assembly | 2 | 605 | 680 | 310 | 350 |
| 3 | 855 | 970 | |||
| 4 | 1105 | 1260 | |||
| 5 | 1355 | 1550 | |||
| 6 | 1605 | 1840 | |||
| 7 | 1855 | 2130 | |||
| 8 | 2105 | 2420 | |||
| 9 | 2355 | 2710 | |||
| 10 | 2605 | 3000 | |||
| 11 | 2855 | 3290 | |||
| 12 | 3105 | 3580 | |||
| Assembly Type | Cylinder Unit | Length | Breadth | Height | ||
| 40L | 68L | 40L | 68L | |||
| Double row with single assembly | 4 | 605 | 680 | 500 | 600 | 2000 |
| 6 | 855 | 970 | ||||
| 9 | 1105 | 1260 | ||||
| 10 | 1355 | 1550 | ||||
| 12 | 1605 | 1840 | ||||
| 14 | 1855 | 2130 | ||||
| 16 | 2105 | 2420 | ||||
| 18 | 2355 | 2710 | ||||
| 20 | 2605 | 3000 | ||||
| 22 | 2855 | 3290 | ||||
| 24 | 3105 | 3580 | ||||
| Assembly Type | Cylinder Unit | Length | Breadth | Height | ||
| 40L | 68L | 40L | 68L | |||
| Double row with sides assembly | 4 | 605 | 680 | 580 | 680 | 2000 |
| 6 | 855 | 970 | ||||
| 9 | 1105 | 1260 | ||||
| 10 | 1355 | 1550 | ||||
| 12 | 1605 | 1840 | ||||
| 14 | 1855 | 2130 | ||||
| 16 | 2105 | 2420 | ||||
| 18 | 2355 | 2710 | ||||
| 20 | 2605 | 3000 | ||||
| 22 | 2855 | 3290 | ||||
| 24 | 3105 | 3580 | ||||
