CV-120/3, CV-90/30 Middle Pressure Water Cooling Marine Air Compressor
Description: Model: CV-90/30, CV-120/30 automatic control unit for marine medium pressure air compressor Type: type V, two row, water cooled, medium pressure piston type...
CV-120/3, CV-90/30 Middle Pressure Water Cooling Marine Air Compressor
PDF Datasheet
We can supply according to your requirement.
Description:
Model: CV-90/30, CV-120/30 automatic control unit for marine medium pressure air compressor
Type: type V, two row, water cooled, medium pressure piston type, elastic coupling direct drive.
Air displacement: 90~120 m3/h
Rated pressure: 3 MPa
Features:
High efficiency, low noise, low exhaust temperature, smooth operation and so on; Suitable for starting marine main engine and various large diesel engines, also can be used for braking, blow molding and rubber products of hydropower stations; Various types of valves, meters, containers pressure testing and other industrial departments requiring 1.5-3.0 MPa gas source. Use. The product can provide the following functions according to the user's needs: the main and backup of the two machines are mutual control function, temperature control function, import pressure controller, exhaust outlet high-pressure hose.
Product features:
there are single row, V type two stage compression piston type.
It has high efficiency, light weight, small volume, low noise and smooth operation.
Discharge capacity: 20~120 m3/h; rated pressure: 3 MPa.
The products have manual / automatic shutdown, starting, unloading and discharging functions.
It has direct drive and belt drive.
It is suitable for starting the main engine of ships.
Warm tips: according to user needs, you can provide:
1. The two machines are controlled by each other.
2. Temperature control function
3. Inlet pressure controller
4. Exhaust outlet high pressure hose
Techincal data:
| Model | Displacement | Specified Pressure | Rotating Speed | Motor Power | Dimension （L×W×H） | Weight | ||
|---|---|---|---|---|---|---|---|---|
| m3/h | m3/ min | Mpa | r/min | kW | HP | mm | kg | |
| CZ-20/30SZK (Direct Connection) | 20 | 0.34 | 3 | 960 | 5.5 | 7.5 | 900×600×850 | 250 |
| CZ-20/30SZK | 1000 | 1070×490×810 | 225 | |||||

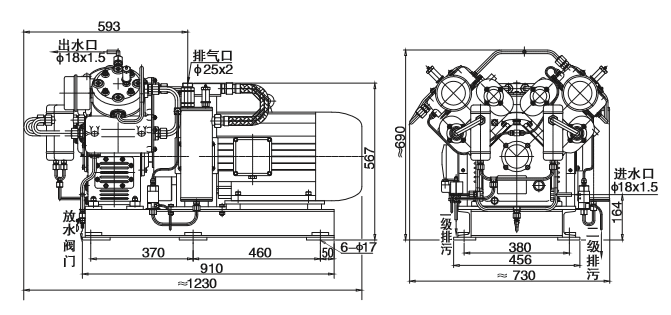

| CV-30/30 (Direct Connection) | 30 | 0.5 | 720 | 7.5 | 10 | 1230×730×690 | 330 | |
| CV-40/30 (Direct Connection) | 40 | 0.67 | 870 | 11 | 15 | 1230×730×690 | 340 | |
| CV-50/30 (Direct Connection) | 50 | 0.83 | 970 | 11 | 15 | 1230×730×690 | 340 | |
| CV-90/30 (Direct Connection) | 90 | 1.5 | 730 | 22 | 30 | 1600×1010×1050 | 900 | |
| CV-120/30 (Direct Connection) | 120 | 2 | 975 | 30 | 40 | 1600×1010×1050 | 1000 | |
