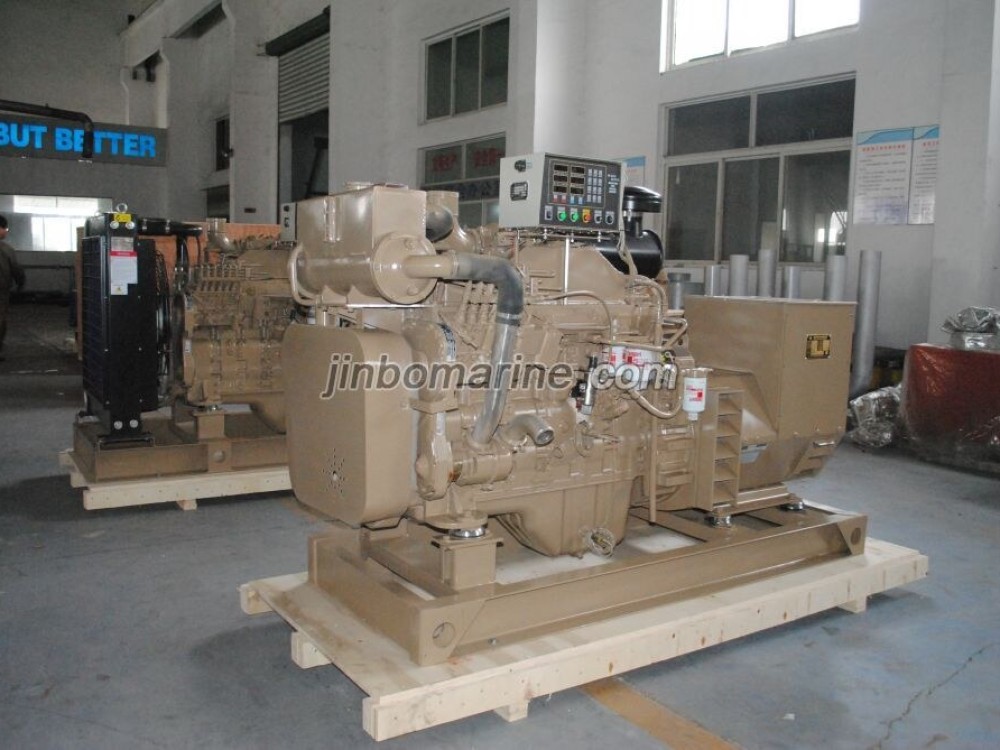

CCFJ120J-W 120KW Cummins Marine Generator Set with HEAT EXCHANGER
CCFJ120J-W 120KW Cummins Marine Generator Set with HEAT EXCHANGER STANDARD SPECIFICATION: Coupled with Cummins diesel engine and Stamford alternator 24V DC start motor ...
CCFJ120J-W 120KW Cummins Marine Generator Set with HEAT EXCHANGER
PDF Datasheet
We can supply according to your requirement.
STANDARD SPECIFICATION:
Coupled with Cummins diesel engine and Stamford alternator
24V DC start motor
Brushless, Self-excited, IP23, insulation class H alternator
ENGINE SPECIFICATION:
Cummins Diesel Engine
Technical Data
| Engine Model | 6CTA8.3-GM155 |
| Number of Cylinders | 6 cylinders in line |
| Cycle | 4 stroke |
| Aspiration | Turbocharged and after-cooled |
| Bore×Stroke | 114 x 135 mm |
| Displacement | 8.3 L |
| Prime Power/Speed | 155KW /1500 rpm |
| Speed Governor | Electrical |
| Cooling System | By heat ex-changer |
| Fuel Consumption at 100% Load | 198 g/kw.h |
| Starter Motor | DC24V, |
Alternator SPECIFICATION:
Stamford Alternator (Standard)
Technical Data
| Alternator Model | UCM274G |
| Prime power | 128KW |
| Frequency/speed | 50HZ / 1500rpm / 415 V |
| Exciter type | Brush-less, Self-excited |
| Power factor | 0.8 |
| Insulation Grade | H |
| Protection Grade | IP23 |
| Phase / wire | 3 phase 3 wires |
Control System:
Model:ED211ZFD2
＊Microcomputer digital control, and reliable work;
＊Digital display of parameters of diesel engine, and integration of measuring and monitoring;
＊Modularization of functional configuration, and integration of product structures;
＊Resistance to vibration, humidity, salt mist and high/low temperature;
＊Powerful ability to resist interference, convenient installation and use, and high performance-price ratio;
＊Remote monitoring of running parameters;
＊Automatic zero set of lubricating oil pressure
＊Accumulation of running period of diesel engine.
