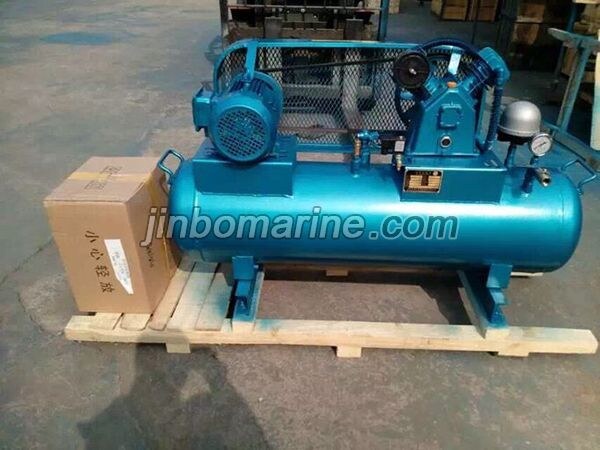

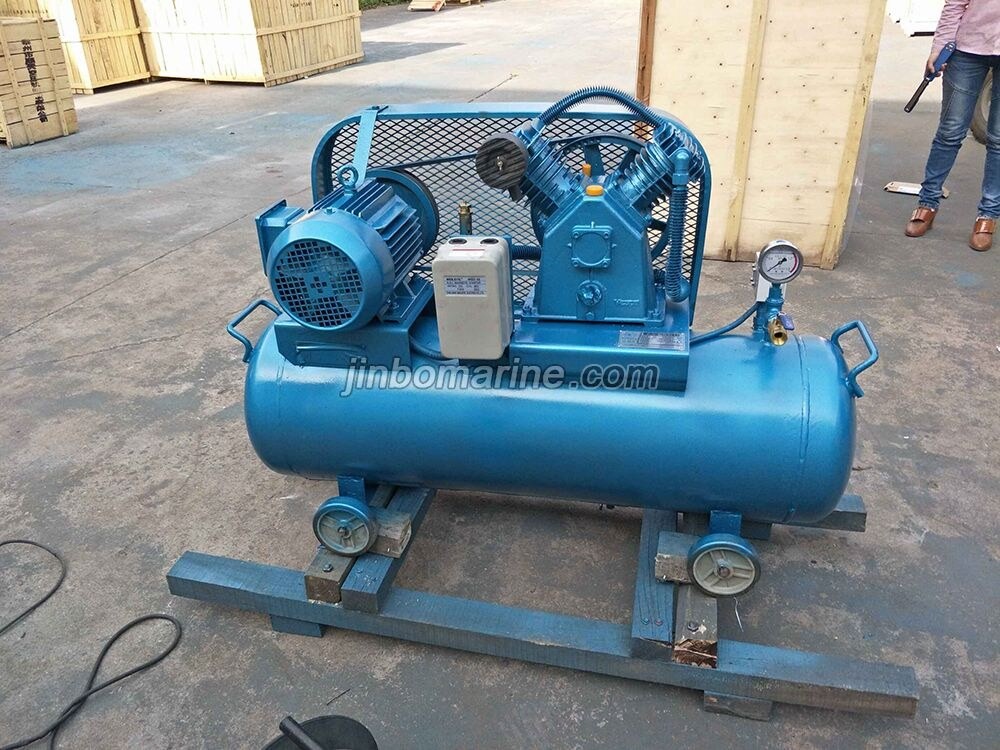

CVF-10/10 Single Row Vertical Air Cooled Marine Air Compressor
- Category:Low Pressure Air Cooled Marine Air Compressor
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China CVF-10/10 Single Row Vertical Air Cooled Marine Air Compressor:
Model:CVF-10/10
Type: V-shaped,air cooling,piston
Displacement: 10.0 m3/h
The rated pressure:1.0MPa
Speed:550r/min
Type: V-shaped,air cooling,piston
Displacement: 10.0 m3/h
The rated pressure:1.0MPa
Speed:550r/min
Air receiver: 100L
Specification
| Model | Type | Displacement capacity | Rated pressure | Rotate speed | Motor power | Overall size |
| m3/h | Mpa | r/min | KW | mm | ||
| CVF-10/10 | Single cylinder Air cooling | 10 | 1.0 | 550 | 1.5 | 800x390x630 |
