DNW4 Series Marine Horizontal Condensate Pump
- Category:Centrifugal Pump
- Material:Cast iron pump cast, Bronze impeller, Stainless steel pump shaft
- Standards:standard
- Certificate:CCS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

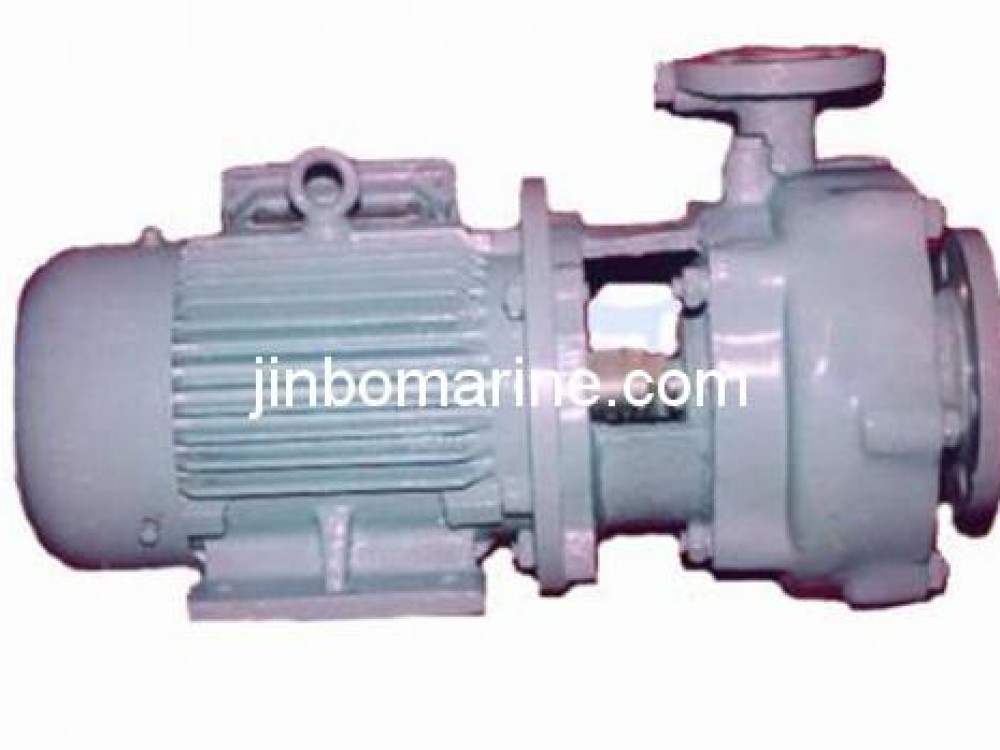

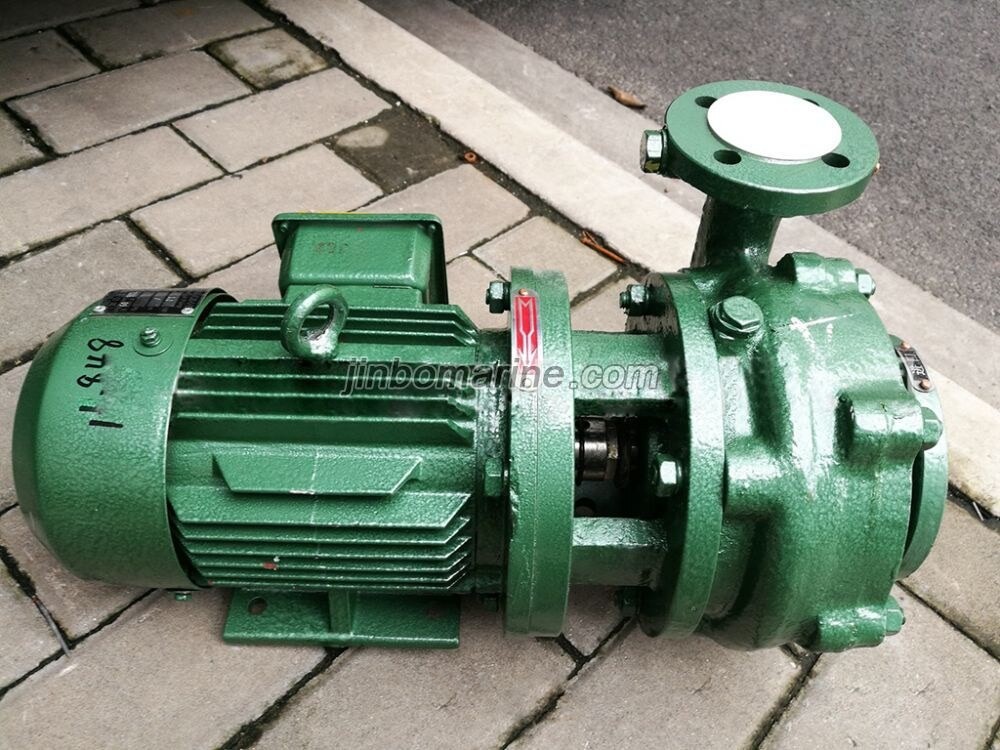

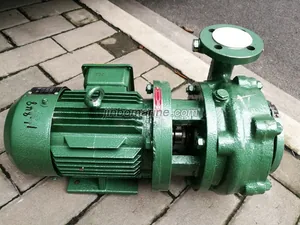

DNW Series Marine Horizontal Condensate Pump
General
DNW marine horizontal condensate pump is mainly used for ships desalination plant,pumping condensate can also be used for its water pumps they use.
Model Explanation
- DNW2-Z
- DNW-Marine horizontal condensate pump
- 2-Flow rate 2m3/h
- Z-Direct current

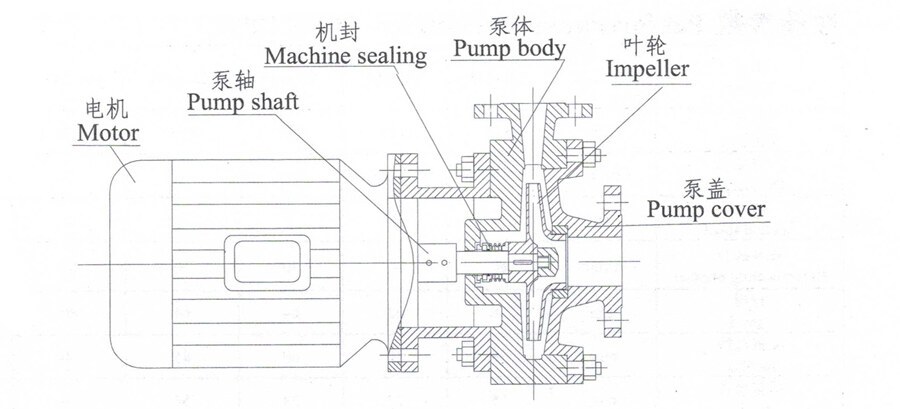

Structural Specifications

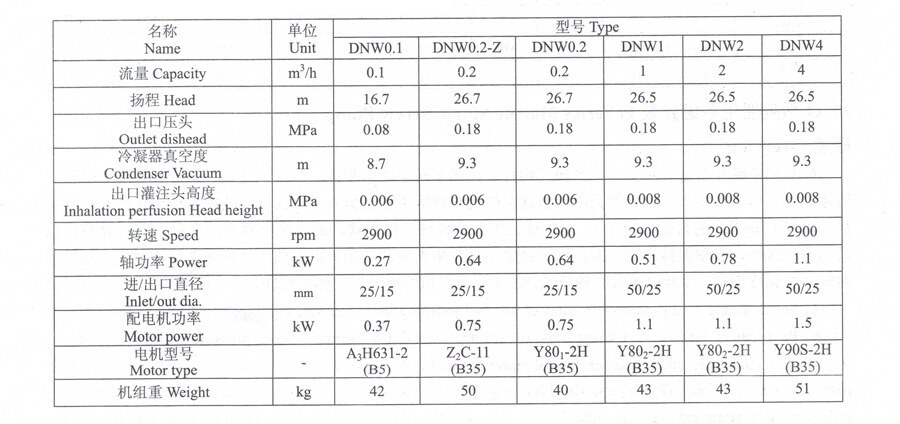

Performance parameter
| Model |
Capacity (m3/h) |
Head (m) |
Speed (r/min) |
Motor power (kw)50Hz |
| DNW0.1 | 0.1 | 16.7 | 2900 | 0.37 |
| DNW0.2-Z | 0.2 | 26.7 | 0.08 | |
| DNW0.2 | 0.2 | 26.7 | 0.75 | |
| DNW1 | 1 | 26.5 | 1.1 | |
| DNW2 | 2 | 26.5 | 1.1 | |
| DNW4 | 4 | 26.5 | 1.5 | |
| Model |
Capacity (m3/h) |
Head (m) |
Speed (r/min) |
Motor power (kw)60Hz |
| DNW0.2 | 0.25 | 38 | 3500 | 1.5 |
| DNW1 | 1.2 | 38 | 2.2 | |
| DNW2 | 2.4 | 38 | 2.2 | |
| DNW4 | 4.8 | 38 | 3 | |
| DNW0.2A | 0.2 | 26.7 | 0.75 | |
| DNW1A | 1 | 26.5 | 1.1 | |
| DNW2A | 2 | 26.5 | 1.1 | |
| DNW4A | 4 | 26.5 | 1.5 |
