Double Braking Air Winch

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

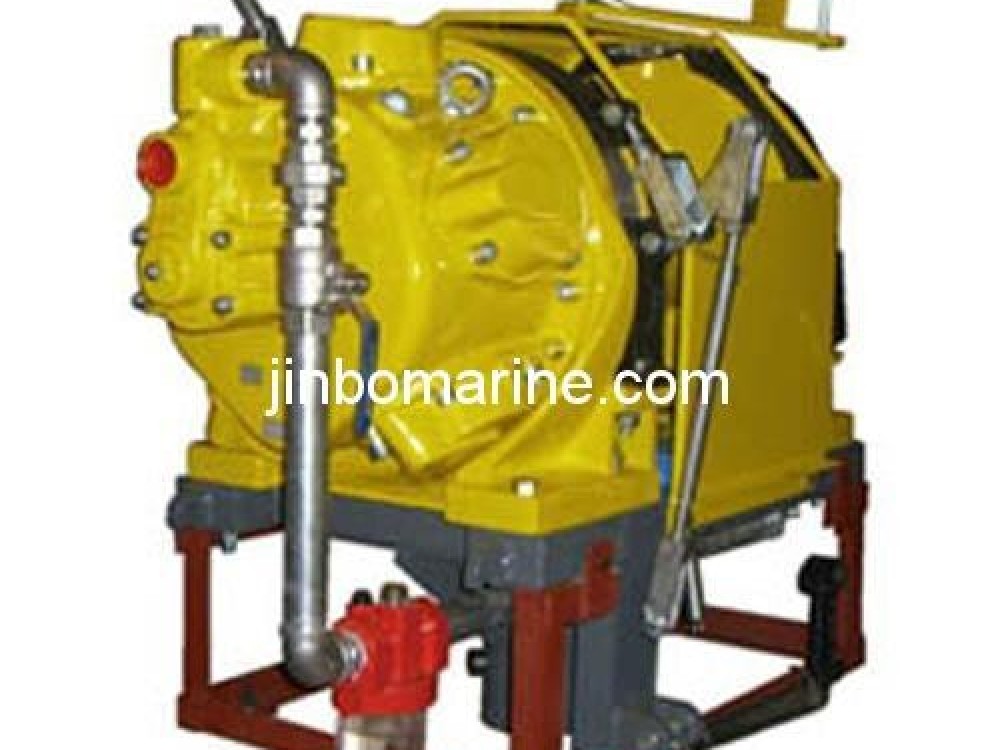

Double Braking Air Winch

Description:

The JQHSB50*12 Pin-base Double-braking Air Winch adopts compressed air as power to drive the TMH17 piston air motor, transferring torque to drum through the second Gear Reducer. By operating manual diversion valve on the motor, the winch can perform hoisting, lowering and stopping actions to the wire rope. Considering security, it is specially designed with hand and foot double manual brakes for fear of unexpected accidents. The Double-braking Air Winch is especially fit for hauling, lifting and other work in mines, construction engineering sites, platforms of oilfields off-sea and inland, etc. The rotary base design enables the winch more flexible in turning directions.

Features:

  • Compact in size and light in weight, portable to move and easy to install;
  • Simple and reliable operation with little noise;
  • Stable in inflammable, explosive, wet, damp and other extremely operating conditions;
  • Low maintenance relieves your anxiety and assures you to use it freely.
  • High starting torque ensures it starting with load and performing hoisting, lowering and stopping actions easily;
  • Especially fit for hauling, lifting and other work in mines, construction engineering sites, platforms of oilfields, etc;

Technical Specification:

Model

JQHSB50*12

Pressure of Compressed Air (Mpa)

0.6-0.8

Normal Pull Force ( KN)

50

Wire Rope Speed (m/min)

12

Wire Rope Diameter (mm)

15.875

Inlet Diameter (mm)

32

Air Motor

Normal Power (KW)

17

Cylinder Number(pieces)

5

Cylinder Diameter(mm)

130

Air Consumption(l/sec)

247

Drum

Number (piece)

1

Diameter (mm)

222

Width (mm)

335

Wheel Rim Diameter(mm)

485

Rope Capacity (M)

120

Configuration

Length (mm)

1280

Width (mm)

920

Height (mm)

989

Weight(KG)

498
