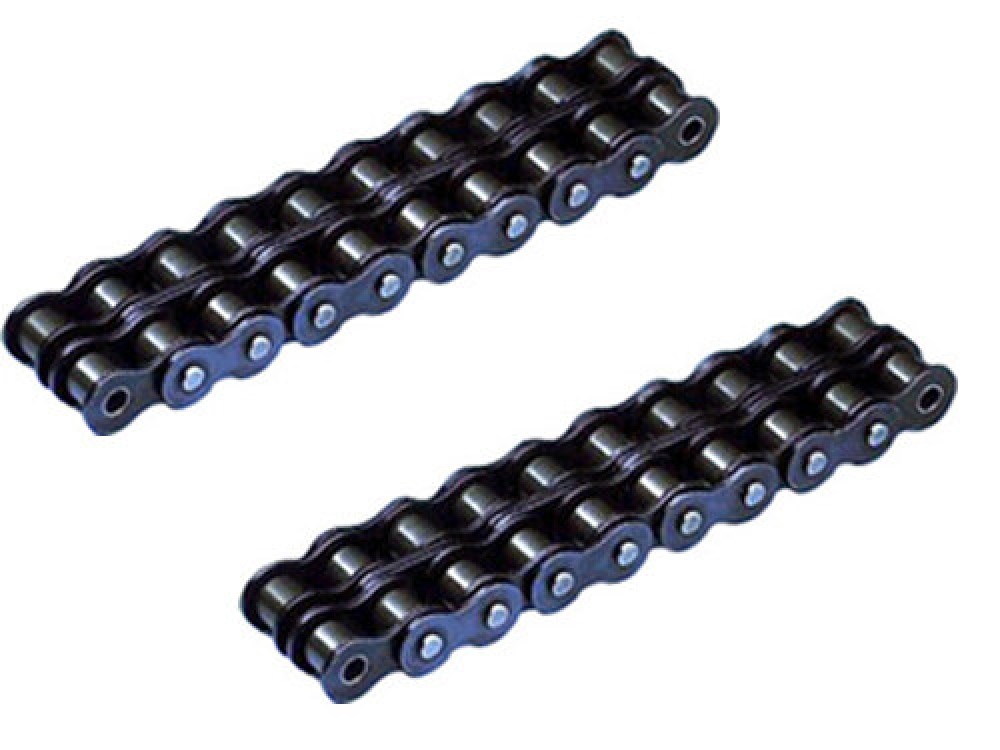

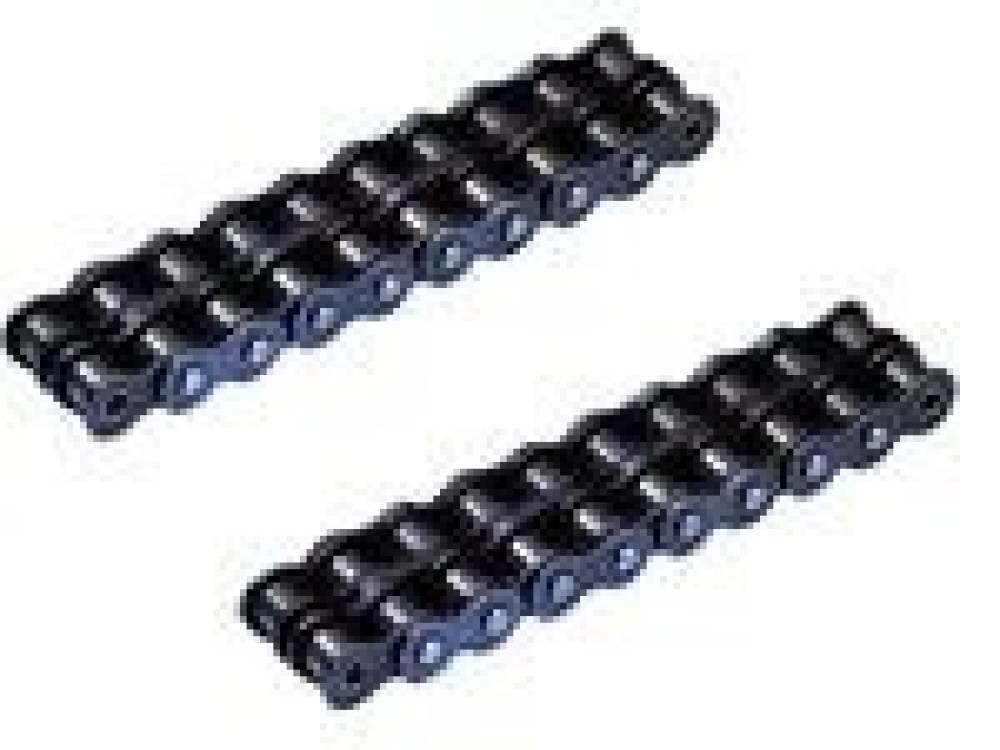

Duplex Roller Chain

Main Specification DIN/ISO Chain No. ANSI Chain No. Pitch Roller Width  ...

A Series Short Pitch Precision Roller Chain3 Photos ISO9001 Supplier

Loading product images...

Category: A Series Short Pitch Precision Roller Chain

Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS

FOB Price: Get Latest Price Now

Warranty: 12 Months unless specified otherwise

Place of Origin: China

We can supply according to your requirement.

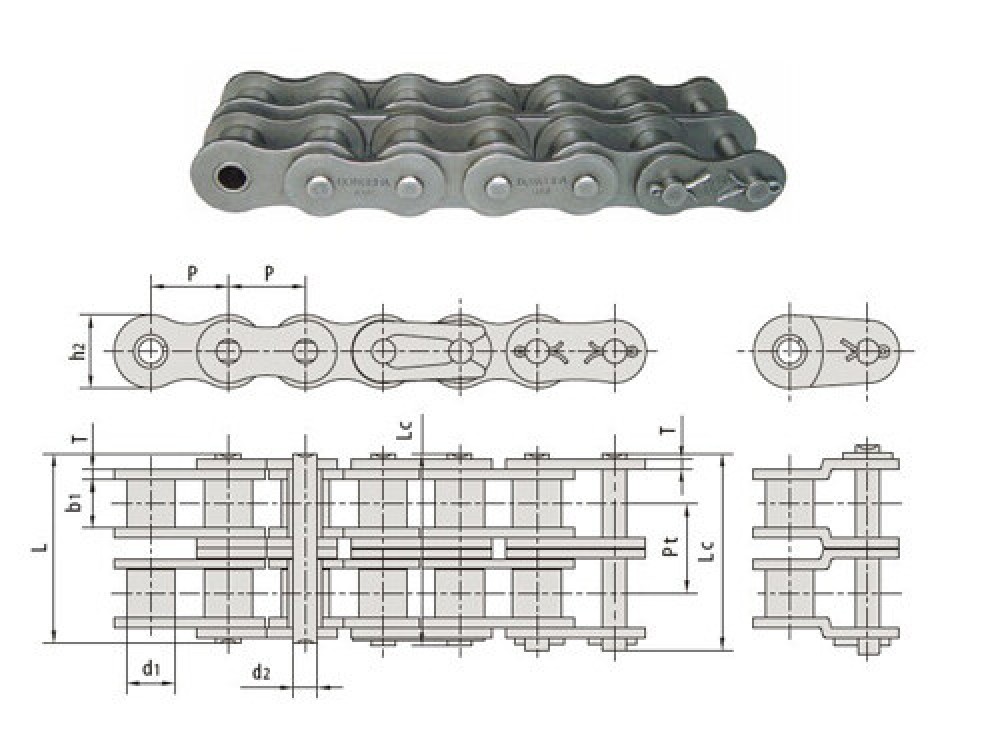

Main Specification

DIN/ISO Chain No.	ANSI Chain No.	Pitch	Roller	Width	Pin Diameter	Pin Length		Inner plate depth	Plate Thickness	Ultimate tensile strength	Average tensile strength	weight Per Meter
		Pitch	Roller	Width	Pin Diameter	Pin Length		Inner plate depth	Plate Thickness	Ultimate tensile strength	Average tensile strength	weight Per Meter
		P	d1	b1	d2	L	Lc	h2	T	Q	Q0	q
		mm	mm	mm	mm	mm	mm	mm	mm	kN/LB	kN	kg/m
*04C-2	*25-2	6.35	3.3	3.18	2.31	14.5	15	6	0.8	7.00/1591	8.6	0.28
*06C-2	*35-2	9.525	5.08	4.77	3.58	22.5	23.3	9	1.3	15.80/3591	19.7	0.63
085-2	Feb-41	12.7	7.77	6.25	3.58	25.7	26.9	9.91	1.3	13.34/3032	16.9	0.81
08A-2	Feb-40	12.7	7.95	7.85	3.96	31	32.2	12	1.5	28.20/6409	35.9	1.12
10A-2	Feb-50	15.875	10.16	9.4	5.08	38.9	40.4	15.09	2.03	44.40/10091	58.1	2
12A-2	Feb-60	19.05	11.91	12.57	5.94	48.8	50.5	18	2.42	63.60/14455	82.1	2.92
16A-2	Feb-80	25.4	15.88	15.75	7.92	62.7	64.3	24	3.25	113.40/25773	141.8	5.15
20A-2	100-2	31.75	19.05	18.9	9.53	76.4	80.5	30	4	177.00/40227	219.4	7.8
24A-2	120-2	38.1	22.23	25.22	11.1	95.8	99.7	35.7	4.8	254.00/57727	314.9	11.7
28A-2	140-2	44.45	25.4	25.22	12.7	103.3	107.9	41	5.6	344.80/78364	427.5	15.14
32A-2	160-2	50.8	28.58	31.55	14.27	123.3	128.1	47.8	6.4	453.60/103091	562.4	20.14
36A-2	180-2	57.15	35.71	35.48	17.46	138.6	144.4	53.6	7.2	560.50/127386	695	29.22
40A-2	200-2	63.5	39.68	37.85	19.85	151.9	158.8	60	8	707.60/160818	877.4	32.24
08A-2	240-2	76.2	47.63	47.35	23.81	183.4	190.8	72.39	9.5	1020.60/213955	1255.3	45.23
