GCLF Series Geared Trolleys
- Category:Marine Hoist
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China GCLF Series Geared Trolleys:

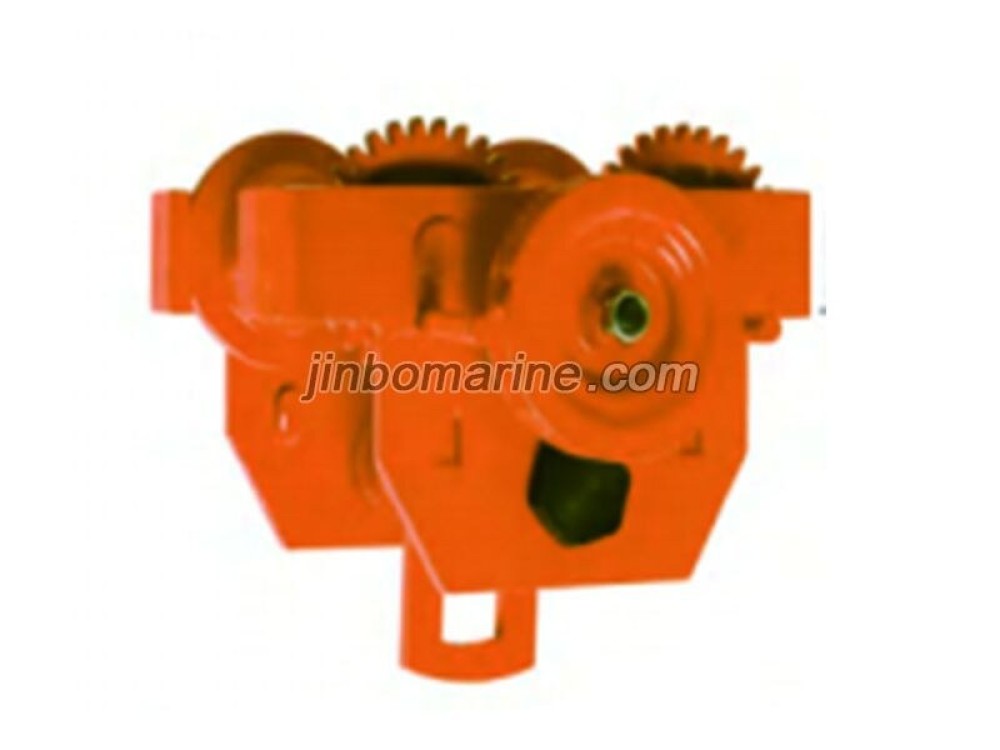

GCLF Series Geared Trolleys

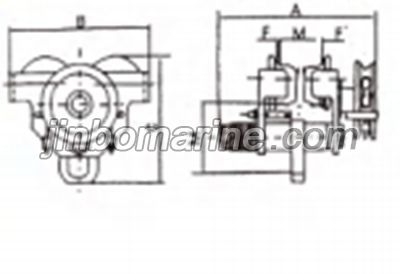

| Model | Capaity(ton) | Proof load (ton) | Minimun revoing radus(mm) | Dimensions(mm) | Fits Beam(mm) | N.W.(kg) | ||||
| A | B | C | H | F | ||||||
| GCLF-1 | 1 | 1.25 | 1 | 242 | 230 | 211 | 115 | ≈3 | 46-203 | 10 |
| GCLF-2 | 2 | 2.25 | 1.1 | 280 | 270 | 236 | 130 | ≈3 | 88-203 | 15 |
| GCLF-3 | 3 | 3.25 | 1.3 | 300 | 320 | 295 | 164 | ≈3 | 101-203 | 22 |
| GCLF-5 | 5 | 5.25 | 1.4 | 316 | 350 | 334 | 177 | ≈3 | 114-203 | 38 |
