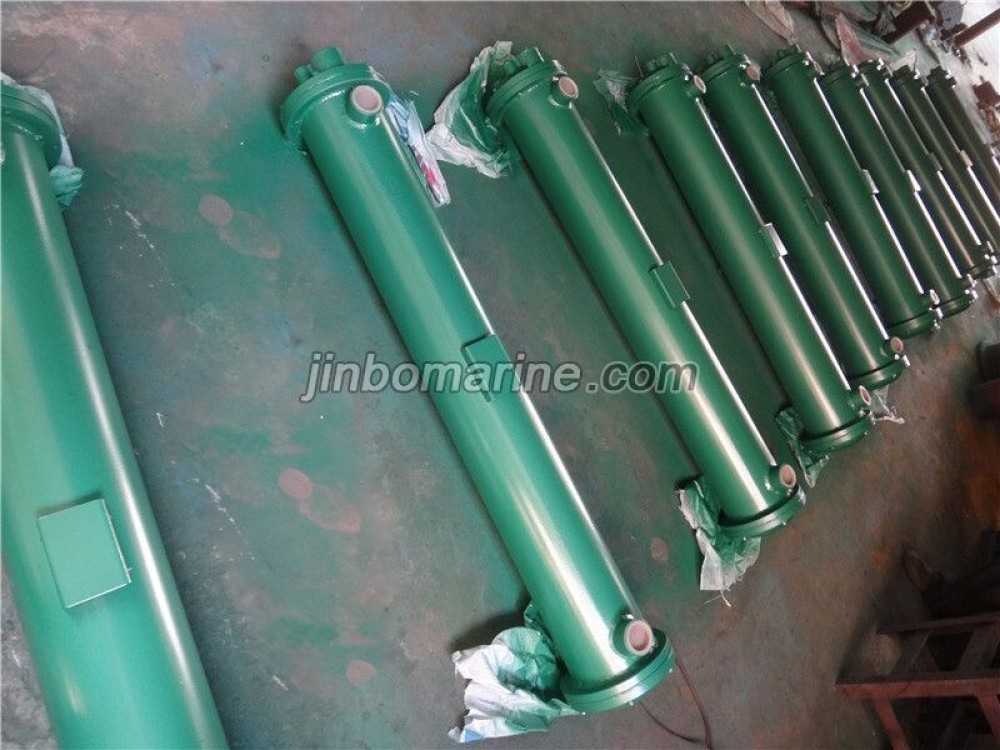

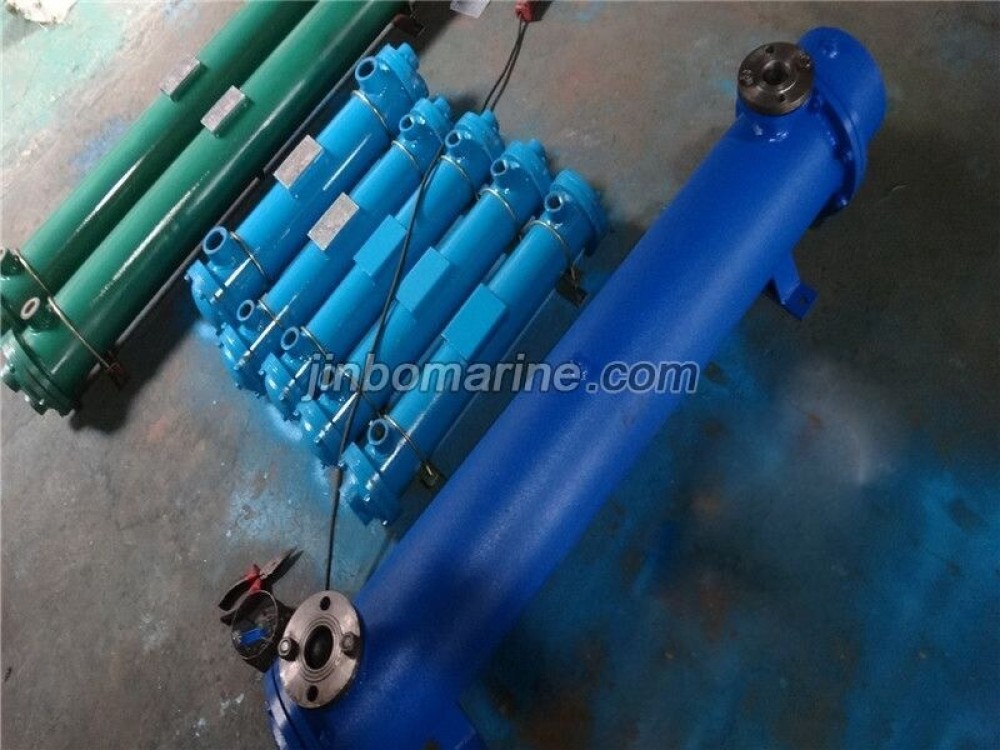

GLC tube type oil cooler
- Category:Heat Exchanger
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
Range of use:
The GL cooler is used in the lubrication system and hydraulic system of metallurgy, mining, cement, electric power, light industry, food, chemical industry, paper making and other industrial sectors to cool the lubricating oil and hydraulic oil in the system. GL cooler in thin oil lubricating device, hydraulic station, hydraulic equipment, heat oil cooled to the required temperature; the working temperature is less than or equal to 100℃ cooler, work pressure is less than 1.6MPa, the general working pressure is less than 1MPa.
Characteristic：
The GL cooler has the advantages of small size, light weight, good cooling effect and convenient maintenance; the heat exchange tube with copper fin tube type GLCQ, heat exchange coefficient, 300kcal/m2.H.℃; type GLLQ (light) by bare tube, heat exchange coefficient, 200kcal/m2.H.℃.
| Area of cooling surface | Working Pressure | Working Temperature |
Pressure
drop |
Oil & Water Rate | Medium viscosity | Heat transfer coefficient | |
| Oil Side | Water Side | ||||||
| 0.4～1.2 | 0.6 | ≤100 | ≤0.1 | ≤0.05 | 1：1 almost | 20～300 | ≥350 |
| 1.3～3.5 |
|
||||||
| 4～11 | 1 | ||||||
| 13～27 |
|
||||||
| 30～54 | 1.6 | ||||||
| 55～90 |
|
||||||
| 4～7 | 0.63 | 1：1.5 almost | ≥300 | ||||
| 12～28 |
|
||||||
| 35～60 | 1 | ||||||
| 80～120 |
|
||||||
| 160～200 |
|
||||||
| L | C | L1 | H1 | H2 | D1 | D2 | C1 | C2 | B | L2 | L3 | n-d3 | d1 | d2 | Weight |
| 370 | 240 | 67 | 60 | 68 | 78 | 92 | 52 | 102 | 132 | 115 | 145 | 4-(11) |
G1" （Dg25) |
G3/4" （Dg25) |
8 |
| 540 | 405 | 310 | 10 | ||||||||||||
| 600 | 532 | 435 | 12 | ||||||||||||
| 810 | 665 | 570 | 13 | ||||||||||||
| 940 | 805 | 715 | 15 | ||||||||||||
| 560 | 375 | 98 | 85 | 93 | 120 | 137 | 78 | 145 | 175 | 172 | 225 | 4-(11) |
G1" （Dg25) |
G1" （Dg25) |
19 |
| 690 | 500 | 350 | 21 | ||||||||||||
| 820 | 635 | 485 | 25 | ||||||||||||
| 960 | 775 | 630 | 29 | ||||||||||||
| 1110 | 925 | 780 | 32 | ||||||||||||
| 1270 | 1085 | 935 | 36 | ||||||||||||
| 840 | 570 | 152 | 125 | 158 | 168 | 238 | 110 | 170 | 210 | 245 | 380 | 4-(15) |
G1 1/2" （Dg36) |
G1 1/4" （Dg30) |
74 |
| 990 | 720 | 530 | 77 | ||||||||||||
| 1140 | 870 | 680 | 85 | ||||||||||||
| 1310 | 1040 | 850 | 90 | ||||||||||||
| 1470 | 100 | 1010 |
G2" （Dg50) |
G1 1/2" （Dg36) |
96 | ||||||||||
| 1630 | 1360 | 1170 | 105 | ||||||||||||
| 1800 | 1530 | 1340 | 110 | ||||||||||||
| 1980 | 1710 | 1520 | 118 | ||||||||||||
| 1340 | 985 | 197 | 160 | 208 | 219 | 305 |
|
|
|
|
745 | 4-(19) |
G2" （Dg50) |
G2" （Dg50) |
152 |
| 1500 | 1145 | 905 | 164 | ||||||||||||
| 1660 | 1305 | 1065 | 175 | ||||||||||||
| 1830 | 1475 | 1235 | 188 | ||||||||||||
| 2010 | 1655 | 1415 | 200 | ||||||||||||
| 2180 | 1825 | 1585 | 213 | ||||||||||||
| 2360 | 2005 | 1765 | 225 | ||||||||||||
| 2530 | 2175 | 1935 | 238 | ||||||||||||
| 1932 | 1570 | 202 | 200 | 234 | 273 | 355 |
|
|
|
|
1320 | 4-(23) |
G2 1/2" （Dg60) |
G2" （Dg50) |
|
| 2152 | 1790 | 1540 |
|
||||||||||||
| 2322 | 1960 | 1710 |
|
||||||||||||
| 2542 | 2180 | 1930 |
|
||||||||||||
| 2712 | 2350 | 2100 |
|
||||||||||||
| 2872 | 2510 | 2260 |
|
||||||||||||
| 3092 | 2730 | 2480 |
|
||||||||||||
| 3262 | 2900 | 2650 |
|
||||||||||||
| 2272 | 1860 | 227 | 230 | 284 | 325 | 410 |
|
|
|
|
1590 | 4-(23) |
G3" （Dg70) |
G2 1/2" （Dg60) |
|
| 2452 | 2040 | 1170 |
|
||||||||||||
| 2632 | 2220 | 1950 |
|
||||||||||||
| 2812 | 2400 | 2130 |
|
||||||||||||
| 2992 | 2580 | 2310 |
|
||||||||||||
| 3172 | 2760 | 2490 |
|
||||||||||||
| 3352 | 2940 | 2670 |
|
||||||||||||
| 3532 | 3120 | 2850 |
|
