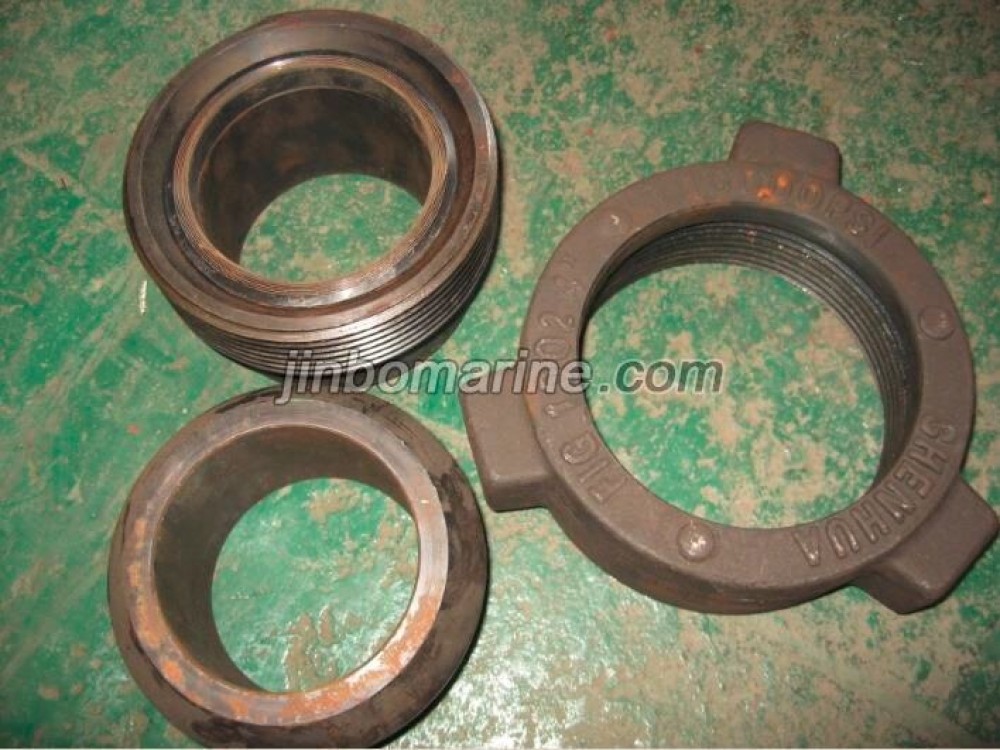

Hammer Union 3" Figure 1002 Thread
China Hammer Union 3" Figure 1002 Thread:
Type 1002 union rated pressure 10000 PSI NSCWP, test pressure 15000 PSI, recommended for cementing, fracturing, acidizing and block and kill line. It also used in high pressure system, including vehicle system and also be used as a pressure seal union, using the butt welding Sch. 160 or XXH. Equipped with elastic nitrile rubber sealing ring.
