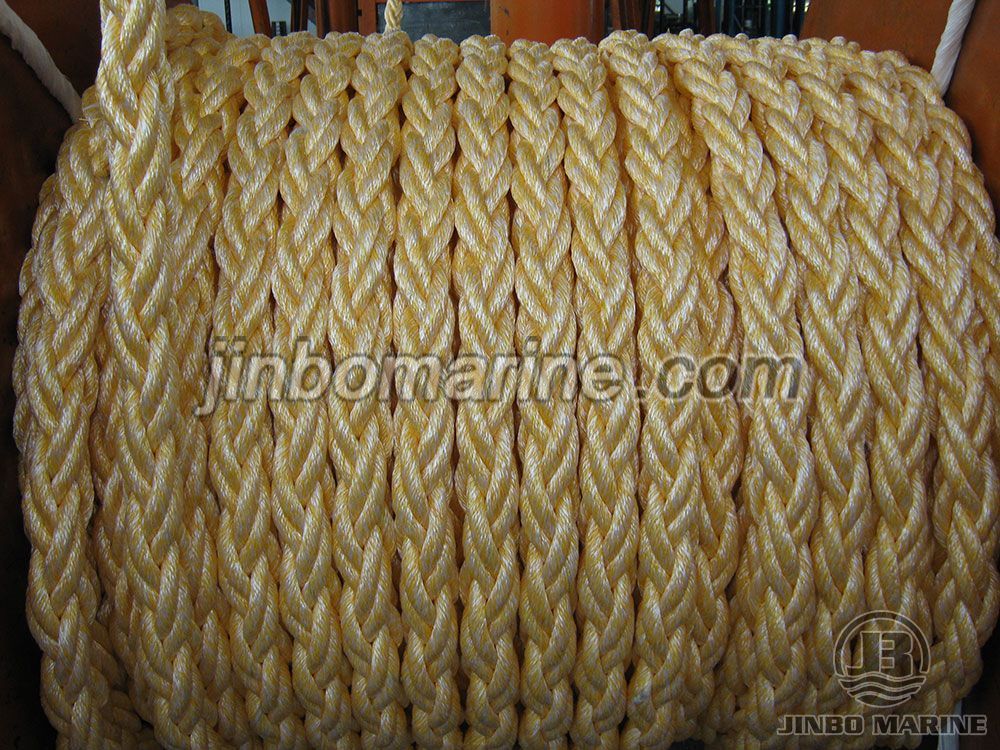

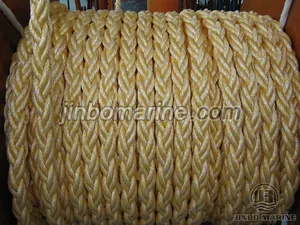

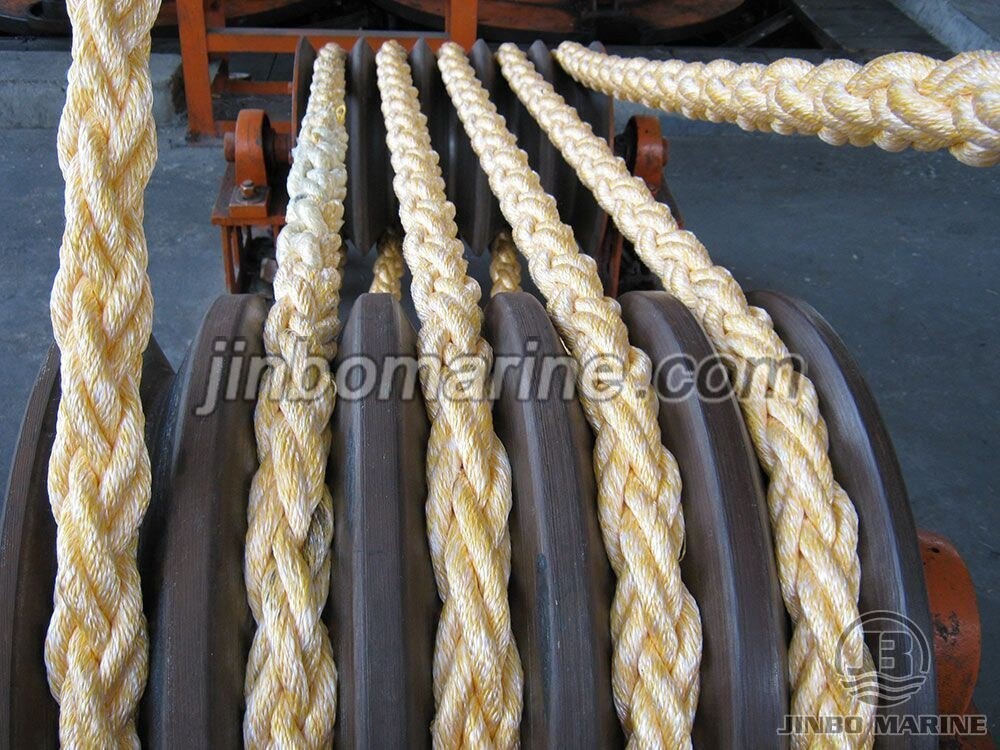

High Strength Polypropylene And Polyester Mixed Rope
- Category:Mooring Rope
- Material:Polypropylene And Polyester Mixed Rope
- Certificate:CCS,BV,ABS,LR,NK ETC
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China High Strength Polypropylene And Polyester Mixed Rope:
It is a high tenacity rope, mixed by polypropylene and polyester rope, its perfect comninmation and construction creats the rope with much lower elongation, when we use it,it make sure the rope have better stability and safety.
Main Performance:
Conform to OCIMF guidelines.
Construction:24 strand plaited.
Spec density: 0.98 floating.
Melting point: 165 ℃/ 260℃
Abrasion resistance: very good.
UV resistance: good.
Working Temperature: 70℃ maximum
Chemical resistance: Good. Slight reaction to solvents and strong oxidant
Parameter Table:
| Diameter | Circumference | Weight | Breaking Strength | |||
| mm | Inch | Inch | KGS/100 meter | LBS/100 feet | kg | KN |
| 24 | 15/16“ | 3“ | 33 | 22 | 13475 | 132 |
| 28 | 1 1/8“ | 3 1/2“ | 45 | 30 | 17895 | 176 |
| 32 | 1 1/4“ | 4“ | 58 | 39 | 22961 | 226 |
| 36 | 1 7/16“ | 4 1/2“ | 73 | 49 | 28567 | 281 |
| 40 | 1 9/16“ | 5“ | 90 | 60 | 34496 | 339 |
| 44 | 1 3/4“ | 5 1/2“ | 107 | 72 | 10964 | 402 |
| 45 | 1 25/32“ | 5 5/8“ | 112 | 75 | 43120 | 424 |
| 48 | 1 7/8“ | 6“ | 129 | 87 | 47432 | 465 |
| 52 | 2 1/16“ | 6 1/2“ | 147 | 99 | 54978 | 539 |
| 56 | 2 1/4“ | 7“ | 175 | 118 | 63602 | 624 |
| 60 | 2 3/8“ | 7 1/2“ | 196 | 132 | 72226 | 708 |
| 64 | 2 1/2“ | 8“ | 221 | 149 | 80850 | 793 |
| 68 | 2 11/16“ | 8 1/2“ | 249 | 167 | 90552 | 889 |
| 72 | 2 7/8“ | 9“ | 278 | 187 | 101332 | 994 |
| 80 | 3 5/32“ | 10“ | 342 | 230 | 122892 | 1206 |
| 88 | 3 7/16“ | 11“ | 412 | 277 | 148764 | 1460 |
| 96 | 3 13/16“ | 12“ | 490 | 329 | 175714 | 1724 |
| 112 | 4 7/16“ | 14“ | 661 | 444 | 238238 | 2338 |
| 120 | 4 3/4“ | 15“ | 759 | 510 | 272734 | 2675 |
