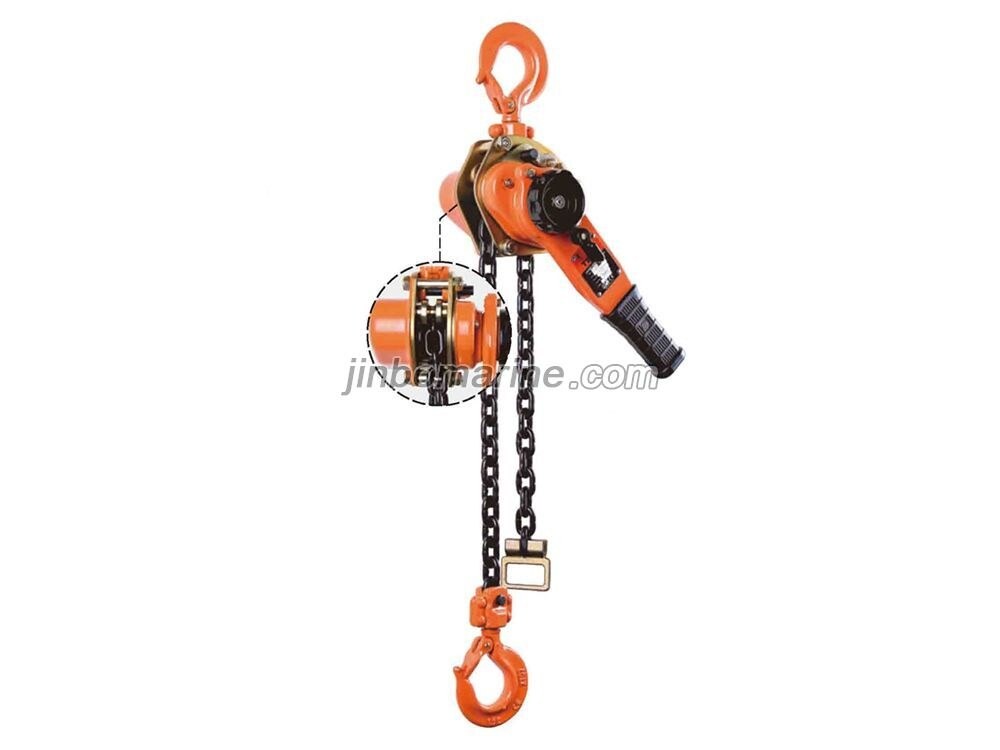

HSH-A820 Serie Level Hoist
- Category:Marine Hoist
- Material:G80 Chain
- Supply Ability:7~20 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China HSH-A820 Serie Level Hoist:
Standard Features:The design is in accordance with EN13157 standard,it meets all pertinent world standards.
High strength steel frame and gear case build to be durable for rugged needs of construction and maintenance rigging.
360 degree handle rotation with short stroke to ratchet loads.
Equipped with wide throat top and bottom drop forged hooks that are designed to bend slowly to warn of overloads.Load chain is alloy steel grade 80 accord with ISO16877 standard.
Optional features:.Caged ball bearing on load sheaves.
Cast safety latches.
Thrust bearing in bottom hook assembly.
Load chain is alloy steel grade 80 accord with EN818-7 standard.
Special surface treatment of spare parts.
High strength steel frame and gear case build to be durable for rugged needs of construction and maintenance rigging.
360 degree handle rotation with short stroke to ratchet loads.
Equipped with wide throat top and bottom drop forged hooks that are designed to bend slowly to warn of overloads.Load chain is alloy steel grade 80 accord with ISO16877 standard.
Optional features:.Caged ball bearing on load sheaves.
Cast safety latches.
Thrust bearing in bottom hook assembly.
Load chain is alloy steel grade 80 accord with EN818-7 standard.
Special surface treatment of spare parts.
| Model | H005-A820 | H0075-A820 | H010-A820 | H015-A820 | H020-A820 | H030-A820 | H060-A820 | H090-A820 | |
| Capacity | Tons | 0.5 | 0.75 | 1 | 1.5 | 2 | 3 | 6 | 9 |
| Load Chain | mm | 6x18 | 6x18 | 6x18 | 8x24 | 8x24 | 10x30 | 10x30 | 10x30 |
| Strands of load chain | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 3 | |
| Strands of lift | mm | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Load chain distance by rotating the hand wheel one circle | mm | 19.8 | 19.8 | 19.8 | 21.3 | 21.3 | 16.8 | 8.4 | 5.6 |
| Effort required to lift rated load | N | 180 | 270 | 360 | 295 | 393 | 335 | 370 | 420 |
| Running test load | KN | 6.13 | 9.2 | 12.3 | 18.4 | 24.5 | 36.8 | 73.5 | 110.3 |

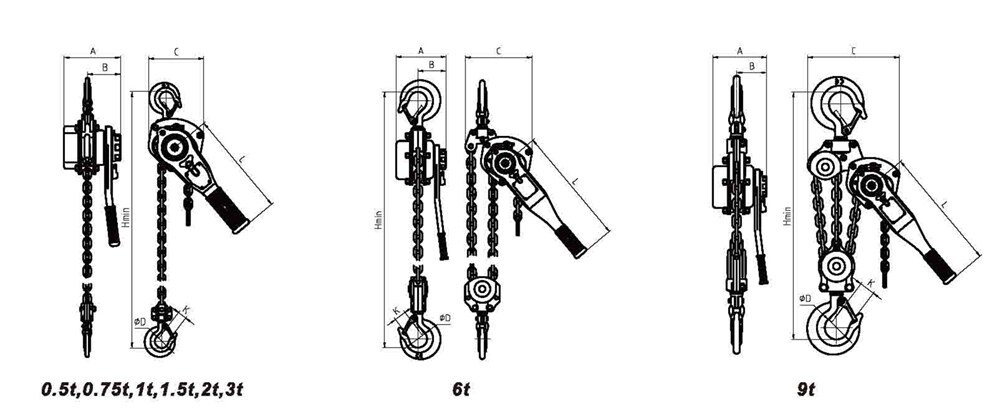

| Dimensions(mm) | A | 158 | 158 | 158 | 176 | 176 | 198 | 198 | 198 |
| B | 97.5 | 97.5 | 97.5 | 102 | 102 | 112 | 112 | 112 | |
| C | 135 | 135 | 135 | 162 | 162 | 211 | 254 | 319 | |
| D | 34 | 40 | 40 | 45 | 50 | 55 | 65 | 85 | |
| Hmin | 300 | 320 | 320 | 380 | 380 | 480 | 620 | 700 | |
| L | 250 | 250 | 250 | 270 | 270 | 430 | 430 | 430 | |
| K | 21 | 26 | 26 | 30 | 30 | 38 | 44 | 50 | |
| Extra weight per meters of extra lift | 0.8 | 0.8 | 0.8 | 1.4 | 1.4 | 2.2 | 4.3 | 6.5 | |
| Net weight | 6.8 | 7.3 | 7.3 | 10.6 | 10.9 | 20 | 29 | 42.4 | |
